Preparing
8

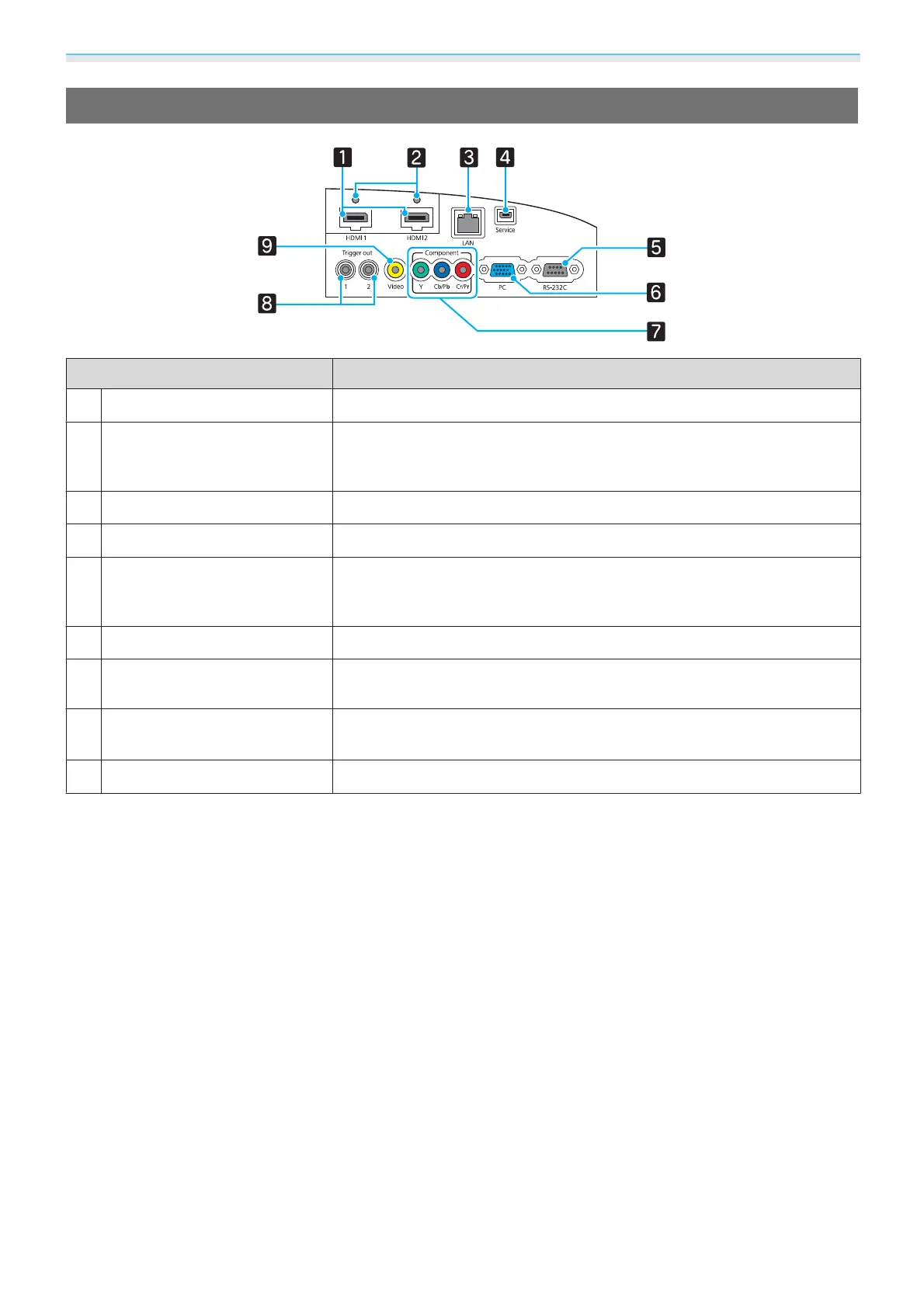

Interface
Name Function
a
HDMI1/HDMI2 ports
Connects HDMI compatible video devices and computers. s p.21
b
Cable holders
Insert the supplied HDMI cable clamp. Because thick HDMI cables with a
large outer diameter, may disconnect easily due to the weight of the cable,
secure the cables with the HDMI cable clamp.
s p.21, p.22
c
LAN port
Connects a LAN cable to connect to a network. s p.24
d
Service port
This port is a service port and should not normally be used.
e
RS-232C port
When controlling the projector, connect the projector to a computer with
an RS-232C cable. This port is for control use and should not normally be
used.
f
PC port
Connects to the RGB output port on a computer. s p.22
g
Component ports
Connects to the component (YCbCr or YPbPr) output ports on video de-
vices.
s p.21
h
Trigger out 1/Trigger out 2
ports
Connects with external devices such as motorized screens. s p.22
i
Video port
Connects to the composite video output port on video devices. s p.21
To Next Page
