Epson SC-S70600 Series User Manual

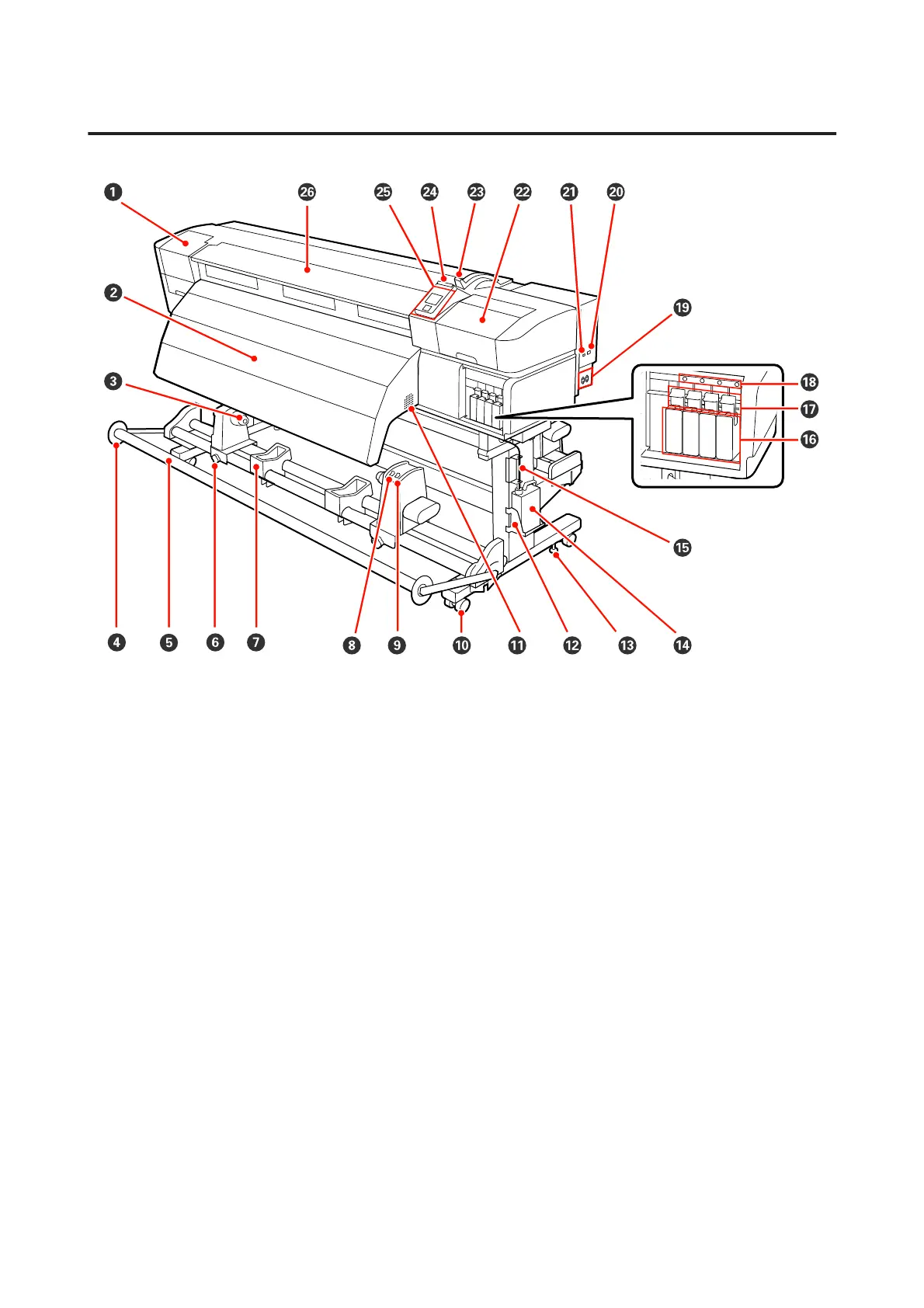

Front section (SC-S30600 series)
A Maintenance cover (left)
Open this cover to clean the area around the print head. Normally closed when using the printer.
U “Cleaning Around the Print Head (Daily)” on page 103
B After heater
The heater can be used to rapidly dry ink after printing.
U “Heating & Drying” on page 85
C Roll core holder
Place the roll core for media take-up on these holders. There are same parts on both the left and the right.
U “Using the Auto Take-up Reel Unit” on page 67
D Tensioner media guide
The tensioner media guide prevents the take-up roll from skewing when using the auto take-up reel unit. When not
using the auto take-up reel unit, move the guide out of the way toward both edges of the tensioner.
U “Using the Auto Take-up Reel Unit” on page 67
E Tensioner
The tensioner maintains tension to prevent the media sagging as it is taken up.
