❏ Pressing this button when a menu item is highlighted
displays options for the selected item.
❏ Pressing this button when an option is highlighted
selects the highlighted item or performs the selected
operation.
❏ Pressing this button while the alert buzzer is sounding
stops the buzzer.
J
button (heating/drying button)
Pressing this button displays the Heating & Drying
menu, where you can adjust the Heater
Temperature. If the additional print drying system
(supplied with the SC-S50600 series; optional with
other models) is attached, you can also adjust
Additional Dryer settings. These options can be
adjusted during printing.
U “Heating & Drying” on page 89
K # button (maintenance button)
Pressing this button displays the Maintenance menu
on the screen to perform Nozzle Check, Cleaning,
Ink Circulation, Ink Refresh, Head Maintenance,
Waste Ink Counter, Head Washing, and
Pre-Storage Maint. This button is disabled during
printing.
U “The Maintenance Menu” on page 151
L W button (pause/cancel button)
❏ The printer enters pause status if this is pressed while
printing. To release the pause status, press the W
button again, or select Pause Cancel on the screen
and then press the Z button. To cancel print jobs
being processed, select Job Cancel on the screen and
then press the Z button.
❏ Pressing this button when menus are displayed closes
the menus and returns the printer to ready status.
M
button (media feed button)
❏ When the printer is in the ready state, you can feed the
media to the cut position by pressing this button and
then Z.
U “Cutting Media” on page 64
❏ When printing is in progress, you can use this button
to perform feed adjustment.
U “Feed Adjustment” on page 90

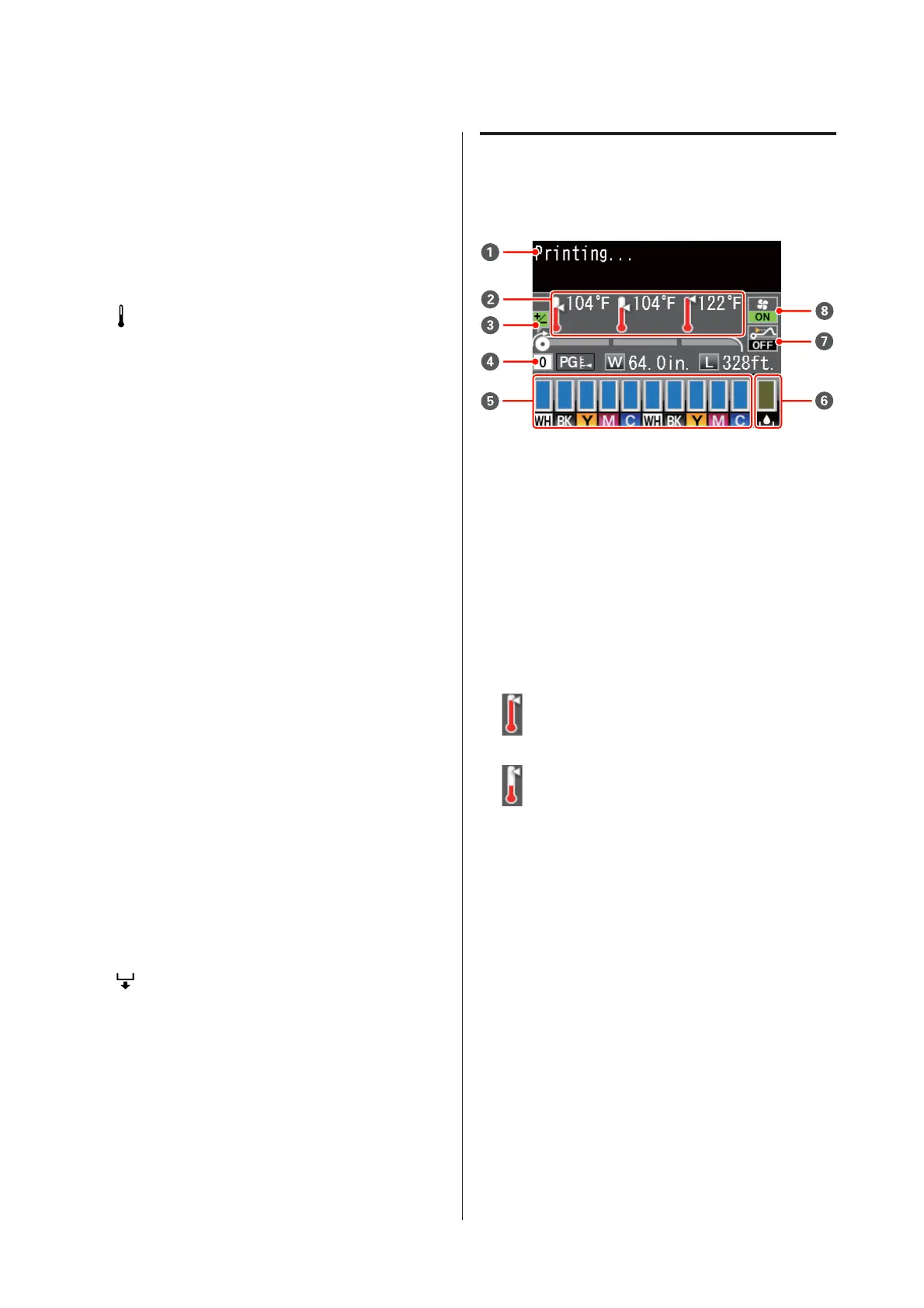

Understanding the Display
The illustration shows the display for the SC-S50600
series.
A Messages
Displays the printer's status, operation, and error
messages.
U “When a Message is Displayed” on page 156
B Heater temperature
From left to right, this display shows the temperature
settings for the pre-heater, platen heater, and after
heater. The thermometer icons give a rough indica‐
tion of the current temperatures of the heaters.
: The heater has reached the selected
temperature.
: The heater has not reached the selected
temperature.
C Feed adjustment information during printing
This information is displayed when the adjustment
value is specified during printing.
U “Feed Adjustment” on page 90
D Media info
❏ From left to right, this display shows the selected
media, platen gap, media width, and media
remaining.
❏ If a media setting bank number registered with this
printer is selected as the print media, the number
(from 1 to 30) will be displayed. When RIP Settings is
selected, 0 will be displayed.
❏ The selected platen gap is shown as follows.
