F Wiper cleaner
The wiper cleaner removes ink from the wiper. This is a consumable; replace about once every three months.
U “Replacing the Wiper and Wiper Cleaner” on page 120
G Caps
Except during printing, these caps cover the print head nozzles to prevent them drying out. We recommend that
this unit be cleaned at the end of each workday.
U “Cleaning Around the Caps (Daily)” on page 106
H Wiper
The wiper removes ink from the print head nozzles. We recommend that this unit be cleaned at the end of each
workday. This is a consumable; replace about once every three months.
U “Cleaning Around the Caps (Daily)” on page 106
U “Replacing the Wiper and Wiper Cleaner” on page 120
I Flushing pad
Ink is discharged onto this pad during flushing. This is a consumable; replace about once every three months.
U “Replacing the Flushing Pad” on page 122

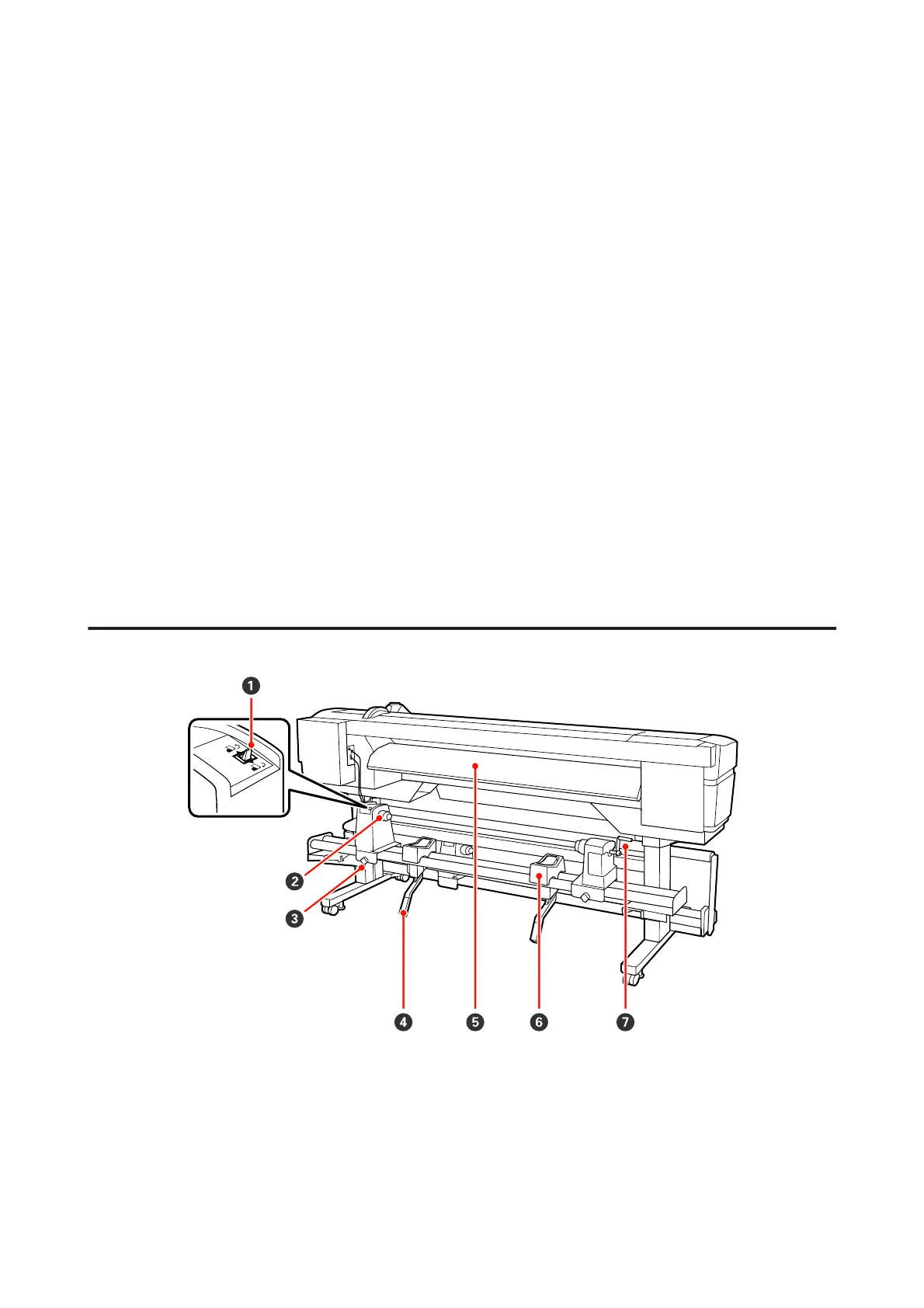

Back
A Drive switch
The drive switch is used to feed the media during loading and to rewind the media for replacement.
B Roll holder
Place media on these holders. There are same parts on both the left and the right.
EPSON SC-S70600 series/SC-S50600 series/SC-S30600 series User's Guide
Introduction
17
