1.4.6. Connection settings

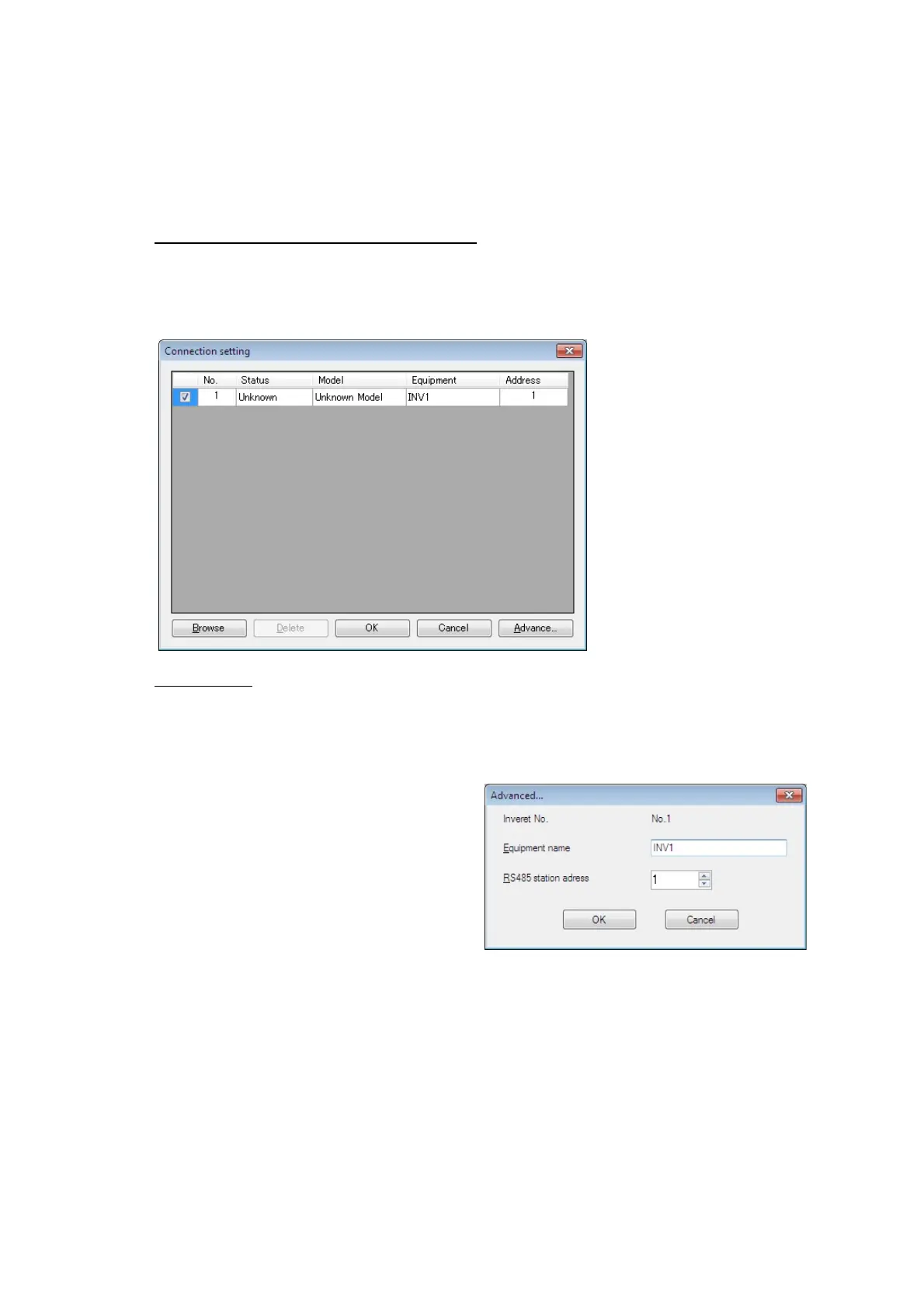

Click COM setting | Connection Setting to display the Connection Settings screen.
[ 1 ] For connection to USB port
When "USB: Data in inverter" is selected
Only a single line appears as shown below. After making sure that the equipment name and
RS-485 num. (station address) are correct, click the Browse button to monitor the current
communications link status.
Selection of inverters to be
monitored
To make an inverter enable to
be monitored, put a check
mark (
) in the box located at
the left end column of the list.
Browse
Clicking this button checks
whether a link between
Loader and the inverter is
established. The result
appears in the Status column.
Status column
- Unknown : The communications status has been unknown.
- Connecting : The communications link has been established.
- Disconnected : The communications link has not yet been established.
Advance…
Clicking the row to be modified and clicking
this Advance button calls up the Advanced
dialog shown at the right.
Clicking the OK button returns to the Device
connection list window.
After completion of data entry, check the settings again and click OK to exit the device
connection operation.
