Chapter 2 Description of Functions
55
[ 7 ]

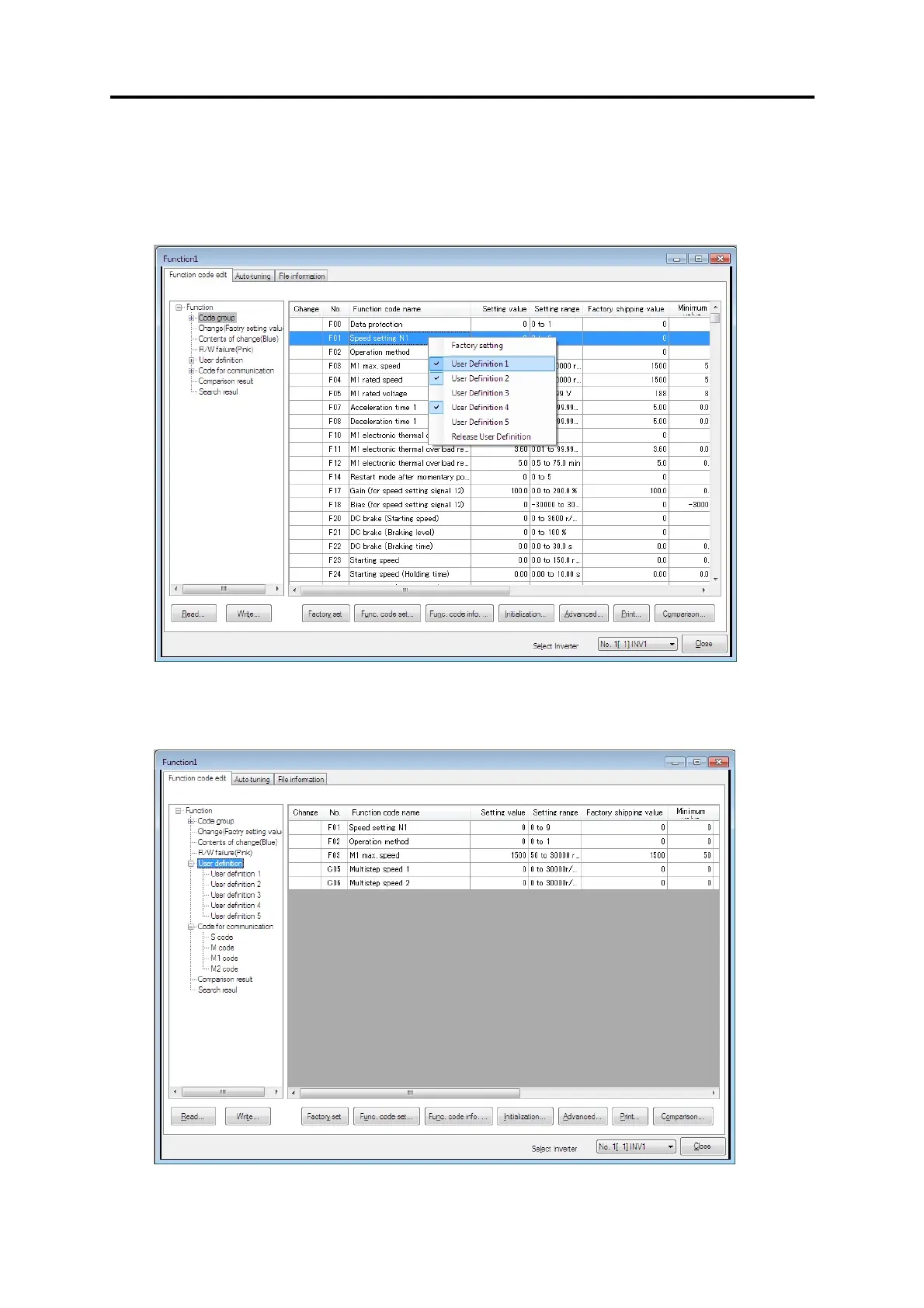

User Definition (Display desired function codes only)
Select the function code from the Edit List windo
w and right-click it to display the windo
w related
to “User Definition”.
Select one of User Definition
1 to 5 and left-click it to register the selected
function code to “User Definition”.
Select any one of User Definition 1 to 5 from the tree in the left pane of the Edit List tab. Then,
the registered function codes will be listed.
