[ 1 ] Read Waveform Data
You can read the trace back waveform data saved in the memory within the inverter.
Follow the steps below:

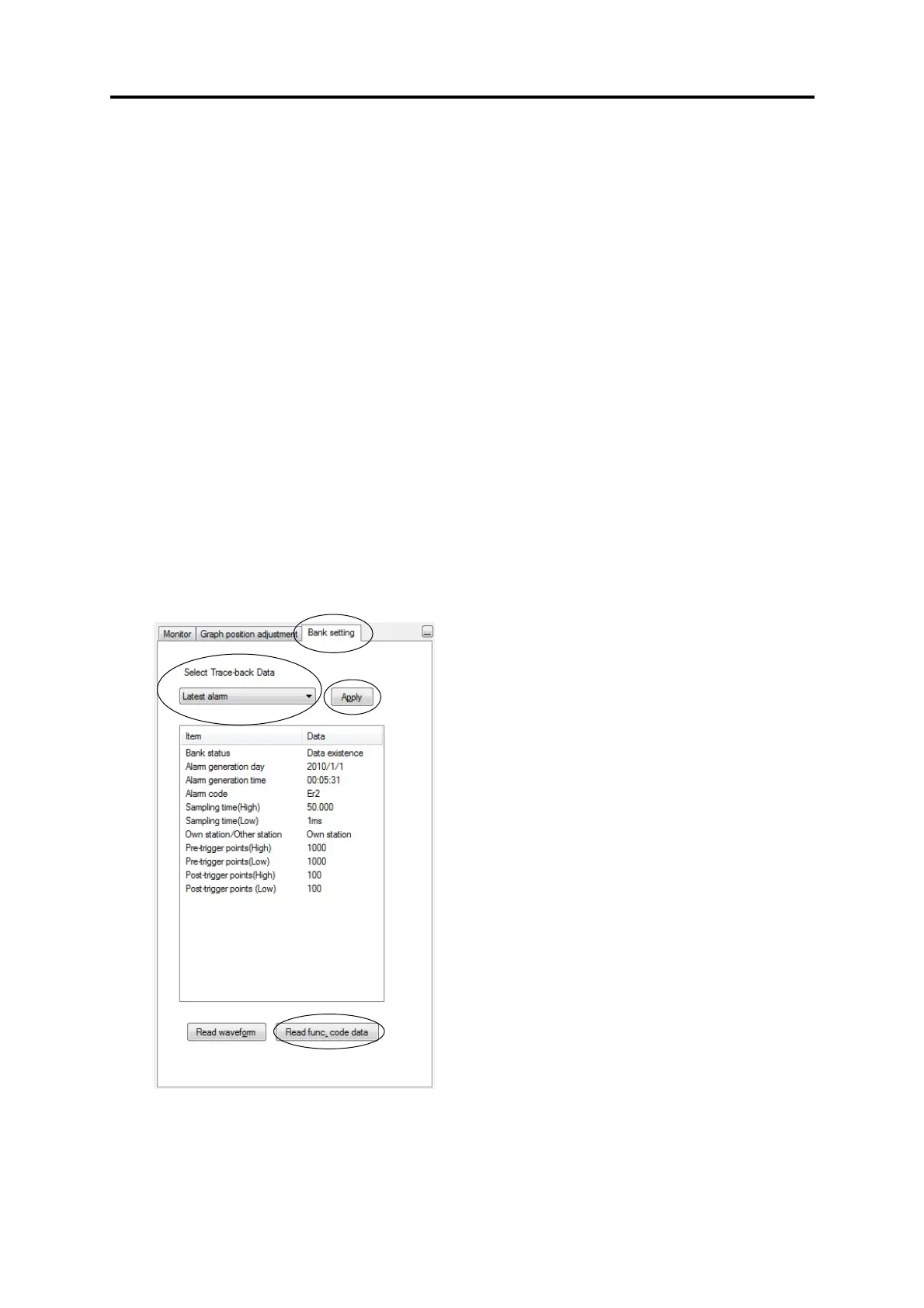

(1) Select [Bank Setting] tab.
(2) Select the alarm to be read from [Select Trace Back Data] up to the past three times and
click [Update] button.
(3) The alarm information saved in the inverter appears. If the contents are OK, click [Read
Waveform] button.
[ 2 ] Read Function Code Settings (during Trace Back)
You can read the function code setting values when trace back waveform data is saved.
Follow the steps below:
(1) Select [Bank Setting] tab and select the alarm to be read from [Select Trace Back Data] up
to the past three times.
(2) Click [Update] button.
(3) The alarm information saved in the inverter appears. If the contents are OK, click [Read
Function Code] button.
