[ 3 ]

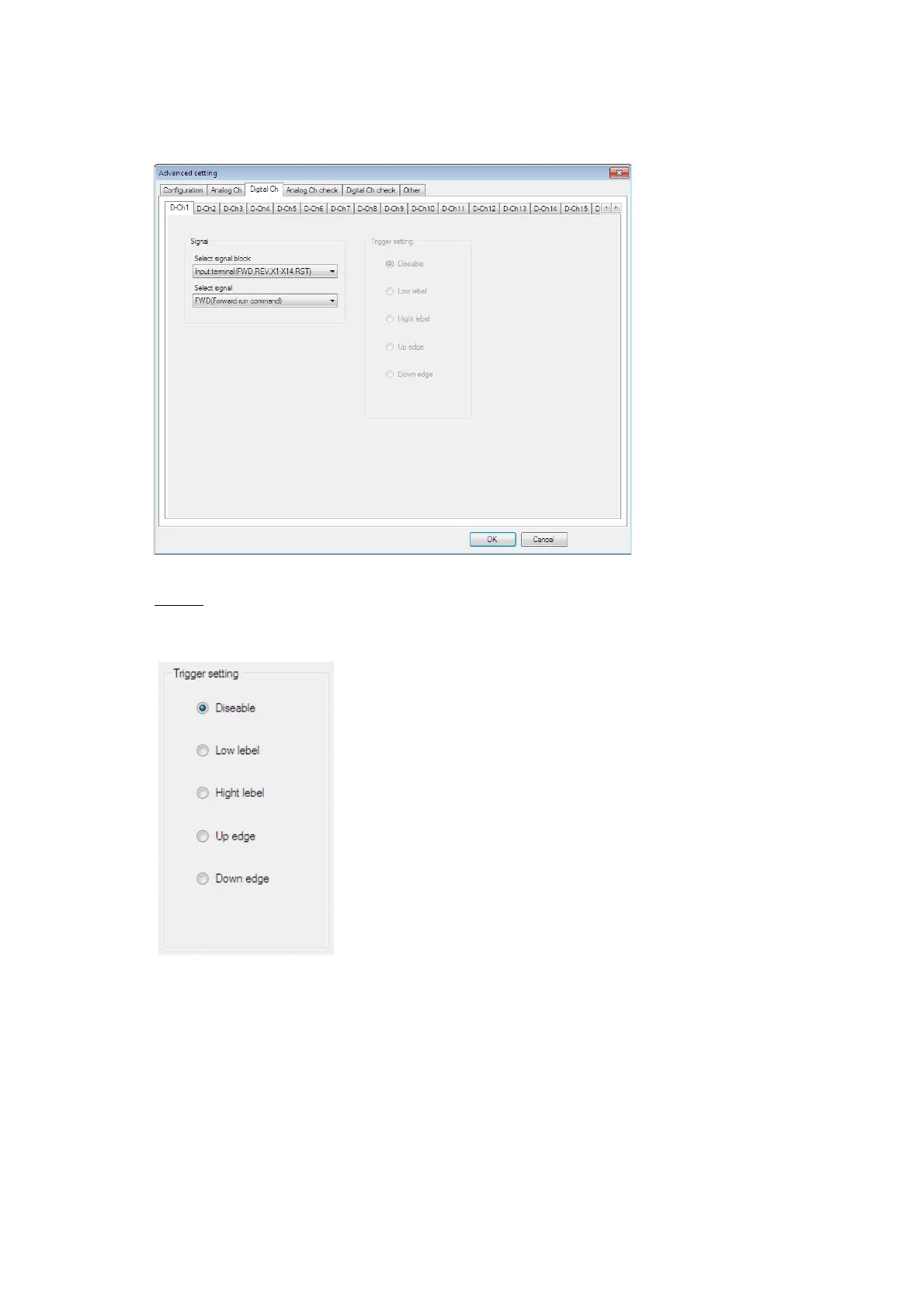

Ch1 to Ch16 (digital setting)
You can set the digital channels.
Trigger
Specify the trigger for each channel a
s shown below.
Trigger setting
Select Low level, High level, Rising edge
(
) or Falling edge (
).
For a digital channel, specifying more th
an one trigger is possible.
Triggers can be ORed or ANDed in detection.
(Refer to "[ 4 ] Other settings" in this section.)
84
89
91
Table of Contents
default chapter
3
Preface
3
Table of Contents
4
Chapter 1 Before Using FRENIC Loader VG
7
Overview
7
Features
7
Warranty
7
Connecting Inverters to a PC
8
Connection
8
Configuring USB Network
9
Example of Networking
9
Configuring an RS-485 Communications Network
10
Example of Networking
10
Communications Support Devices for RS-485
11
Noise Suppression
11
Installation
12
Installing Software
12
Installing FRENIC Loader VG
13
1 ] Windows 7 / Windows Vista
13
2 ] Windows XP
17
Installing Message Manager
21
Installing USB Driver
24
1 ] Windows 7
24
2 ] Windows Vista
27
3 ] Windows XP
30
Checking the Installation of the USB Driver
32
Uninstallation
33
Uninstalling FRENIC Loader VG
33
1 ] Windows 7 / Windows Vista
33
2 ] Windows XP
34
Before Uninstalling Message Manager
35
1 ] Windows 7
35
2 ] Windows Vista / XP
36
Uninstalling Message Manager
36
1 ] Windows 7 / Windows Vista
36
2 ] Windows XP
37
Configuring the Settings for Inverter(S) and Loader
38
Configuring Communication-Related Function Codes in the Inverter (Case of RS-485 Connection)
38
Checking the COM Port on the PC (When Using a Communications Level Converter)
39
Loader Start
40
Configuring Loader
42
Communication Settings
43
1 ] Connection Methods
43
2 ] Connection ID
43
3 ] Port
44
4 ] Communication Conditions
45
5 ] Perform Connection Check
45
Connection Settings
46
1 ] for Connection to USB Port
46
2 ] for Connection to RS-485 Port
47
3 ] for Connection to Communication Board (Ethernet)
48
Chapter 2 Description of Functions
49
Main Window
49
File
50
Create New File
50
Open
50
Close
51
Save
51
Save as
51
Print
51
Print Preview
52
Page Setup
52
End
52
Menu
53
Function Code Setting
53
Create New Function Setting
53
Read File from the File
53
Read from the Inverter
53
Edit List
54
1 ] Read the Function Code Setting Values from the Inverter
55
2 ] Write the Function Codes from the Loader to the Inverter
55
3 ] Change the Setting Value
56
4 ] Save
57
5 ] Print
59
6 ] Compare
60
7 ] User Definition (Display Desired Function Codes Only)
61
8 ] Search (Search Function Code Terminologically)
64
Auto Tuning
65
File Information
66
Read and Write (SF Code) Code Safety Functions
71
Read
71
Write (Unlock Functional Safety Password)
71
Change of the Functional Safety Password
73
Safety Function Code Initialization
74
Trace
75
Trace Back
76
1 ] Read Waveform Data
77
2 ] Read Function Code Settings (During Trace Back)
77
Real-Time Trace
78
Historical Trace
79
Monitor Start, Stop (Only the Real-Time Trace, Historical Trace)
80
Save Trace Data
81
Copy Trace Back Data Screen
81
Print Trace Data
82
Sub Window
83
1 ] Cursor
83
2 ] Adjust Graph Position
84
Waveform Detail Settings
86
1 ] Channel Configuration Setting
86
2 ] Ch1 to Ch8 (Analog Setting)
86
3 ] Ch1 to Ch16 (Digital Setting)
90
4 ] Ch Setting Check (Analog/Digital)
97
5 ] Other Settings (Including Sampling Time Setting)
98
Operation Monitor
100
I/O Monitor (for Control Terminal Input/Output Signal Status of the Inverter)
100
System Monitor (for Current Setup Info and Maintenance Info of Inverter)
101
Alarm Monitor (for Monitor the Alarm Information of the Inverter)
102
Setup
103
Communication Setup
103
Language
103
Date Time
104
View
105
Toolbar
105
Status Bar
105
Window
106
Cascade Windows
106
Tile Windows
107
Tile Windows Vertically
107
Arrange Icons
108
Help
108
Version Information
108
Chapter 3 Frequently Asked Questions (FAQ)
109
Cannot Communicate with Inverter (Failed to Get Inverter Information)
109
Message Manager Not Installed Correctly
109
USB Driver Not Installed Correctly
110
USB Driver Installed Correctly
115
USB Communication Impossible after the PC Has Gone Standby or to Sleep)
116
Chapter 4 Specifications
117
