Chapter 1 Before Using
41
[ 2 ] For connection to RS-485 port
When "RS-485: Data in inverter" is selected

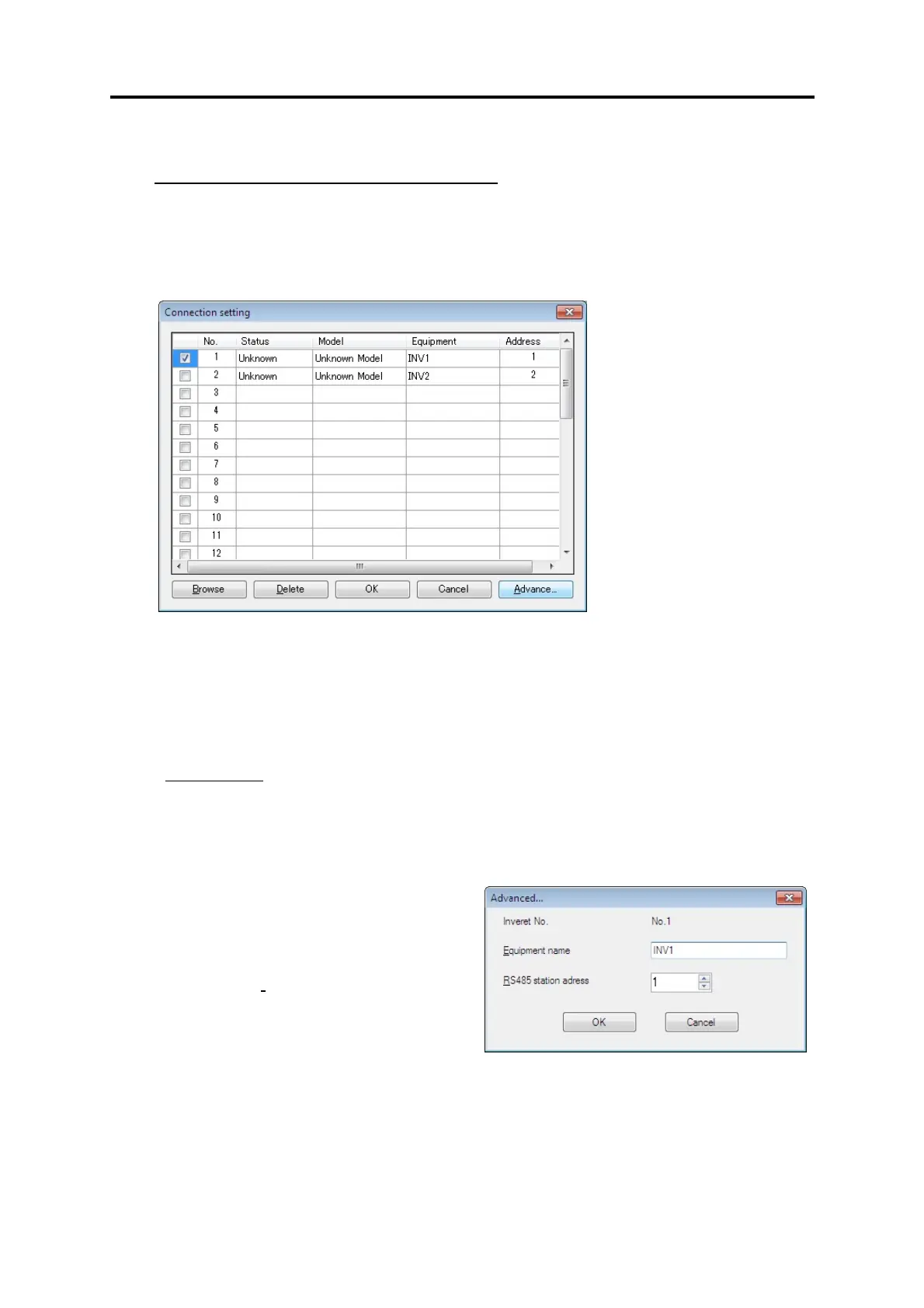

The Device connection list window shows the inverters available for RS-485 communication.
Double-clicking (or use the Advance… button) the row where the inverter to be modified or
added is listed calls up Advanced dialog shown below.
Selection of inverters to be
monitored
To make an inverter enable to
be monitored, put a check
mark (
) in the box located at
the left end column of the list.
Delete
Clicking the row to be deleted and clicking this Delete button deletes the inverter listed in that
row. Use this for the inverter(s) that has been disconnected from Loader.
Browse
Clicking this button checks whether a link between Loader and the inverter(s) (marked with
)
is established. The result appears in the Status column.
Status column
- Unknown : The communications status has been unknown.
- Connecting : The communications link has been established.
- Disconnected : The communications link has not yet been established.
Advance…
Clicking the row to be modified or added and
clicking this Advance button calls up the
Advanced dialog shown at the right.
Fill in the Equi
pment name and RS-485
address (station address) boxes in the
dialog and click OK. To cancel your entry or
selection, click Cancel.
Clicking the OK button returns to the Device
connection list window.
After completion of data entry, check the settings again and click OK to exit the device
connection operation.
To Next Page
