2 Product Overview
38
Product Overview
2

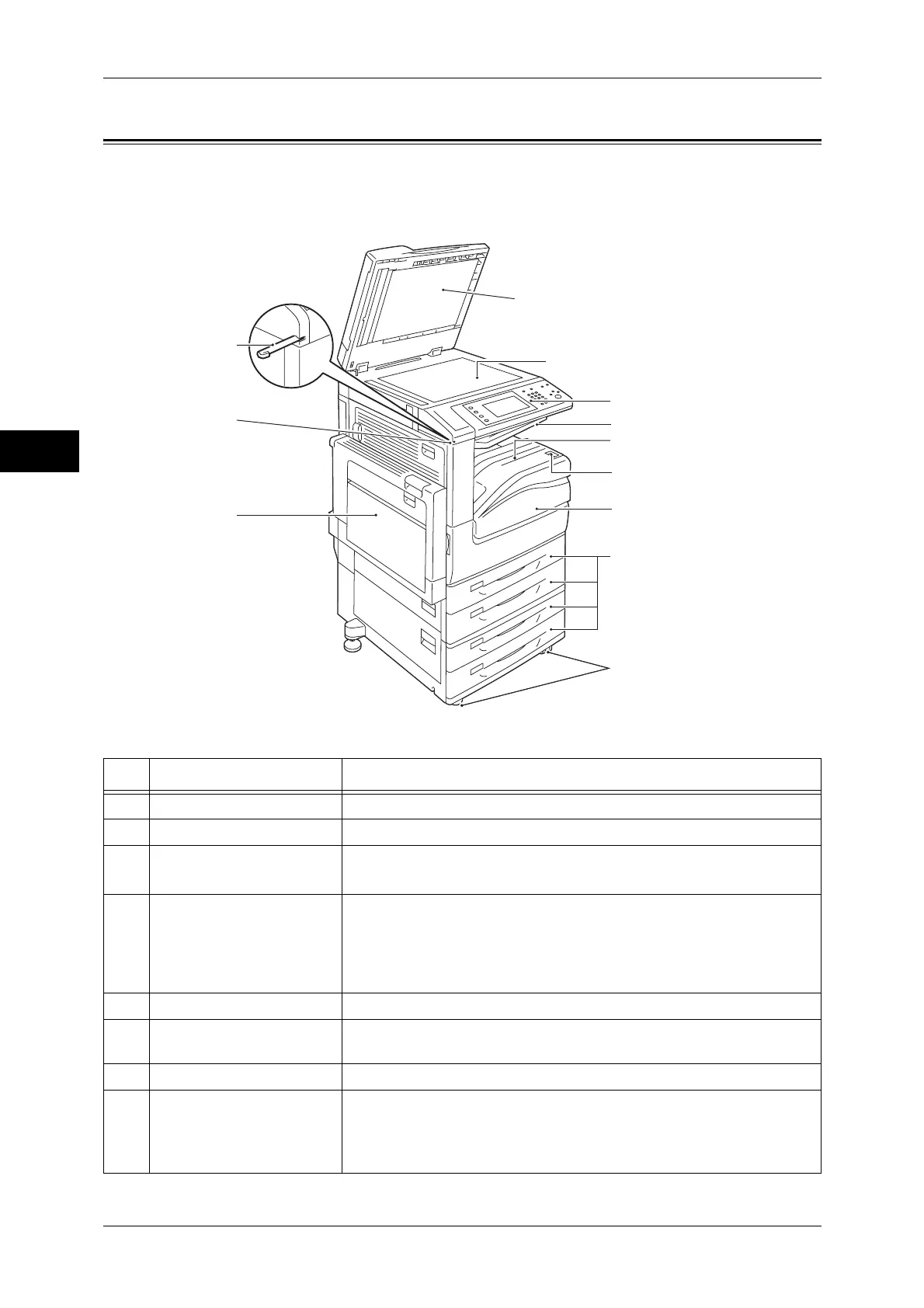

Machine Components
The following describes machine components and their functions.
îš„ 4 Tray Model
No. Component Function
1 Document cover Holds a document in place.
2 Document glass Load a document here.
3 Control panel Consists of operation buttons, LED indicators, and the touch screen.
Refer to "Control Panel" (P.54).
4 Exit 2 Tray Outputs are delivered here by separating the center tray into two levels.
Note • When the Exit 2 Tray is installed, select [Installed] in [Extra Center
Tray] in the System Administration mode. For more information,
refer to "5 Tools" > "Common Service Settings" > "Other Settings"
> "Extra Center Tray" in the Administrator Guide.
5 Lower center tray Copies and prints are delivered here, facing down.
6 Power switch Switches the power of the machine on and off.
Refer to "Power Source" (P.46).
7 Front cover Open this cover to replace the consumables.
8 Tray 1, 2, 3, 4 Load paper here.
Note • The Envelope Tray (optional) can be inserted into the slot for Tray
1. The standard Tray 1 cannot be used when the Envelope Tray is
used.
5
6
7
8
9
10
1
3
4
2
11
12
To Next Page
