1. OPERATIONAL OVERVIEW
1-37
1.31.4 How to show TTG to VRM
TTG (Time To Go) to a selected VRM can be displayed as follows:
1. Open the [MAIN MENU].
2. Select [NAVTOOL], then push the ADJUST knob.
3. Select [EBL•VRM•CURSOR], then push the ADJUST knob.
4. Select [VRM TTG], then push the ADJUST knob.
5. Select [OFF], [1], [2] or [1&2] as appropriate, then push the ADJUST knob.
6. Close the menu.

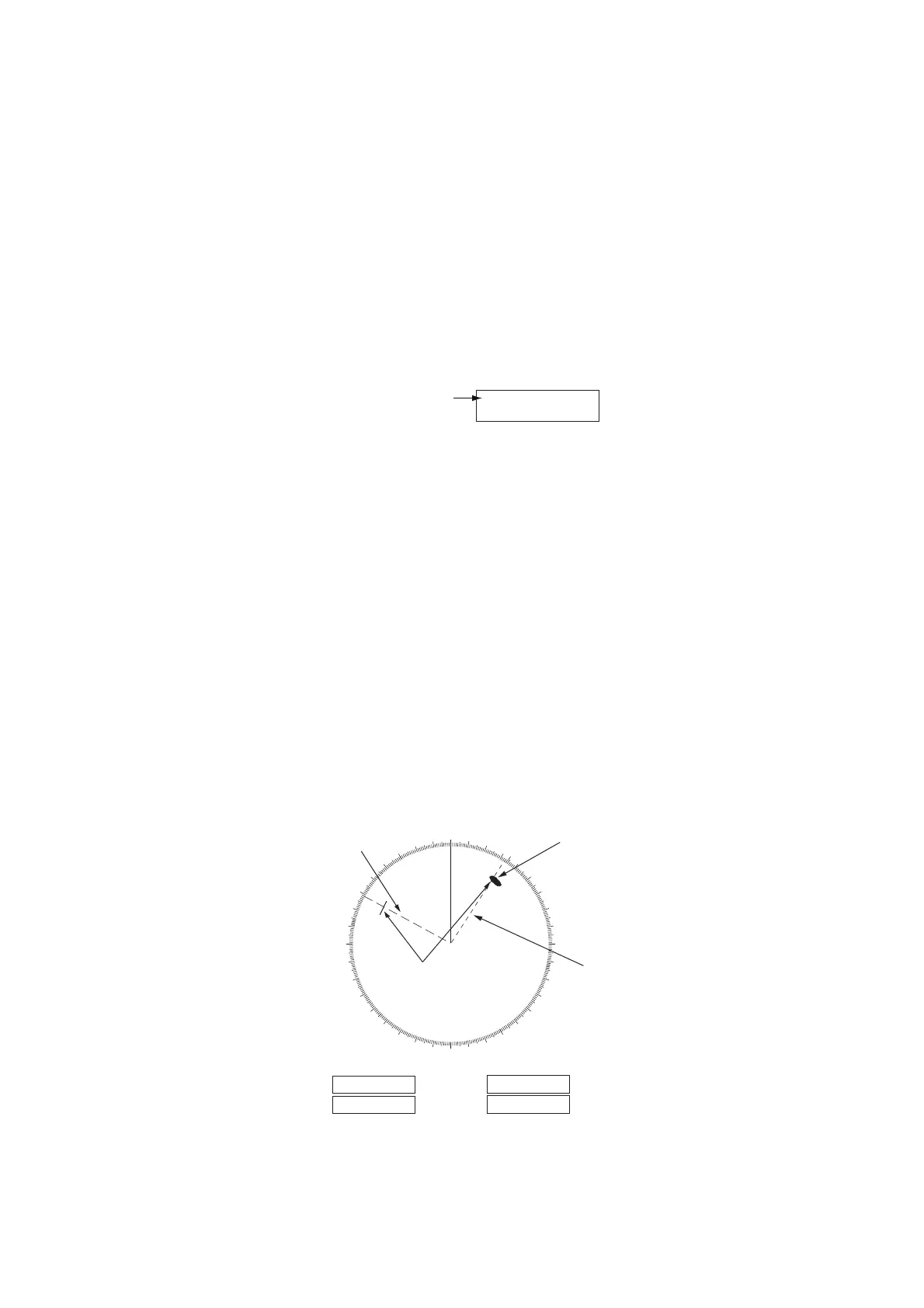

1.32 How to Measure Bearing
The Electronic Bearing Lines (EBLs) are used to take bearings of targets.There are
two EBLs, EBL1 and EBL2. Each EBL is a straight dashed line extending out from the
own ship position up to the circumference of the radar picture. The two EBLs can be
distinguished from each other by the different lengths of their dashes; the dashes on
EBL2 are longer.
Each EBL has an EBRL (Electronic Bearing Range Line, indicated as a short line,
crossing the EBL at right angles). When VRM is not displayed and only EBL is dis-
played, the EBRL shows the range from the EBL origin.
When VRMs are displayed with EBLs the VRM overlaps the EBRL. The value for
EBRL and VRM is the same and is displayed in the VRM box at the bottom-right of the
screen.
• [OFF]:
• [1]:
• [2]:
• [1&2]:
No TTG to VRM displayed.
TTG to VRM1 displayed.
TTG to VRM2 displayed.
TTG to VRM1 and VRM2 displayed.
VRM1
>3.682NM<
01:15
TTG indication
000
010
020
030
040
050
060
070
080
090
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
310
320
330
340
350
No. 2
EBL
Target
blip
No. 1
EBL
Range markers
on EBLs
VRM1
VRM2
12.1
NM
EBL1
EBL2
>128.0
°
T<
100.8
°
T
>10.2
NM
<
