1.39.6 How to change PI line length
You can change the length of the PI lines. This function is only available when [SET
ALL PI LINE] in the [PI LINE] menu is set to [1]. If not already displayed, you can show
PI lines for which you wish to change the length by referring to paragraph 1.39.1.
1. Open the [MAIN MENU].
2. Select [NAVTOOL], then push the ADJUST knob.
3. Select [PI LINE], then push the ADJUST knob.
4. Select [TRUNC RANGE 1], then push the ADJUST knob.
5. Select [ON], then push the ADJUST knob.
6. Rotate the ADJUST knob to adjust the front PI line length. The available range is
0.000 NM to 24.000 NM. All PI lines beyond this mark will be hidden.
7. Select [TRUNC RANGE 2], then push the ADJUST knob.
8. Select [ON], then push the ADJUST knob.
9. Rotate the ADJUST knob to adjust the rear PI line length. The available range is
0.000 NM to 24.000 NM. All PI lines beyond this mark will be hidden.
10. To change the length of other PI lines, activate the line you wish to adjust, then
repeat steps 1 through 9.
11. Close the menu.

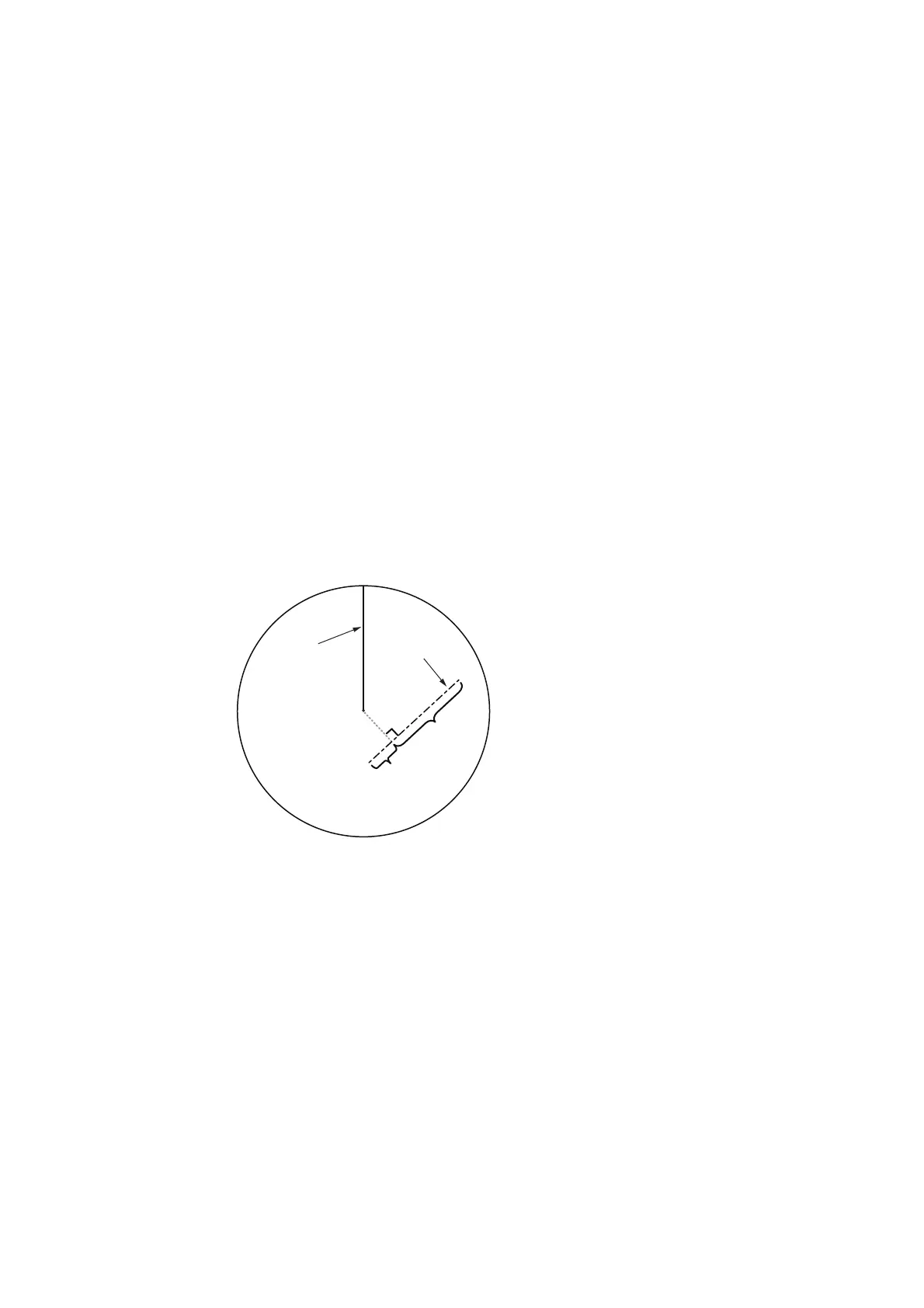

Heading line
PI line
TRUNC RANGE 1 length setting
TRUNC RANGE 1 length setting
TRUNC RANGE 2 length setting
TRUNC RANGE 2 length setting
OS location
