1. OPERATIONAL OVERVIEW
1-56
1.40 Zoom
The zoom function enlarges an area of interest as large as twice the normal viewing
size, in the [INFORMATION BOX]. Zoom can be selected using the control unit or from
a preset function key (see section 1.9 for how to assign functions to the function keys).
Zoom is not available when the [INFORMATION BOX] setting for [TARGET DATA] is
[LARGE].
To enable/disable the zoom magnification, select the appropriate zoom setting
([2TIMES]: Enables magnification at 2u, or [3TIMES]: Enables magnification at 3u)
from the [ZOOM] option in the [INFORMATION BOX] menu. (See section 1.45.)
1. Select the operational display area, then press the right button to display the
[CURSOR] context menu.
2. Select [ZOOM], then push the ADJUST knob.
3. Place the cursor inside the operational display area, then press the left button.
The cursor is now displayed with a zoom box.
4. Place the cursor and zoom box at the location you wish to zoom, then press the
left button.
5. Press the right button to complete the procedure. The selected area is displayed
on the right-side of the screen and the cursor returns to normal shape.
To disable the zoom function, repeat steps 1 to 3. At step 3, the zoom box is removed
from the cursor.
Note: Where the zoom function is assigned to a function key (F1, F2 or F3), press the
function key to cycle through the zoom settings in the following order: [OFF] o
[2TIMES] o [3TIMES] o [OFF]...
This operation works in direct relation with the settings selected from the [ZOOM] op-
tion in the [INFORMATION BOX] menu. To use the zoom function on a different area,
do the procedure (step 1 to step 5) listed above.

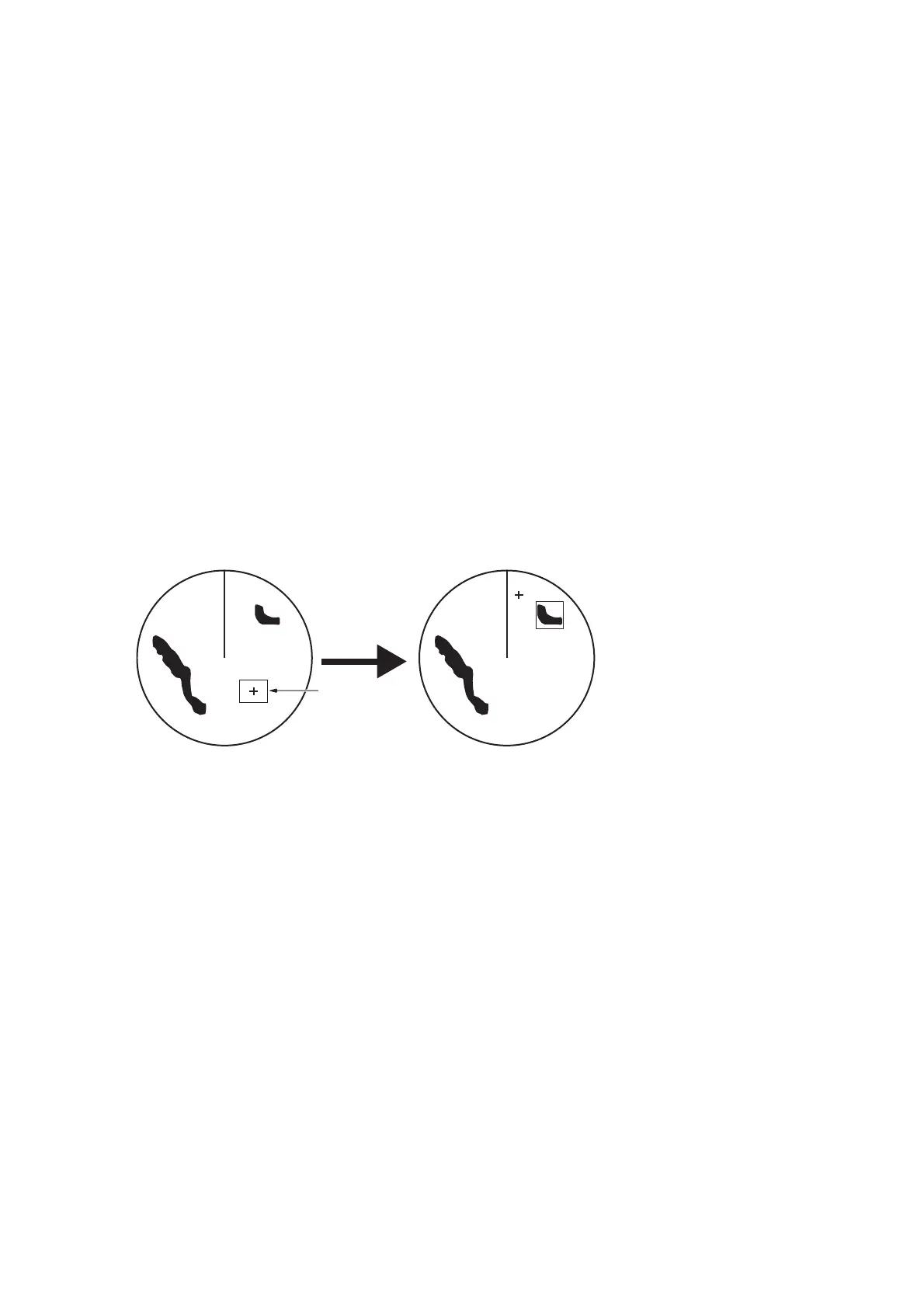

Cursor with
zoom box
Zoom box is placed at
the location to be
zoomed and the cursor
returns to its normal
shape.
