2-42

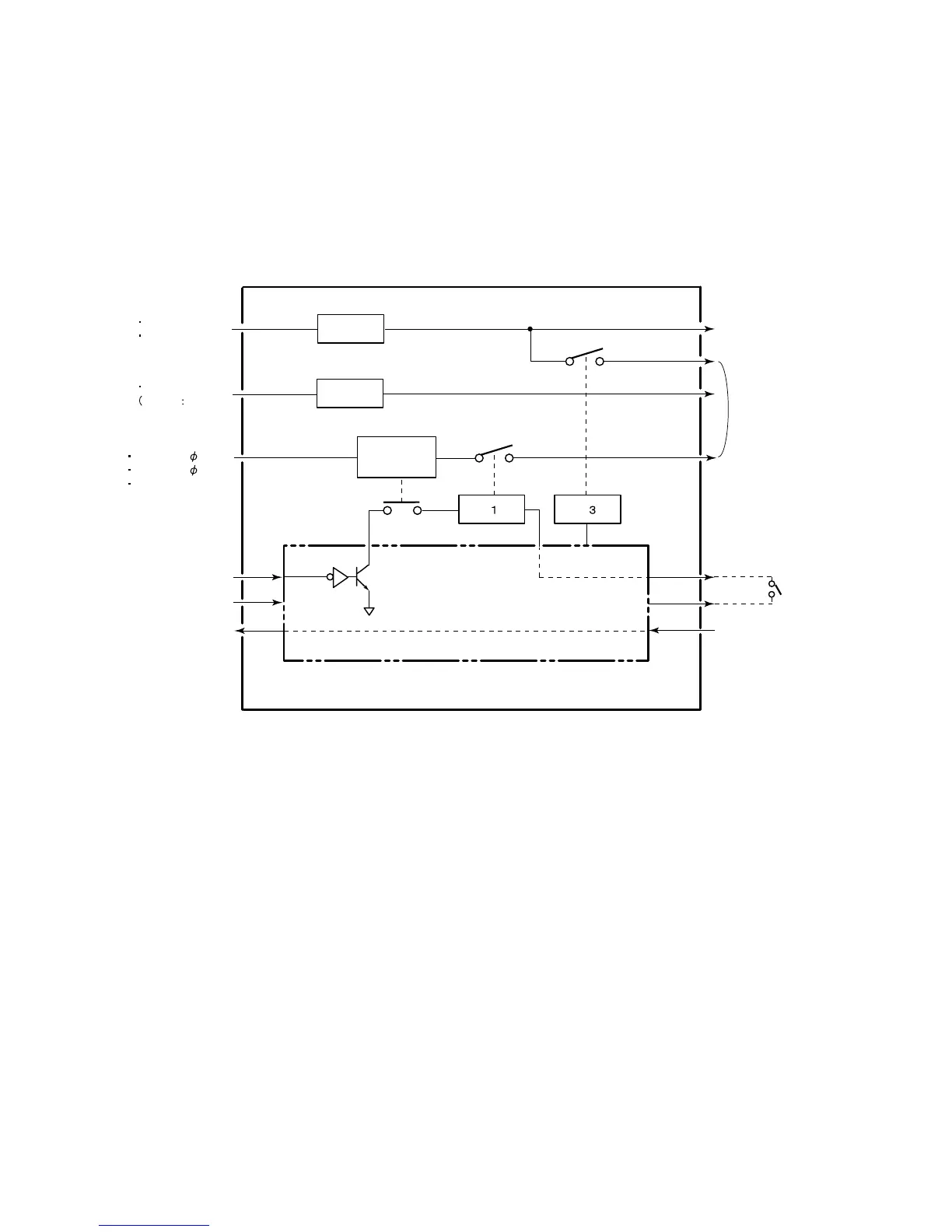

2.37 Power Supply Unit (PSU-004)
With the power switch on the display unit turned on, +12 V is applied from the display unit to
the power supply unit PSU-004 to turn on the relay K3. Ship’s mains is supplied to the tran-
sceiver in the scanner unit with the relay K3 on. ANT1 signal is generated at TX (0 V at TX) and
the relay K3 in the PSU-004 is turned on so that power is applied to the scanner motor. The type
of the thermal relay K2 must be selected according to ship’s mains.
03P9146
100/110/115 VAC
220/230 VAC
100 VAC
Fan Motor
SCANNER MOTOR
220VAC 3 50 Hz
220VAC 3 60 Hz
24VDC
HD/BP
F1/F2, 10A
100 VAC
De-icer option)
K2
(thermal Relay)
F3, 2A
To PSU-001
K K
+12 V
ANT.1
+12V
HD/BP
+12 V
Motor SW
ANT SW
To Next Page
