Furuno FR-2155 User Manual

3-20

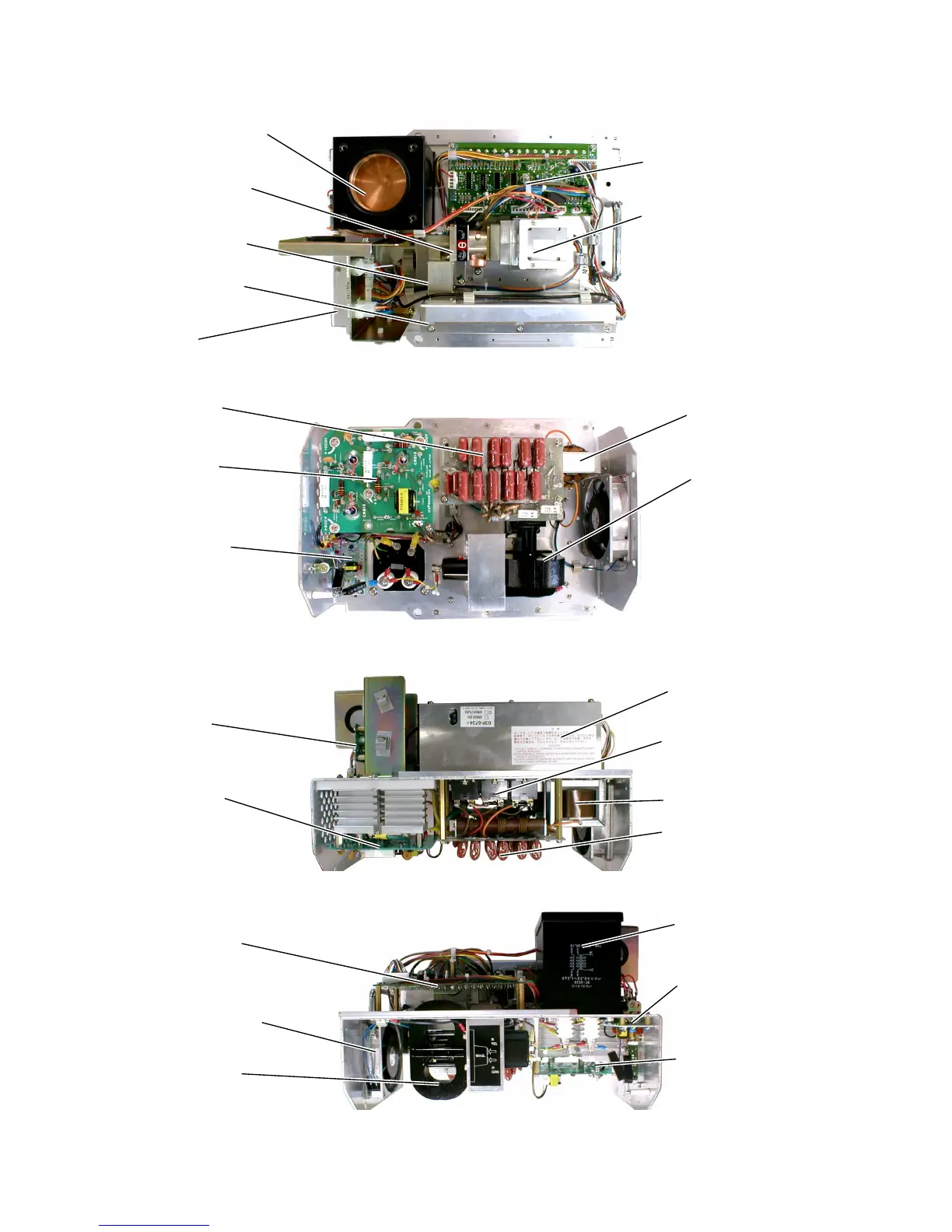

Location of Parts on RF Unit (RTR-030)
RF Unit, Top view
RF Unit, bottom view
RF Unit, Side view
RF Unit, Side view
IF Amp Board
(03P6734C)
Relay
(VF-12HU-UL, ×3)
Coil (RL-9029)
PFN (2) Board
(03P6669)
INT Board
(03P9004)
PFN (1) Board
(03P6668B)
Pulse Transformer
(RT-9028)
TR Limitter
(BS4112/E3902)
MIC (SRX-24)
MIC INT Board
(MIC-6550)
INT Board
(03P9004)
Modulator Board
(03P6666C)
Circulator
(RC-3686)
IF Amp Board
(03P6734C)
PFN (2) Board
(03P6669)
PFN (1) Board
(03P6668B)
Magnetron Cur-
rent DET Board
(03P6827B)
Coil
(RL-9029)
Magnetron
(M-4505E)
Modulator Board
(03P666C)
Fan motor
(MU10258S-11)
Magnetron
(M-4505E)
Pulse Transformer
(RT-9028)
Magnetron Current
DET Board
(03P6827B)
PFN (2 ) Board
(03P6669)
