3-23

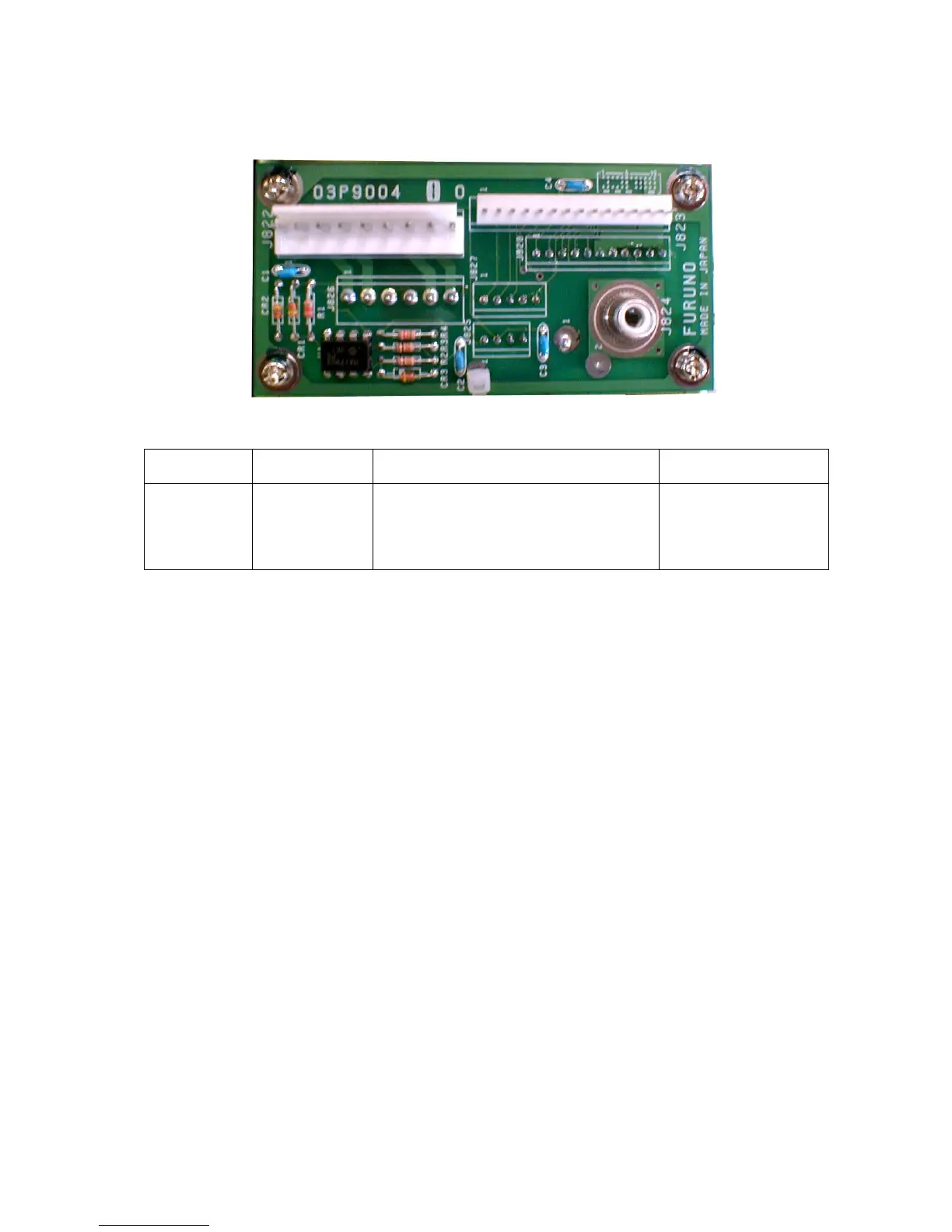

Location of Parts on INT Board (03P9004)
Test point and Ratings
TP No. Signal Rating Condition
J823 #8(+)
#9(-)
MAG CURR
S : 2.5 to 5.5 V
M1: 3.0 to 5.5 V
M2: 5.0 to 7.0 V
L : 5.4 to 7.8 V
TX
