Furuno FR-2155 - Location of Parts on TX-HV Power Supply Board (1)(03 P6810)

3-16

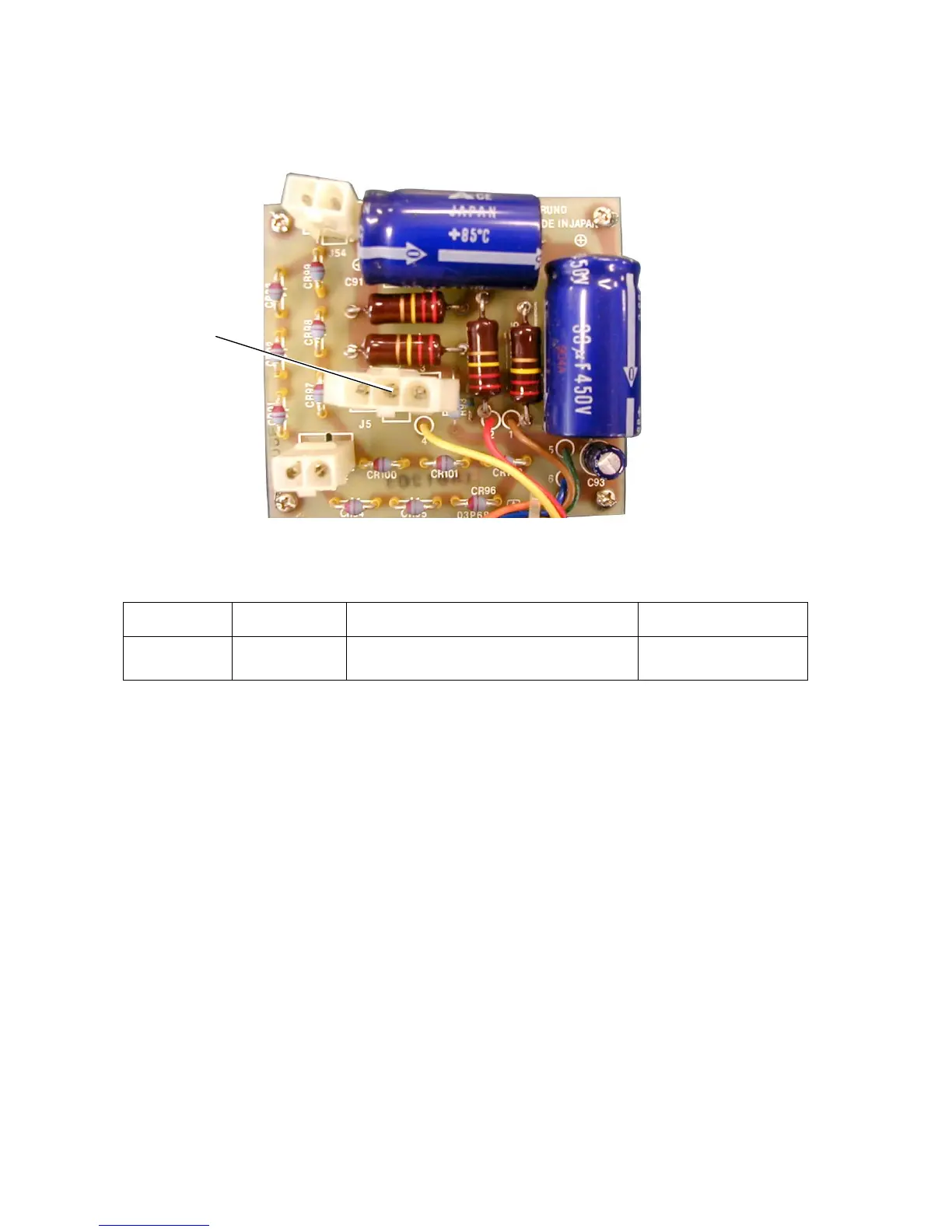

Location of Parts on TX-HV Power Supply Board (1) (03P6810)
Test point and Ratings
TP No. Signal Rating Condition
J5 #1(+)
#2(-)
TX-HV 780 to 800 VDC
TX, 48NM
!
Rating for Check Meter (TX-HV): 0.55 to 0.75
J5
