Furuno FR-2155 User Manual

3-17

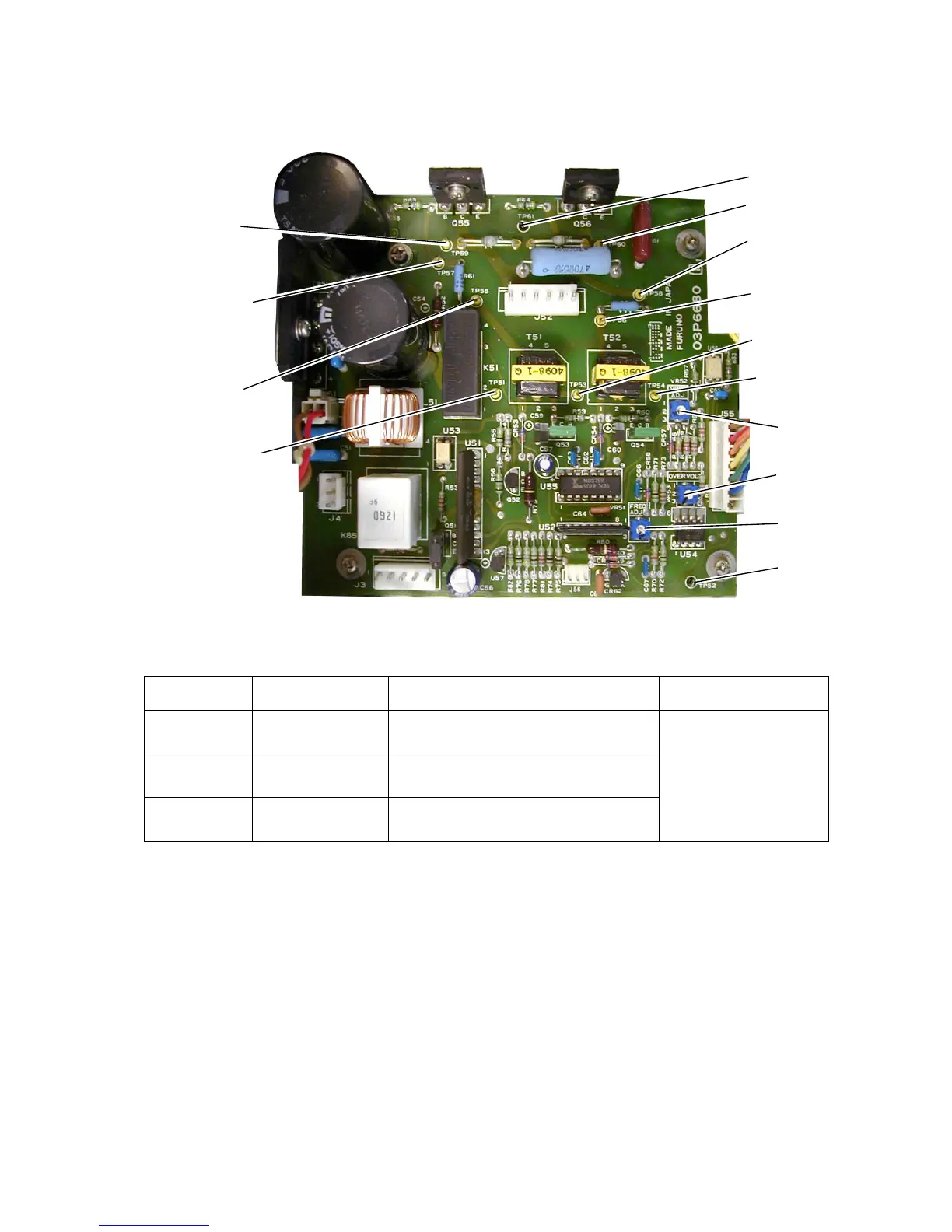

Location of Parts on TX-HV Power Supply Board (2) (03P6680)
Test point and Ratings
TP No. Signal Rating Condition
TP51 (+)
TP52 (-)
+12 V 10.8 to 13.2 V
TP53 (+)
TP52 (-)
Switching Freq.
54 to 57 s(17.5 to 18.5 kHz)
adjusted by VR51
TP54 (+)
TP52 (-)
Switching Freq.
54 to 57 µs(17.5 to 18.5 kHz)
adjusted by VR51
ST-BY, 0.25NM
!
Input Voltage (100/110/115 VAC): 90 to 128 VAC
TP61
TP58
TP56
TP53
TP54
VR52
VR53
VR51
TP52
TP59
TP57
TP55
TP51
TP60
