IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION
Chapter 6 - Floor Loading and Weights Page 107
6 – Floor Loading

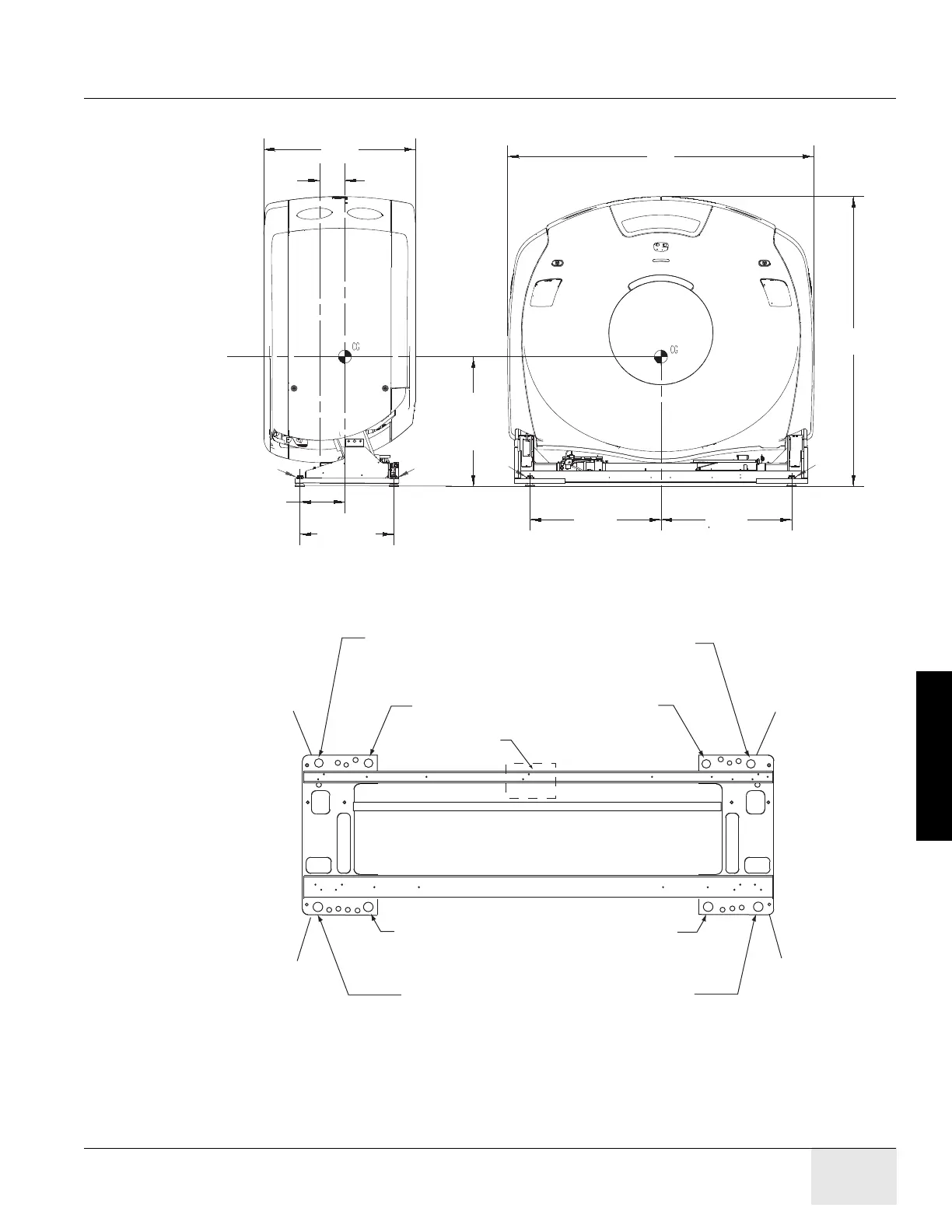

Figure 6-3 Gantry Anchor Location
Figure 6-2 Gantry
40.1"
(1018)
Scan Panel
6-11/16"
(170)
11-7/8"
(302.2)
24/13-16"
(630)
RIGHT SIDE
34.75"
(878)
34.75"
(878)
81"
(2057)
39-15/16" (1015)
76"
(1930)
FRONT SIDE
FLOOR
Anchor
Anchor
Anchor
Anchor
Left
Back
Front
Anchor
Location #2
Anchor
Location #1
Anchor
Location #4
Anchor
Location #3
N o t e : Adjusters are used at each anchor location. Anchor hole ID is 1" (2.5 cm).
Void between adjuster and anchor must be filled according to local building
codes for siesmic application.
Redundant
Anchor Location
Redundant
Anchor Location
Redundant
Anchor Location
Right
Redundant
Anchor Location
Cable Entrance
Anchor Pad
loaded to
960 lbf
Anchor Pad
loaded to
910 lbf
Anchor Pad
loaded to
1090 lbf
Anchor Pad
loaded to
1040 lbf
