GE HEALTHCARE
D
IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION
Chapter 7 - Delivery and Storage Requirements Page 119
7 – Delivery Data
Section 4.0
Gantry Considerations
The gantry is mounted on the pallet. Use dolly elevating casters to lift gantry off its base and roll it
into position. See Figure 7-1.

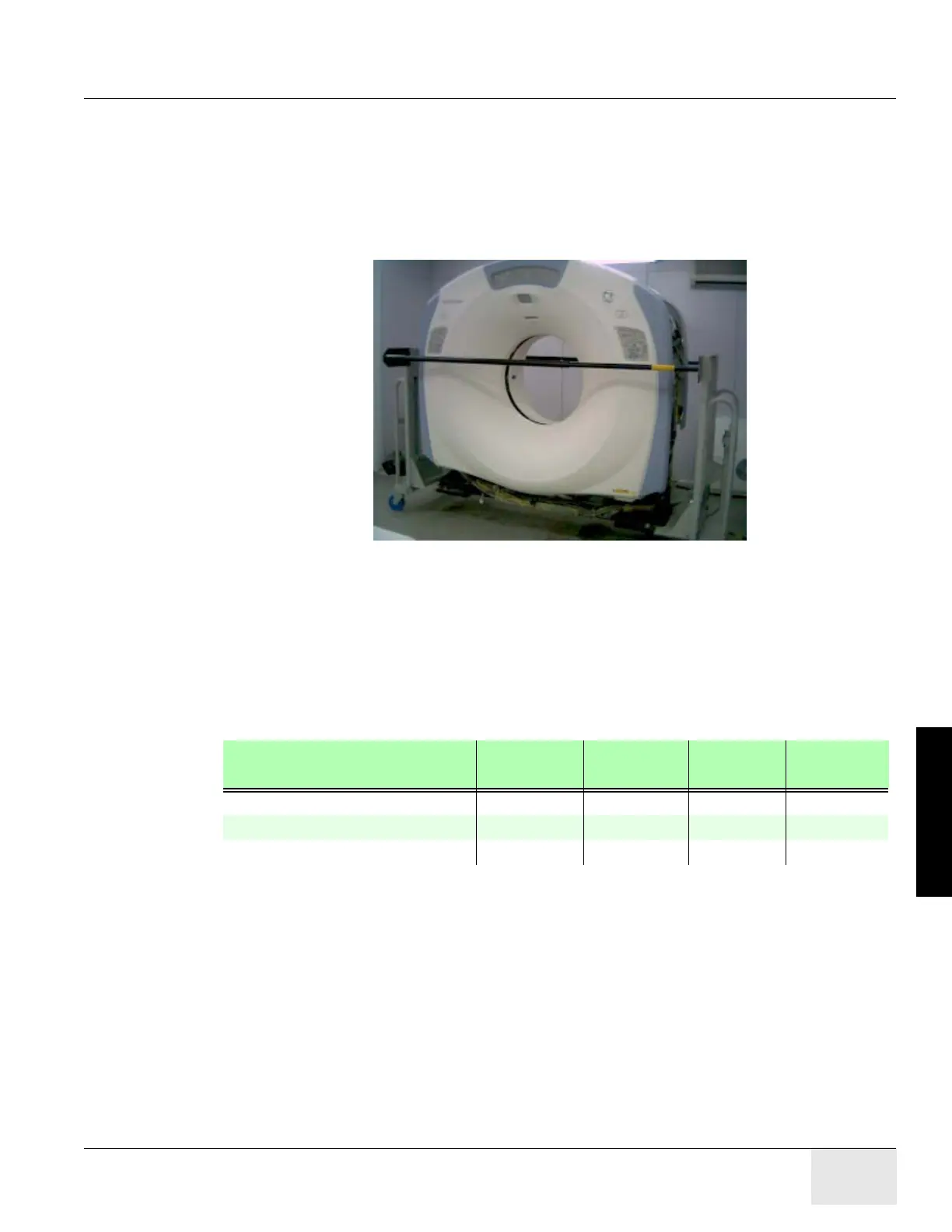

Figure 7-1 Gantry with dollies
Door Openings. Clear door openings for moving equipment into building must be 1067 X 2083 mm
(42 X 82 in. ) minimum. 2439 mm (8 ft. ) corridor width is helpful.
Elevator requirements. To move gantry from receiving location to scanning room, consider
elevator capacity and size. By removing side rails and one dolly after gantry is placed in elevator,
gantry width/length and elevator depth requirements are reduced. Contact a representative of
elevator manufacturer if gantry weight exceeds elevator capacity.
Minimum hallway and door size for gantry with covers and dollies attached, but side rails removed,
is 101.6 cm (40 in. ).
For alternative lifting arrangements and instructions, contact GE Installation Support Services.
Dollies:
Dollies can be purchased for international shipments (B7850LD) or US shipments
(B7850GD) to be used at the customer site. After the system has been removed from the crates,
dollies shipped with international shipments only are not to be shipped back to GE in Milwaukee,
WI, USA, but to be retained to the local GE office or warehouse.
Gantry shipping dimensions are:
2440mm (96 in. ) long, 1370mm (54 in. ) wide, 2180mm (86 in. ) high
CONFIGURATION
LENGTH
CM (IN)
WIDTH
CM (IN)
HEIGHT
CM (IN)
WEIGHT
KG (LB)
Dollies On, Side Rails On 281 (111) 129 (51) 200 (79) 2041 (4496)
Dollies On, Side Rails Removed 281 (111) 100 (39.4) 200 (79) 2013 (4434)
Dollies Off, Covers Off 197 (77) 86 (34) 185 (73) 1662 (3660)
Table 7-1 Size of Gantry & Dollies, with and without Side Rails
