IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION
Chapter 4 - Room Planning Page 89
4 – Room Planning

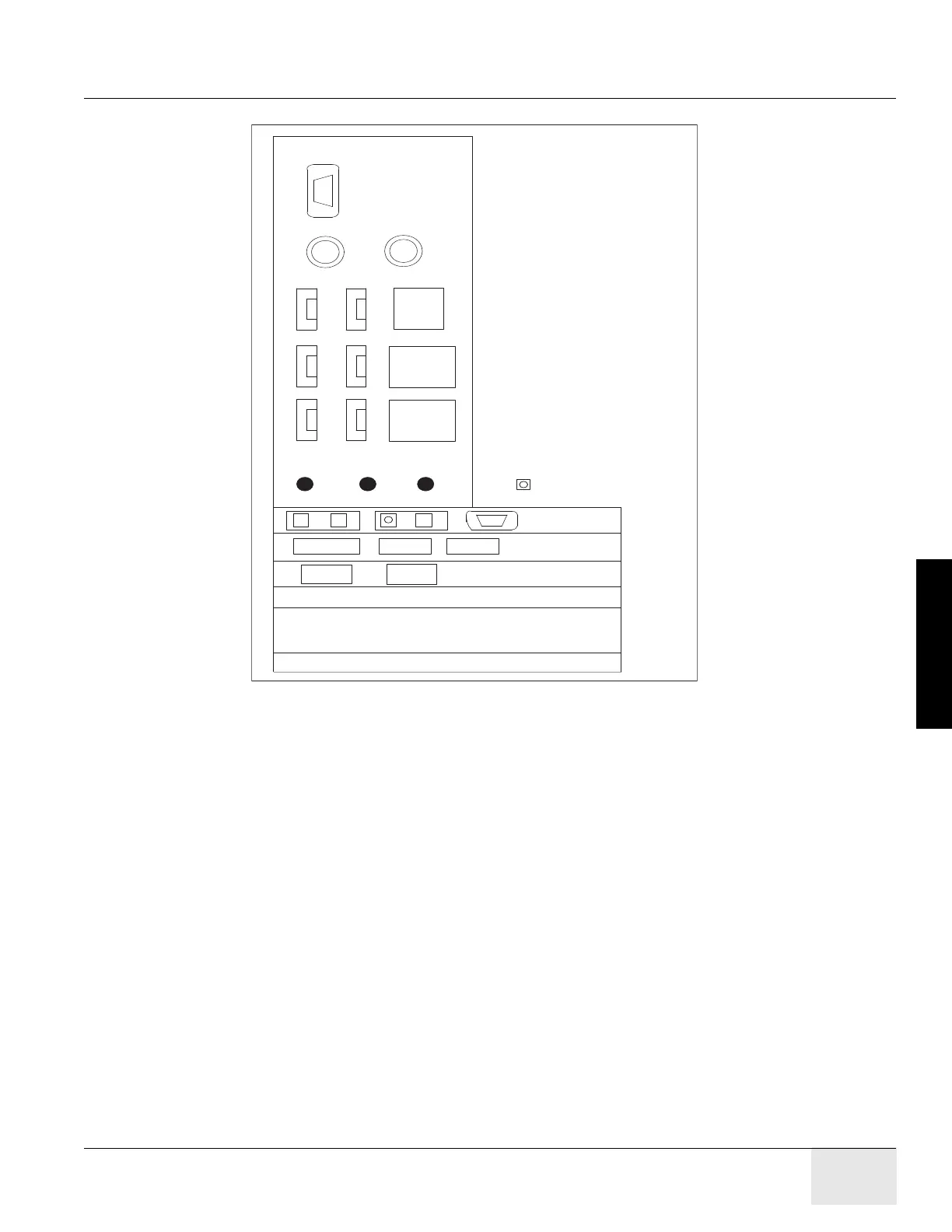

Figure 4-21 NIO16 Console Host Computer Rear
9.1 US Broad Band Process Overview
The United States network connectivity requirement for this product is broad-band. The US process
relies on the Project Manager Installation to select a Customer Champion and identify an IT contact
for the site. Together, those individuals then complete a site assessment to gauge what tasks are
needed to fulfill the connection.
Anyone can contact the GE Connectivity team at 800.321.7937, Option #3, with questions.
9.2 Customer Broad-Band Responsibilities
Provide GE Healthcare Installation Project Manager with an accurate site address, telephone
number, contact name, and e-mail address for the:
• Customer Champion
- Coordinate VPN activities between Radiology/Cardiology and the Information Technology
(IT) departments
- Act as a focal point in assuring site broad-band infrastructure meets GE Healthcare
requirements for connection as determined by a mutual assessment with the GE
Healthcare Connectivity team.
2
3
4
56
ETH 2
:
Serial Port
Purple
Green
USB USB
1
1394
ETH 3
PINK
GRN
BLUE
MIC
AOUT
AIN
DIP
Graphic
NIC
GPU
ETH 1
ETH 0
DP 1DP 0DVI-I 0
Serial Port: GSCB RHARD
USB
1. Keyboard
2. Mouse
3. Trackball
4. BarCode Reader
5. EXT USB
6. DVD-RW
ETH
0. Reserved
1. Gantry
2. HSP
3. HUB
DVI-I 0: Display Monitor
DP 0: Scan Monitor
GRN: GSCB AUDIO IN
BLUE: GSCB AUDIO OUT
DIP (D-SUB): GSCB X-ray Abort
DIP Optical Fibre RX
