4 – Room Planning
Section 5.0
Recommended Layouts
5.1 Control Room Considerations
Two kinds of Console configurations are available:
• Standard Console: Console + Single Piece Desktop;
• Console with FWS: Console + Freedom Workspace Table (See Figure 4-6).

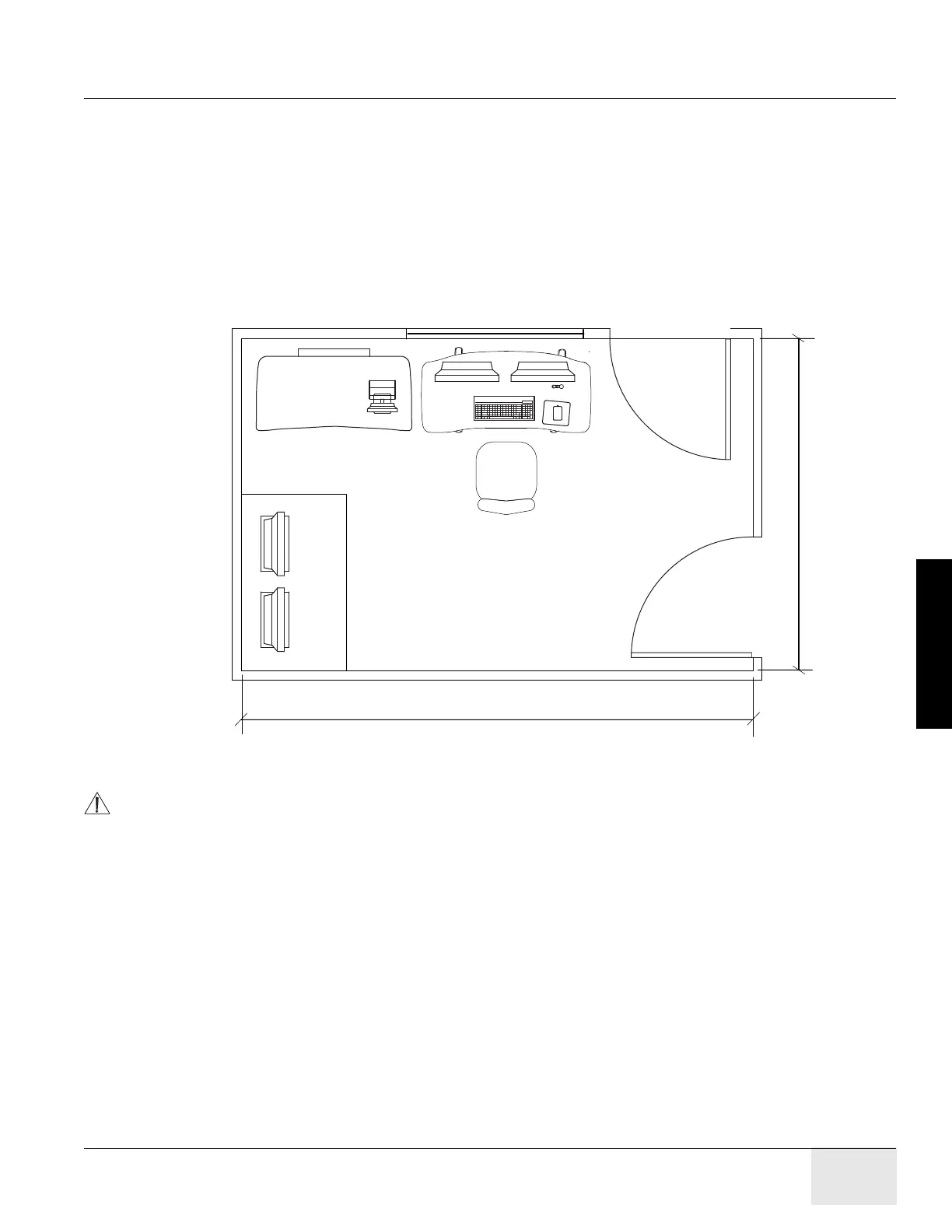

Figure 4-6 Recommended Control Room Layout with Freedom Workspace (FWS)
NOTICE If a Freedom Workspace (FWS) console table is ordered, it MUST be placed side by side with the
console. It can be placed on either side of the console. The Extended Cables Kit is shipped in FWS
Console Table Assembly. The extended cable length is 3 m (see Chapter 9 Section 3.2 for details).
• The control room must provide a suitable operating environment for the console electronic, and
operator working comfort.
• The console cannot be dismantled of, have components removed or rearranged in
configurations other than as shipped.
• If operationally possible, the monitor desktop and user desktop components may be removed
and placed on a counter-top, providing the cable lengths shipped are not altered or changed.
The operator console cabinet then can be remote mounted, provided the cooling requirements
are met. Maintain 152mm (6 in. ) on all sides; and venting is required.
• A suitable work area, which is within reach of the operator's console, should be provided for
placement of the injector control. Injector controls differ in dimensions depending on the brand
selected.
• A PACS, workstation, image printer, or filming device are often placed in the operator console
3861 mm (12ft. 8in. )
2500 mm (8ft. 2in. )
Console
FWS
AW
