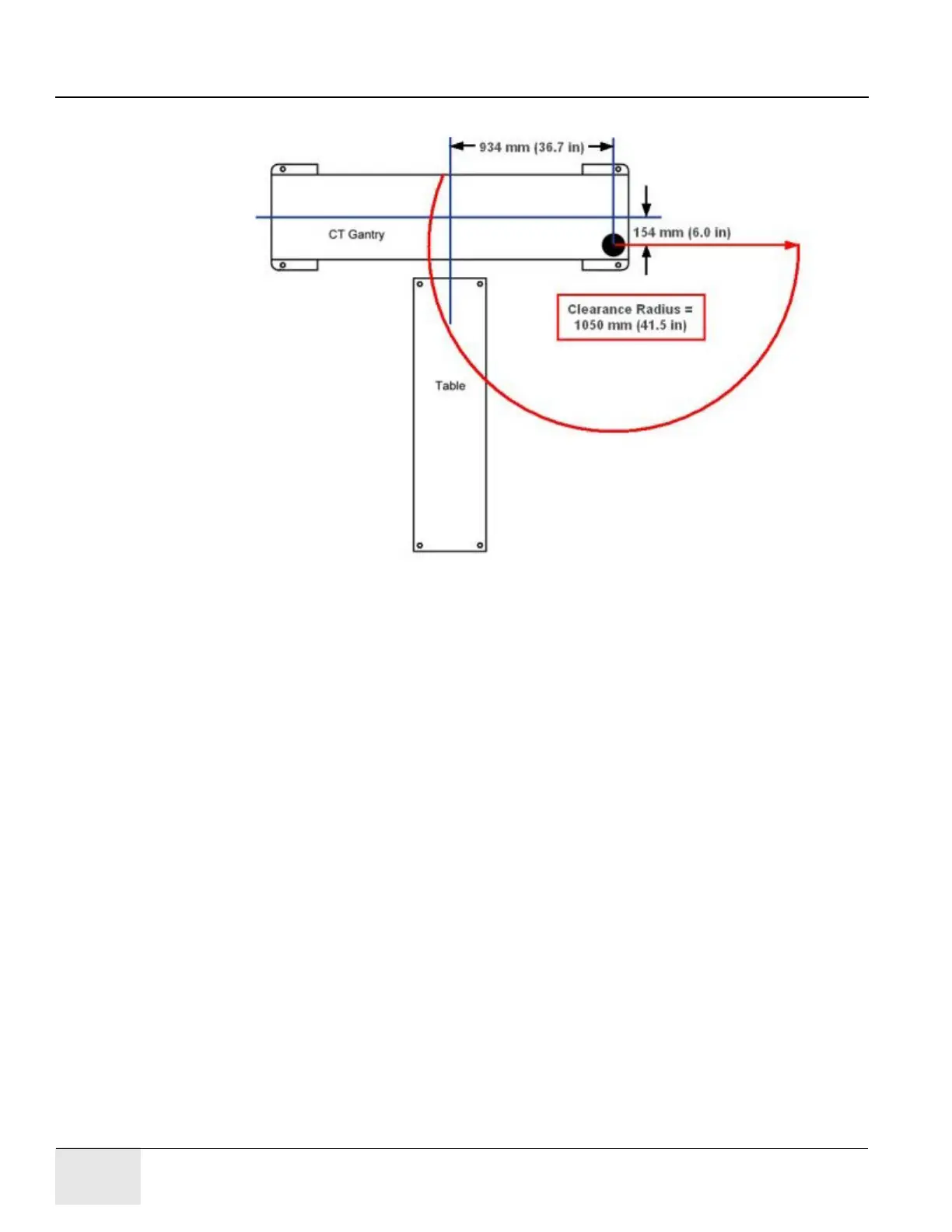

3.3 Power Distribution Unit (NGPDU) Service Clearance
Positioning of this component must be considered for regulatory compliance as defined in
Section 2.1 , Regulated Minimum Working Clearance by Major Subsystem.
See Regulatory Tables.
3.4 Console Service Clearance
The console does not present an exposed live parts hazard. However, a minimum working space
depth of 1219.2 mm (48 in.) and full width of the console be maintained at all times for service
activity. Additionally sufficient space needs to be provided for repositioning of the console and side
clearance for rear service access. Egress as well as other service requirement shall be considered
when siting the console. See Figure 4-6 for a Recommended control room layout.
Section 4.0
Short Footprint Consideration
4.1 Introduction of Short Footprint function
If the site room length cannot satisfy the requirements for standard mode. Short Footprint mode can
be considered.
Short Footprint mode is to set limitation to table cradle scannable limitation(A) so that cradle cannot
move in out of the limitation. The scannable range is limited accordingly.
Short Footprint features are as follows:
