GE HEALTHCARE
D
IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION
Chapter 7 - Delivery and Storage Requirements Page 121
7 – Delivery Data

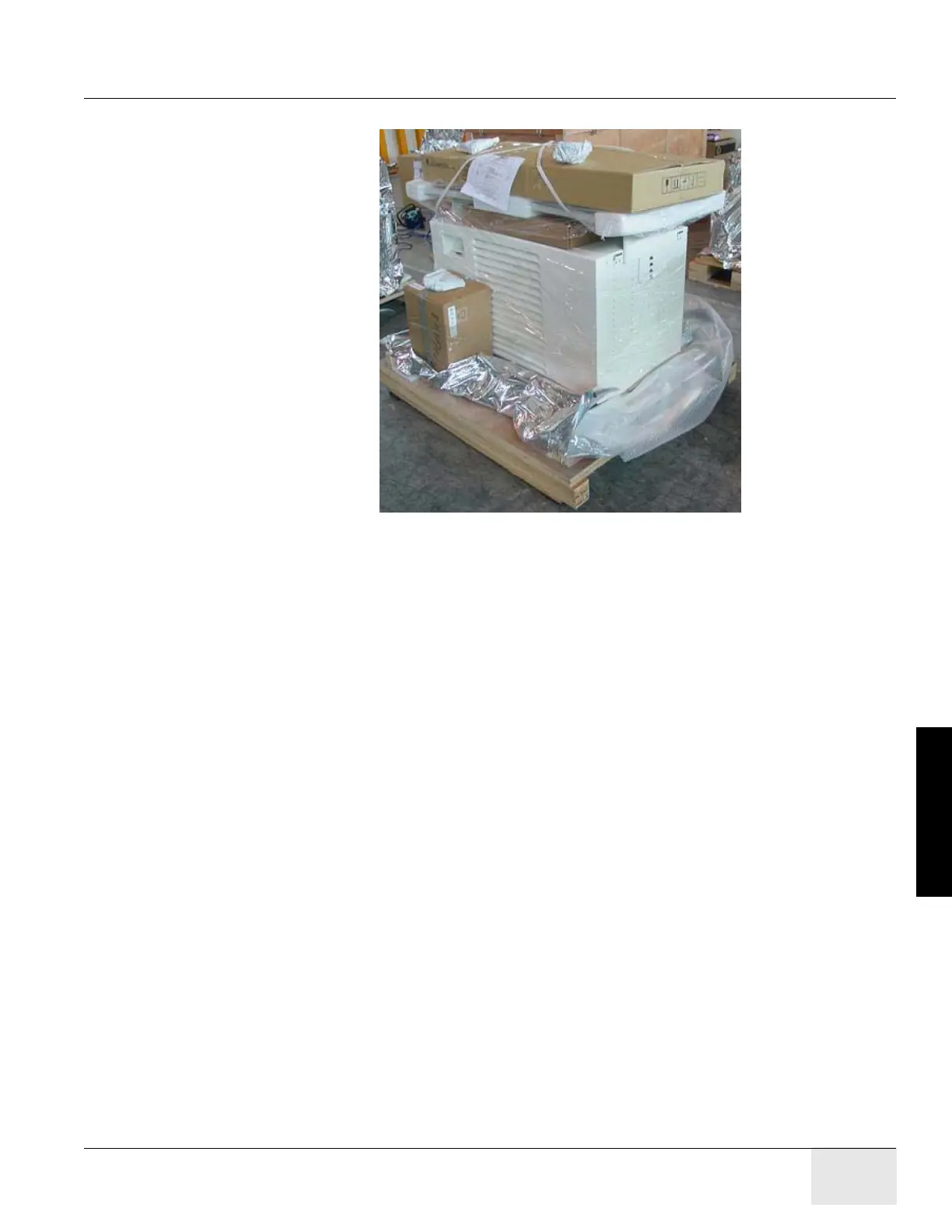

Figure 7-2 Console packing
True-In-One Console:
The console is shipped without the keyboard table installed. The keyboard table is shipped with the
console.
The dimensions of the console alone (as shipped) are 740mm (29 in.) deep, 470mm (19 in.) wide,
and 640mm (25 in.) high.
NIO16 Console:
The console is shipped without covers installed. The covers are delivered in the Product Grade
Collector.
The dimensions of the console alone (as shipped) measure 830 mm (33 in.) deep, 470 mm (19 in.)
wide, and 656 mm (26 in.) high.
Section 7.0
PDU Considerations
The PDU is shipped on a skid equipped with ramps for unloading.
PDU shipping dimensions (on the shipping skid) are 720 mm (28 in.) deep, 870 mm
(34 in.) wide, and 1320 mm (52 in.) high.
