IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
3-20 Section 3-3 - Receiving and Unpacking the Equipment
PRELIMINARY
3-4-3-3 Rear View of the Venue™ Ultrasound Unit

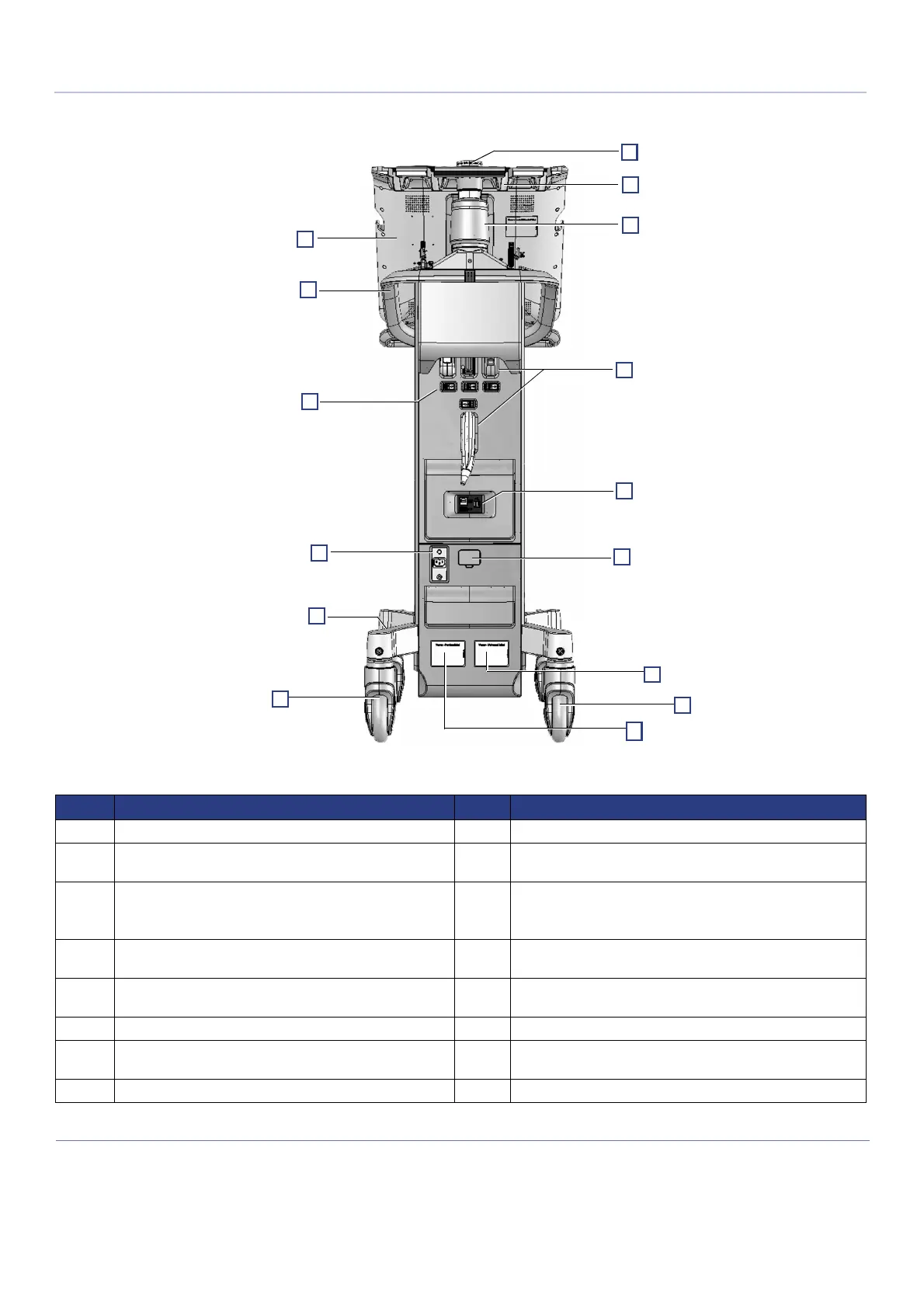

Figure 3-23 Venue™ Rear View
# Item # Item
1 Cockpit (monitor) - rear 9 System Label - General Label International
2
Rear handle: used to pull/push the scanner and place it in
the desired position.
10 On/Off Switch Cover
3 Probe locking levers 11
Interface Panel:
Provides ports for LAN, Insulated USB and Dual USB (see
Figure 3-24).
4
Caster:
(1x back) with free movement and no locking.
12 Probe Connectors - for 4 RS probes
5
Swivel and full lock caster:
(1x back)
13 Articulated Arm
6 Power inlet connector 14 Probe holders
7 System Base 15
Gel Cup Holder: Provides convenient storage for US Gel
bottle.
8 System Label - Rating Plate
8
9
1
2
7
6
3
4
12
11
13
10
5
14
15
