ADV200 • Quick start up guide 167
Calculation of lter current
I filter [A] =
Pm
Uln * √3 * ηf * ηl * ηm
Example:
Rated motor power Pm 18.5 [kW]
Motor efciency ηm 95%
Mains voltage Uln 400 [V]
Mains frequency 50 [Hz]
Inverter efciency ηl 98%
Passive lter efciency ηf 99.0%
Filter current 29.0 [A]
The rated current of the chosen lter must be ≥ the lter current calculated above:
RHF-A/B 29-400-50-20-A

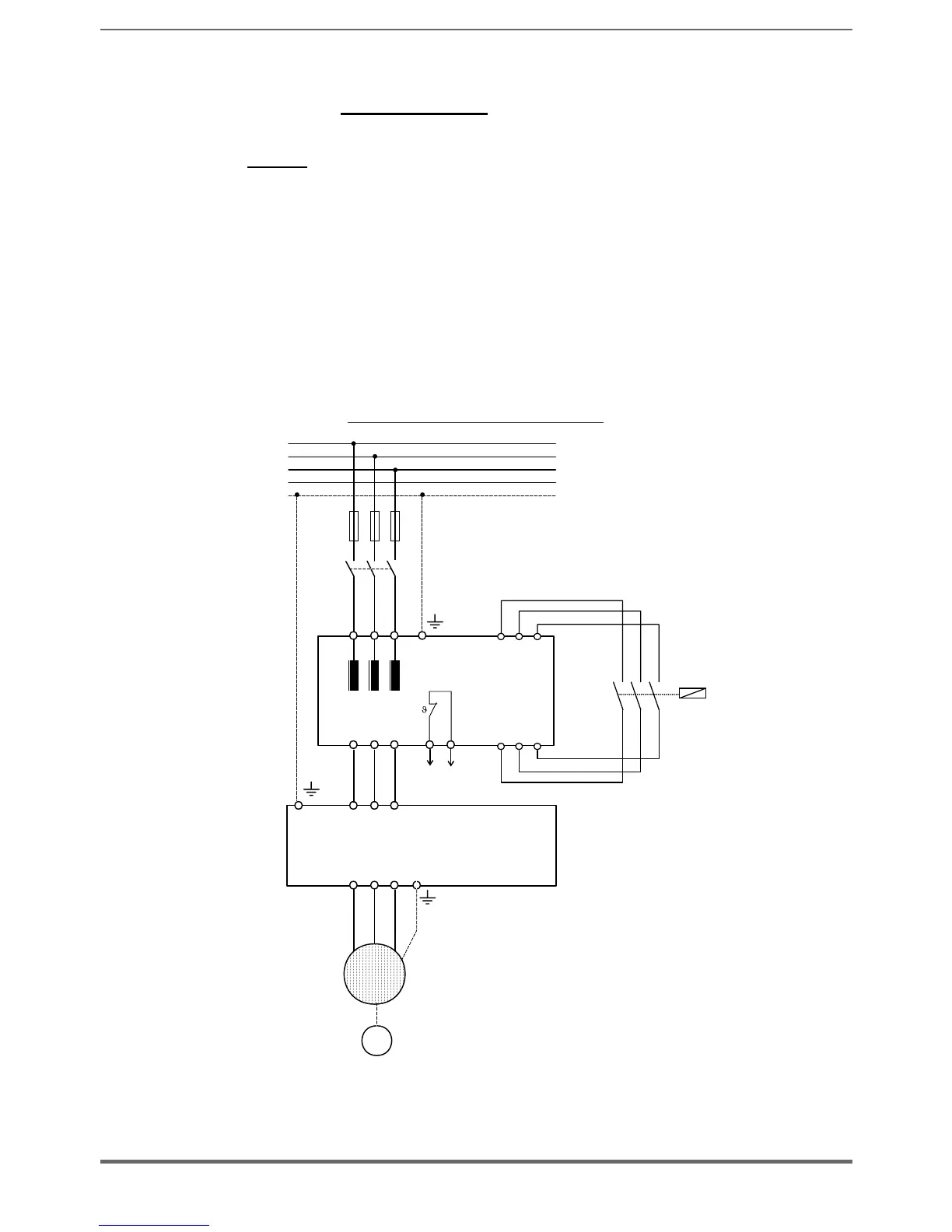

10.4.2 Connection diagrams
Figure 10.4.1: RHF-A-... and RHF-B-... models
K1M
5
L1
L2
L3
N
PE
1
2
3
4
6
E
U
V
W
M
3~
F1
ADV200
X2.1
RHF-A/B-...
L1
L2
L3
X2.2 X2.3
X1.1
X1.2
X1.3
A
Auxiliary circuit
(Pulse lock)
B
X3.1 X3.2
X3.3
X4.1 X4.2
X4.3
Capacitor disconnect
K2M
(optional)
