3.4 N·m (0.35 kgf·m, 2.5 lbf·ft)
128
MAINTENANCE
O-RING
CUP
WATER
SEPARATOR
CUP
SUSPENSION
STRAP
WATER LEVEL SENSOR
2P CONNECTOR
HARNESS
CLIP
CLIP C
WATER
SEPARATOR
FLAT PART ON BACK
OF SUSPENSION
Assemble so the flat part of the
suspension and the water separator joint
are parallel to each other.
JOINT

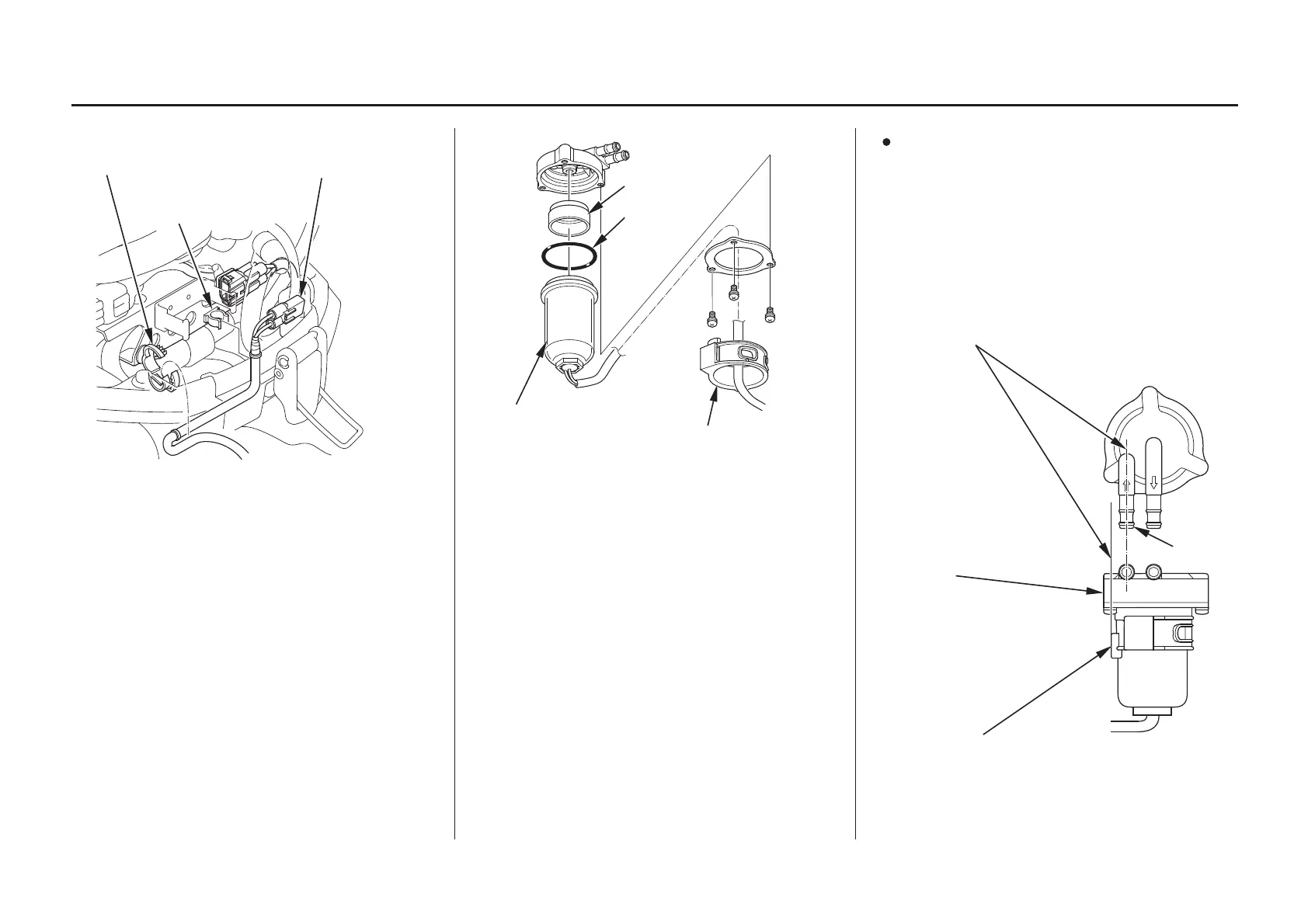

Open the harness clip and remove
the harness from the clip C, then
disconnect the water level sensor
2P connector.
Pinch the fuel tubes with tube clips
to prevent fuel leakage.
Disconnect the fuel tubes from the
water separator.
Remove the three screws and
separate the water separator cup
from the body.
Thoroughly cle an the water
separator cup.
Reassemble the water separator
body and the cup.
TIGHTENING TORQUE:
Assemble so the flat part on the
back of the suspension is parallel
to the water separator joint as
shown below.
7.
8.
4.
5.
6.3.
To Next Page
