OPERATION
1. Press the DN (down) of the power
trim/tilt switch and trim the
outboard motor at the lowermost
position.
R3 type:
When the two outboard motors are
mounted:
1)Press the DN (down) of the power
trim/tilt switch on the control lever
and trim the outboard motors at the
lowermost position.
2)With the outboard motors trimmed
at the lowermost position, adjust
the trim angle of the right and left
outboard motors using the switch
on the control lever simultaneously.

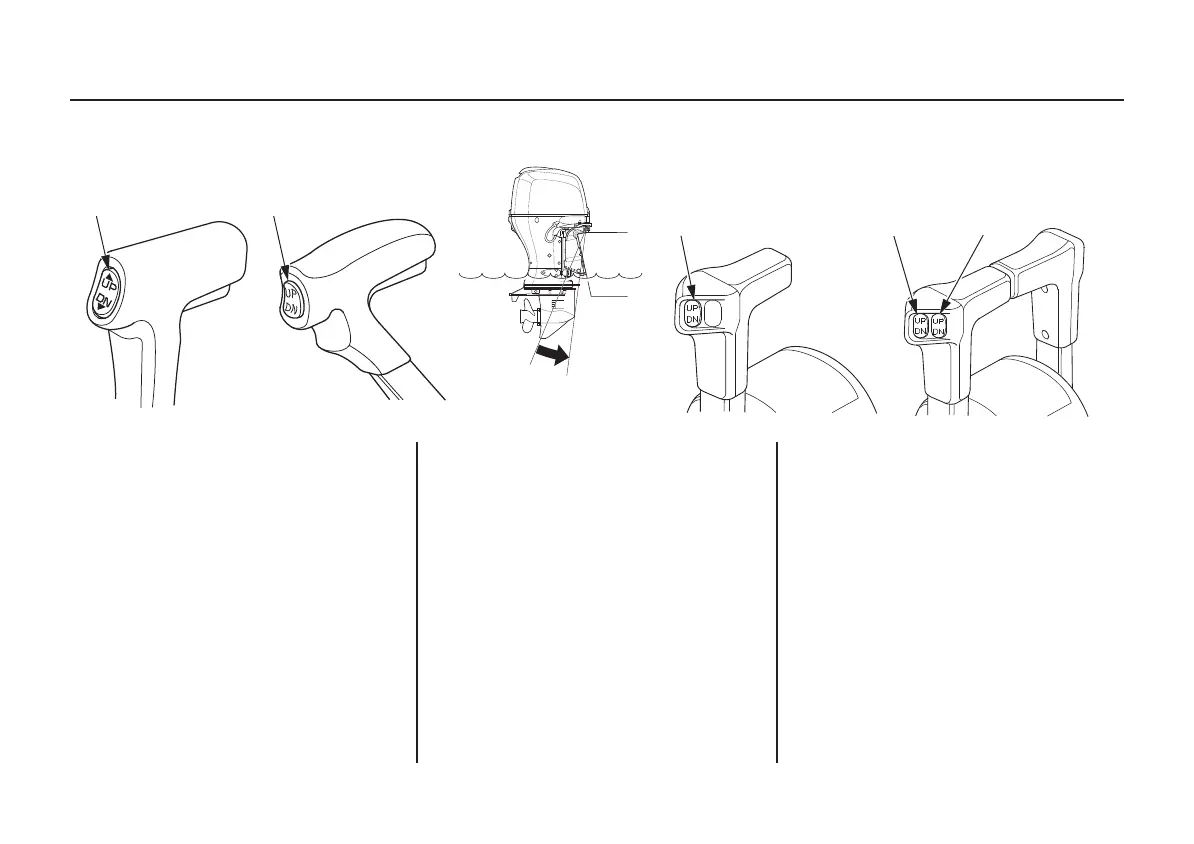

Cruising (R type)
(R1 type)
POWER TRIM/
TILT SWITCH
POWER TRIM/
TILT SWITCH
(R2 type)
LOWERMOST
POSITION
(R3 type)
(single type)
(dual type)
POWER TRIM/
TILT SWITCH
POWER TRIM/TILT SWITCH
(LEFT) (RIGHT)
<;DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝㧤ᣣޓ㊄ᦐᣣޓඦᓟ㧞ᤨ㧟㧟ಽ

Honda BF90D Specifications

General

Bore & Stroke	73 mm x 89.4 mm
Horsepower	90 HP
Cooling System	Water Cooled
Starting System	Electric
Gear Ratio	2.33:1
Trim Range	-4° to +16°
Tilt Range	70°
Dry Weight	163 kg (359 lbs)
Lubrication	Wet Sump
Recommended Fuel	Unleaded Gasoline (86 Octane or higher)
Gear Shift	F-N-R
Steering	Remote
Trim Method	Power Trim and Tilt
Displacement	1496 cc
Exhaust	Through propeller
Alternator Output	44 Amps
Recommended Engine Oil	10W-30 FC-W
Shaft Length	20" or 25"
Engine Type	4-Stroke SOHC, 4 Cylinders
Fuel Delivery	Programmed Fuel Injection
