Honda BF90D User Manual

57
INSTALLATION

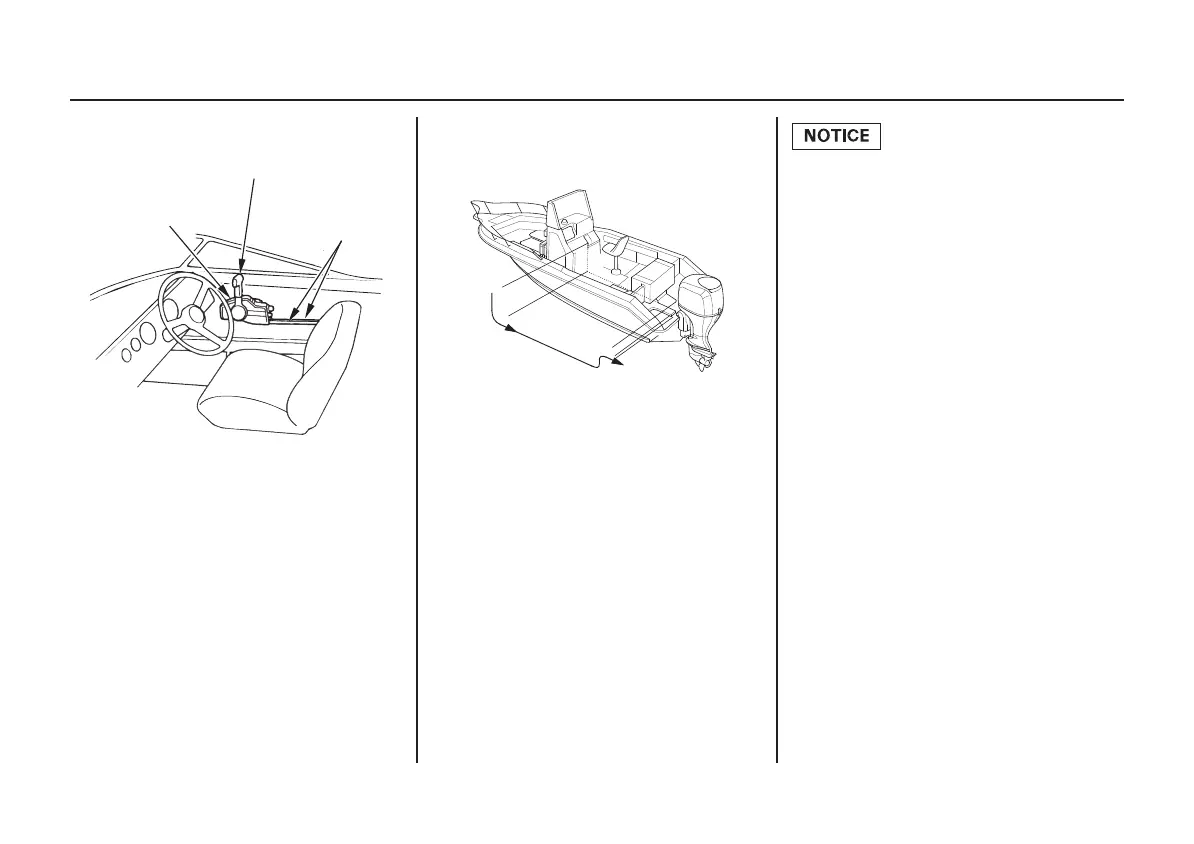

<Remote Control Box Location>
Install the remote control box in the
position where is easy to operate the
remote control lever and switches.
Be sure that there are no obstacles on
the route of the control cable.
The control box position of the R2
type and the R3 type should be
determined in the same manner.
<Remote Control Cable Length>
Measure the distance from the control
box to the outboard motor along the
cable routing.
Recommended cable length is 300
–
450 mm (11.8 – 17.7 in) longer than
the measured distance.
Set the cable along the predetermined
route and be sure that it is long
enough to the route.
Connect the cable to the engine and
be sure it is not kinked, bent sharp,
pulled taut, or interfered while
steering.
Do not bend the remote control
cable as sharp as its route diameter
is 300 mm (11.8 in) or less, or it
affects the service life of the cable
and the remote control lever
operation.
REMOTE
CONTROL BOX
REMOTE
CONTROL
CABLE
REMOTE CONTROL LEVER
<;DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝㧤ᣣޓ㊄ᦐᣣޓඦᓟ㧞ᤨ㧟㧟ಽ

Honda BF90D Specifications

General

Bore & Stroke	73 mm x 89.4 mm
Horsepower	90 HP
Cooling System	Water Cooled
Starting System	Electric
Gear Ratio	2.33:1
Trim Range	-4° to +16°
Tilt Range	70°
Dry Weight	163 kg (359 lbs)
Lubrication	Wet Sump
Recommended Fuel	Unleaded Gasoline (86 Octane or higher)
Gear Shift	F-N-R
Steering	Remote
Trim Method	Power Trim and Tilt
Displacement	1496 cc
Exhaust	Through propeller
Alternator Output	44 Amps
Recommended Engine Oil	10W-30 FC-W
Shaft Length	20" or 25"
Engine Type	4-Stroke SOHC, 4 Cylinders
Fuel Delivery	Programmed Fuel Injection
