Honda BF90D - Steering Handle Friction (H Type); Remote Control Lever Friction

59
PRE-OPERATION CHECKS
Remote Control Lever FrictionSteering Handle Friction (H type) (R2 type)
(R3 type)
(R1 type)
To increase friction
To decrease friction
To increase friction
To decrease friction
To decrease friction
To increase friction
CONTROL LEVER FRICTION ADJUSTER
CONTROL
LEVER
FRICTION
ADJUSTER
CONTROL
LEVER
FRICTION
ADJUSTER
STEERING
FRICTION
ADJUSTING
KNOB
T
T
o
o
i
i
n
n
c
c
r
r
e
e
a
a
s
s
e
e
f
f
r
r
i
i
c
c
t
t
i
i
o
o
n
n
T
T
o
o
d
d
e
e
c
c
r
r
e
e
a
a
s
s
e
e
f
f
r
r
i
i
c
c
t
t
i
i
o
o
n
n

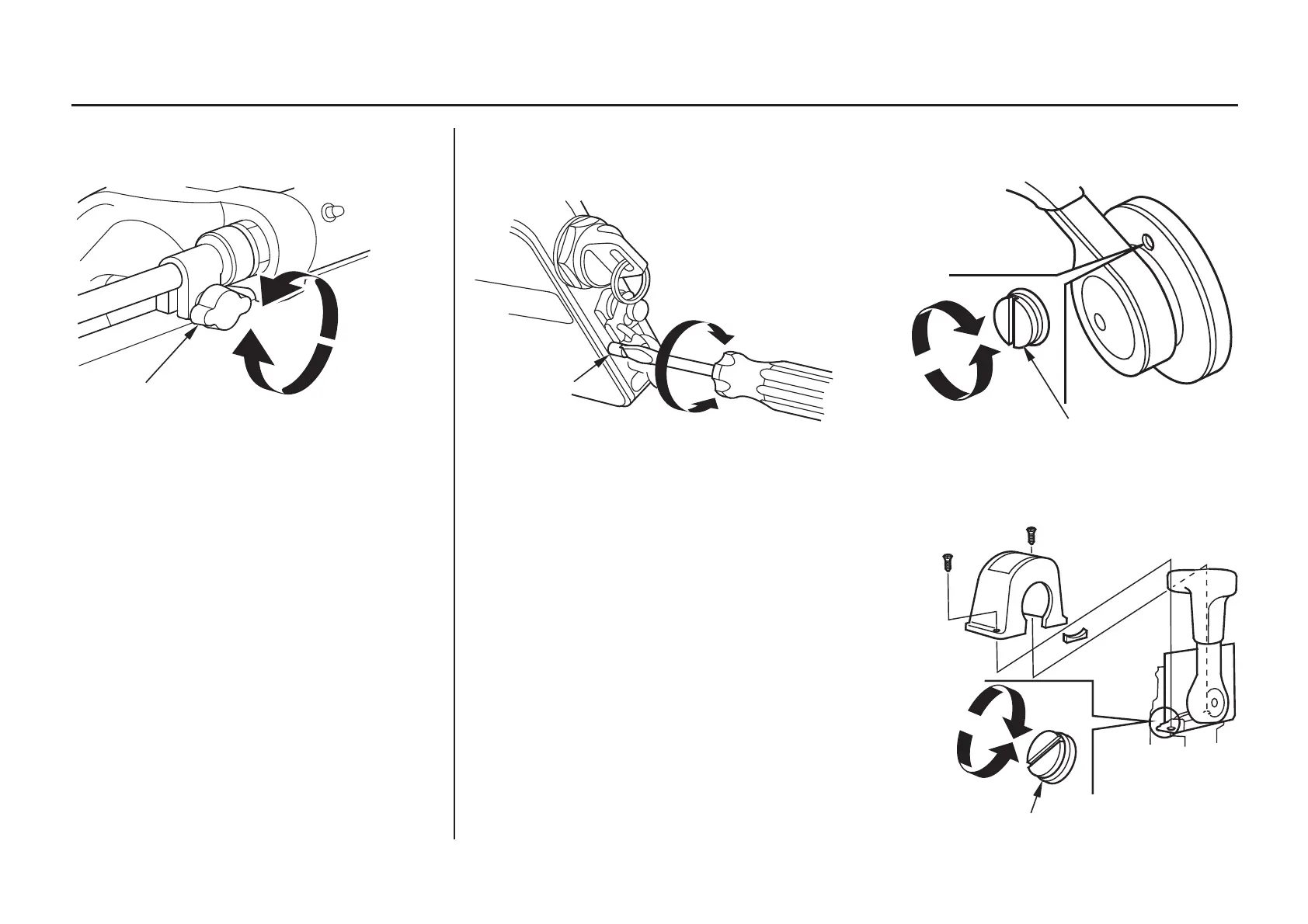

Check whether the remote control
lever moves smoothly.
Friction of the control lever can be
adjusted by turning the control lever
friction adjuster right or left.
Check whether the handle moves
smoothly.
For smooth steering, adjust the
steering friction adjusting knob so
that a slight drag is felt when
turning.
