Honda BF90D User Manual

37
CONTROLS AND FEATURES (G type)

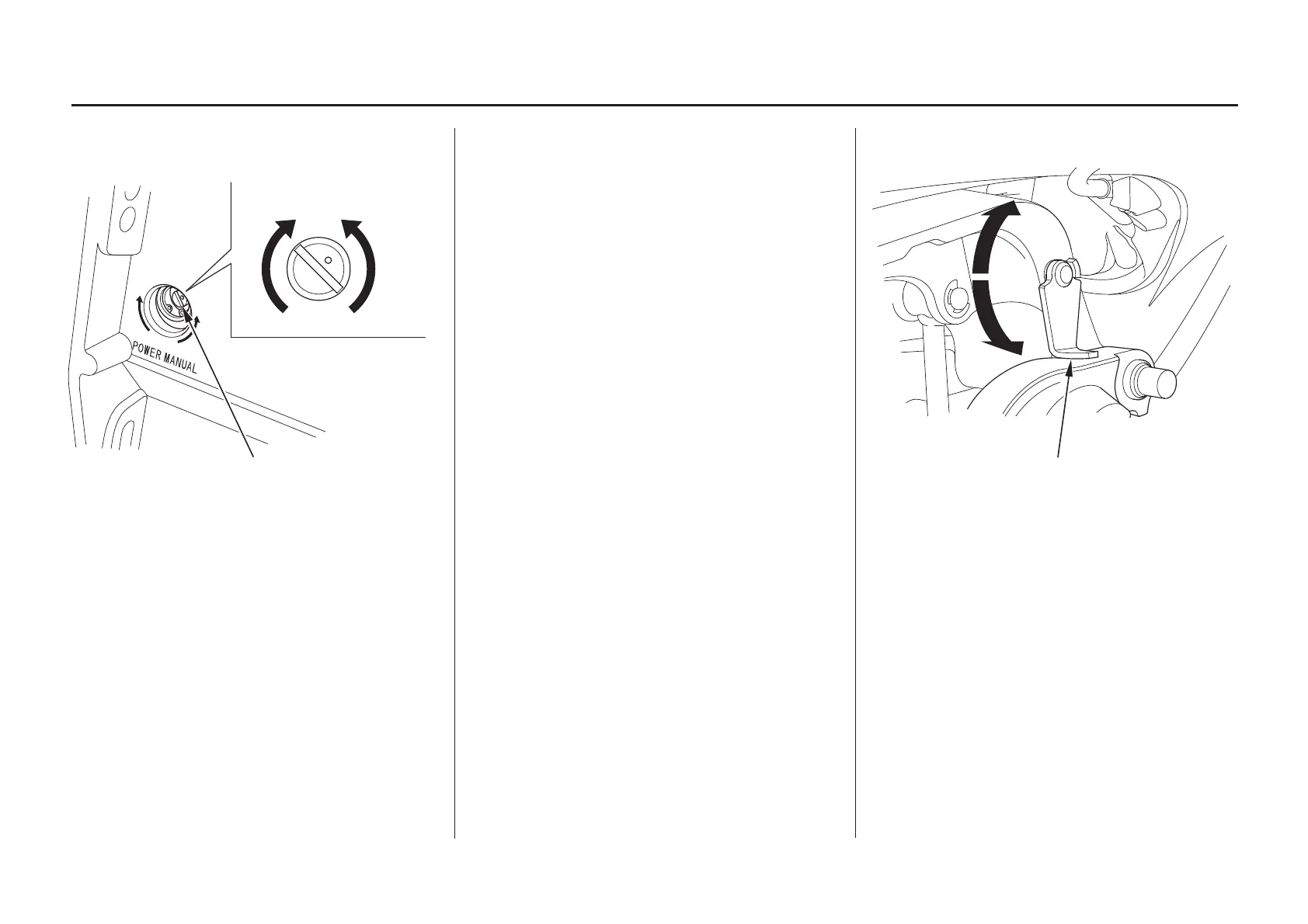

Tilt Lever
Use the tilt lever to temporarily raise
the outboard motor when the boat is
sailing in the shallows, or mooring or
anchoring in the shallows.
Raising the tilt lever unlocks the
outboard motor and the outboard
motor can be tilted. Lowering the tilt
lever locks the outboard motor.
Be sure to lower the tilt lever 
and lock the outboard motor 
before sailing. The outboard 
motor could rise when sailing 
in the reverse gear, resulting in 
an accidental injury to the
passenger(s).
Do not disassemble the gas
assisted damper assembly as it
is filled with the high pressure
gas.
Transom Angle Adjusting Rod
Use the transom angle adjusting rod
to adjust the outboard motor angle
properly.
The outboard motor angle can be
adjusted to the five angles by
removing the adjusting rod or
changing the adjusting rod position.
TILT LEVER
FREE
LOCK
FREE
LOCK
TRANSOM ANGLE ADJUSTING ROD
<;DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝㧤ᣣޓ㊄ᦐᣣޓඦᓟ㧞ᤨ㧟㧟ಽ

Honda BF90D Specifications

General

Bore & Stroke	73 mm x 89.4 mm
Horsepower	90 HP
Cooling System	Water Cooled
Starting System	Electric
Gear Ratio	2.33:1
Trim Range	-4° to +16°
Tilt Range	70°
Dry Weight	163 kg (359 lbs)
Lubrication	Wet Sump
Recommended Fuel	Unleaded Gasoline (86 Octane or higher)
Gear Shift	F-N-R
Steering	Remote
Trim Method	Power Trim and Tilt
Displacement	1496 cc
Exhaust	Through propeller
Alternator Output	44 Amps
Recommended Engine Oil	10W-30 FC-W
Shaft Length	20" or 25"
Engine Type	4-Stroke SOHC, 4 Cylinders
Fuel Delivery	Programmed Fuel Injection
