Honda BF90D User Manual

104
OPERATION
Trim Meter
(equipped type or optional
equipment)
The trim meter indicates the trim
angle of the outboard motor. Refer to
the trim meter, and press the UP or
DN (down) portion of the power trim/
tilt switch to adjust the outboard
motor trim angle to achieve boat
performance and stability.
The illustration represents R1 type.
Perform the same procedure for the
other types.

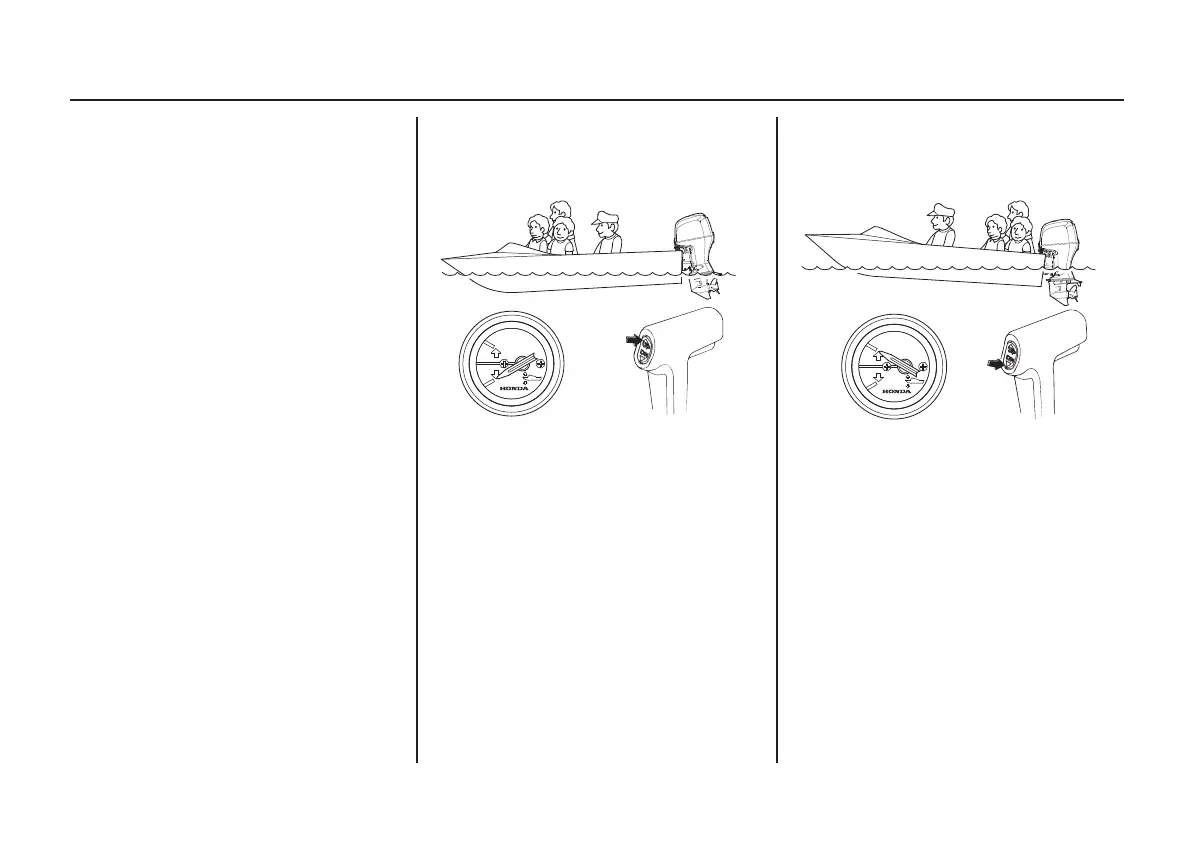

BOW TOO LOW DUE TO
1. LOAD IN THE FRONT
2. OUTBOARD MOTOR TRIMMED
TOO LOW
With the outboard motor trimmed
low the trim meter will read as
shown. To raise the bow increase the
outboard motor trim angle by
pressing the UP portion of the power
trim/tilt switch.
BOW TOO HIGH DUE TO
1. LOAD IN THE REAR
2. OUTBOARD MOTOR TRIMMED
TOO HIGH
With the outboard motor trimmed
high the trim meter will read as
shown. To lower the bow decrease
the outboard motor trim angle by
pressing the DN (down) portion of
the power trim/tilt switch.
<;DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝㧤ᣣޓ㊄ᦐᣣޓඦᓟ㧞ᤨ㧟㧟ಽ

Honda BF90D Specifications

General

Bore & Stroke	73 mm x 89.4 mm
Horsepower	90 HP
Cooling System	Water Cooled
Starting System	Electric
Gear Ratio	2.33:1
Trim Range	-4° to +16°
Tilt Range	70°
Dry Weight	163 kg (359 lbs)
Lubrication	Wet Sump
Recommended Fuel	Unleaded Gasoline (86 Octane or higher)
Gear Shift	F-N-R
Steering	Remote
Trim Method	Power Trim and Tilt
Displacement	1496 cc
Exhaust	Through propeller
Alternator Output	44 Amps
Recommended Engine Oil	10W-30 FC-W
Shaft Length	20" or 25"
Engine Type	4-Stroke SOHC, 4 Cylinders
Fuel Delivery	Programmed Fuel Injection
