Honda BF90D User Manual

29
CONTROLS AND FEATURES (R type)

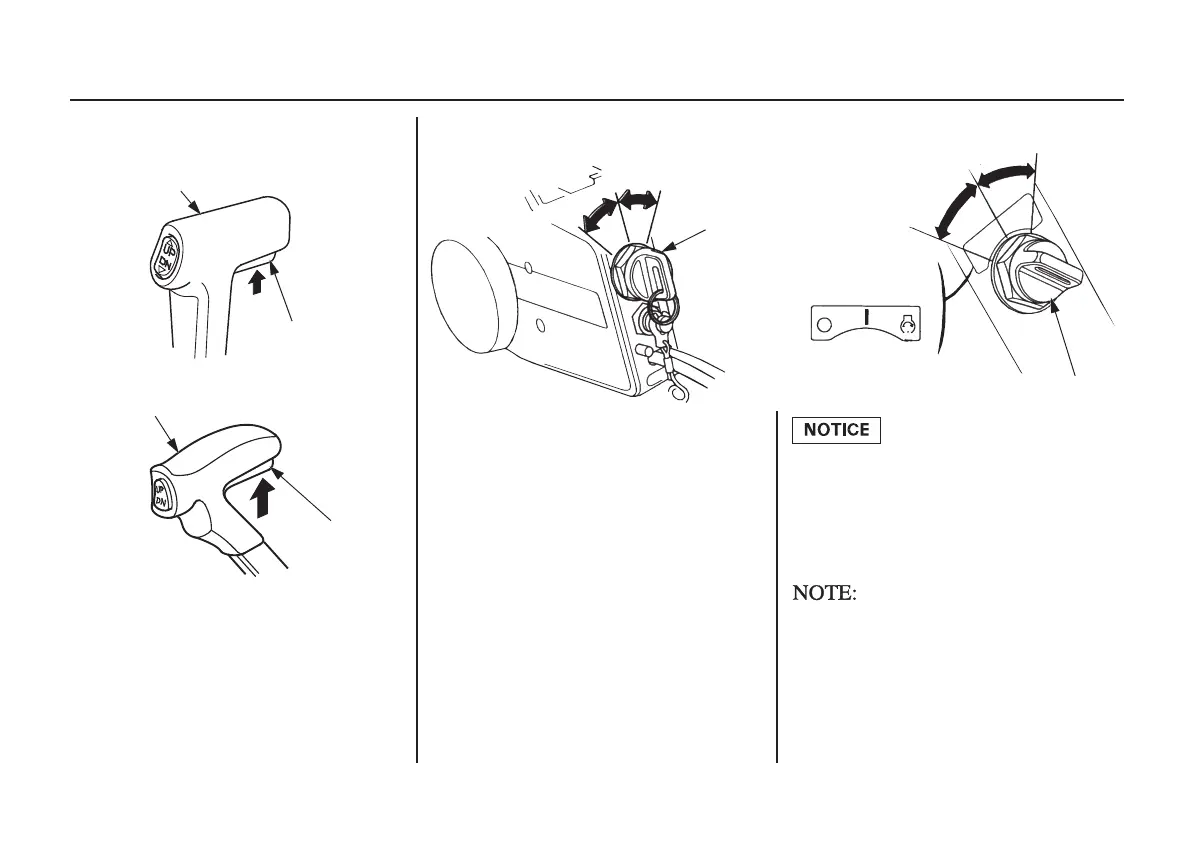

Neutral Release Lever
The neutral release lever is set on the
remote control lever to prevent an
accidental operation of the remote
control lever.
The remote control lever does not
operate unless it is moved while
pulling the neutral release lever up.
This remote control is equipped with
an automotive type ignition switch.
On the side-mount type (R1 type), the
engine switch locates on your side
near the remote control box.
On the panel-mount type (R2 type)
and the top-mount type (R3 type), the
engine switch locates at the center of
the control panel.
Key positions:
START:
ON:
OFF:
Do not leave the engine switch
(ignition switch) ON (key in ON
position) when the engine is not
running as the battery will
discharge.
The starter motor will not work
unless the remote control lever is in
the NEUTRAL position, and the clip
is in the emergency stop switch.
(R1 type)
(R2 type)

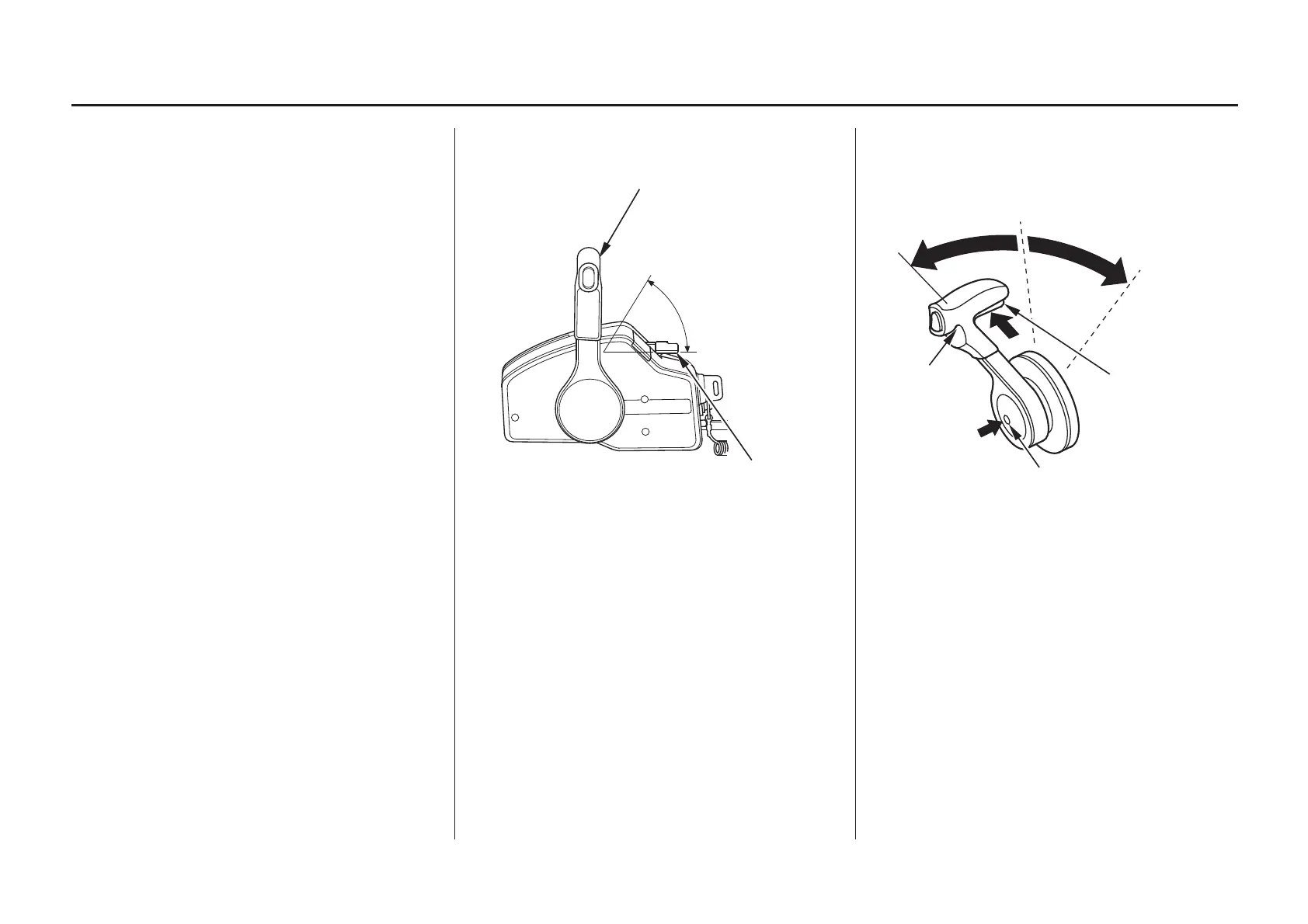

REMOTE CONTROL LEVER
NEUTRAL
RELEASE LEVER
REMOTE CONTROL LEVER
NEUTRAL
RELEASE
LEVER
to start the engine.
to run the engine
after starting. 
to stop the engine
(IGNITION OFF).
Engine Switch (Ignition Switch)
(R1 type)
OFF
ON
START
ENGINE
SWITCH
ON
OFF START
OFF
ON
START
ENGINE SWITCH
(R2, R3 types)
<;DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝㧤ᣣޓ㊄ᦐᣣޓඦᓟ㧞ᤨ㧟㧟ಽ

Honda BF90D Specifications

General

Bore & Stroke	73 mm x 89.4 mm
Horsepower	90 HP
Cooling System	Water Cooled
Starting System	Electric
Gear Ratio	2.33:1
Trim Range	-4° to +16°
Tilt Range	70°
Dry Weight	163 kg (359 lbs)
Lubrication	Wet Sump
Recommended Fuel	Unleaded Gasoline (86 Octane or higher)
Gear Shift	F-N-R
Steering	Remote
Trim Method	Power Trim and Tilt
Displacement	1496 cc
Exhaust	Through propeller
Alternator Output	44 Amps
Recommended Engine Oil	10W-30 FC-W
Shaft Length	20" or 25"
Engine Type	4-Stroke SOHC, 4 Cylinders
Fuel Delivery	Programmed Fuel Injection
