OPERATION

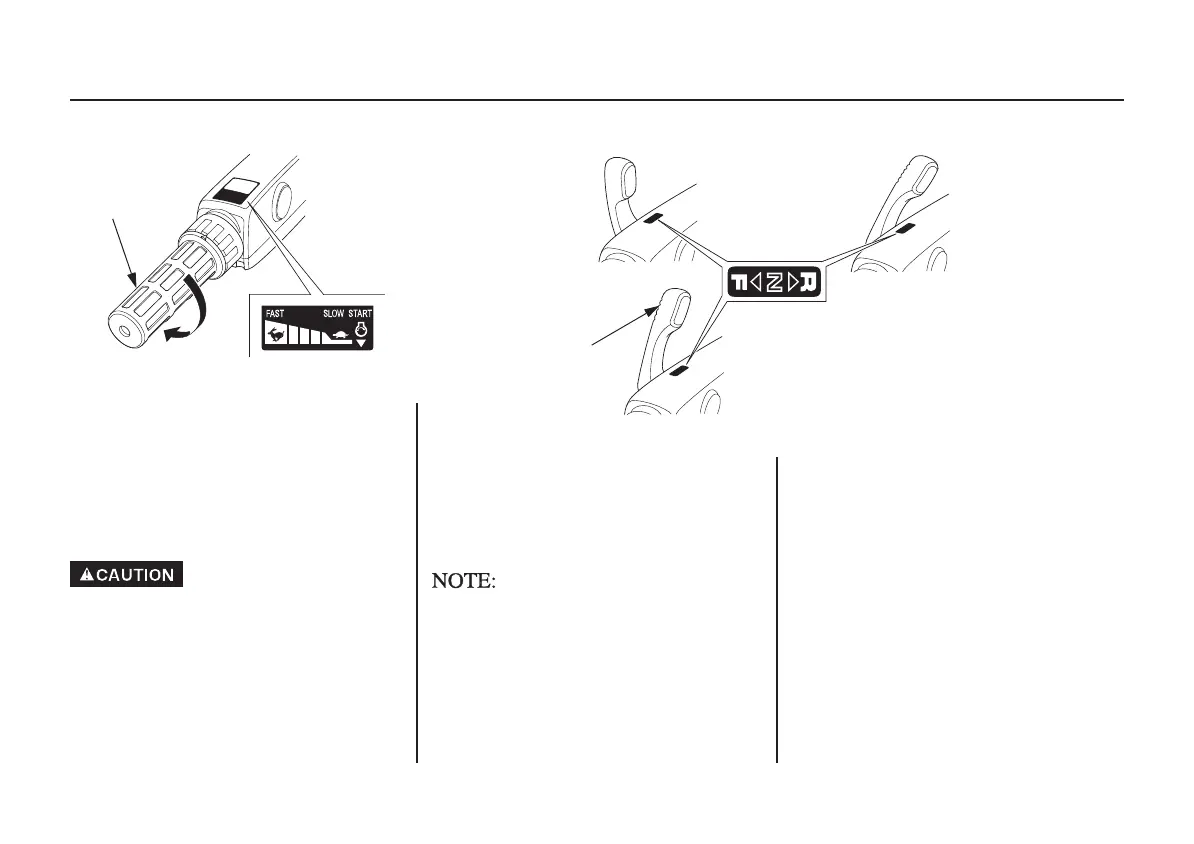

The shift lever has 3 positions:
FORWARD, NEUTRAL, and
REVERSE.
An indicator at the base of the shift
lever aligns with the icon attached at
the tiller handle.
Be sure to perform the gearshift
operation at a low engine speed.
Shifting the gear at a high engine
speed will damage the drive system.
Be sure that the gear was shifted
securely, then operate the throttle
grip to raise the engine speed.
1. Align the pointer on the tiller
handle with the SLOW position on
the throttle grip to decrease engine
speed.
The throttle mechanism is designed to
limit throttle opening in REVERSE
and NEUTRAL. Do not turn the
throttle grip with force in the FAST
direction. The throttle can be opened
to FAST only in FORWARD gear.
Be sure that the tilt lever is in the
LOCK position. (G type)
2. Move the shift lever to engage the
desired gear.
·····
Gear Shifting
(H type)
THROTTLE
GRIP
SLOW
SLOW
·········
···················
·········
·····
··········
·····
N (NEUTRAL)
R (REVERSE)F (FORWARD)
NEUTRAL
REVERSE
FORWARD
SHIFT LEVER
<;DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝㧤ᣣޓ㊄ᦐᣣޓඦᓟ㧞ᤨ㧟㧟ಽ

Honda BF90D Specifications

General

Bore & Stroke	73 mm x 89.4 mm
Horsepower	90 HP
Cooling System	Water Cooled
Starting System	Electric
Gear Ratio	2.33:1
Trim Range	-4° to +16°
Tilt Range	70°
Dry Weight	163 kg (359 lbs)
Lubrication	Wet Sump
Recommended Fuel	Unleaded Gasoline (86 Octane or higher)
Gear Shift	F-N-R
Steering	Remote
Trim Method	Power Trim and Tilt
Displacement	1496 cc
Exhaust	Through propeller
Alternator Output	44 Amps
Recommended Engine Oil	10W-30 FC-W
Shaft Length	20" or 25"
Engine Type	4-Stroke SOHC, 4 Cylinders
Fuel Delivery	Programmed Fuel Injection
