OPERATION
The BF75D/80A/90D/100A T types
are equipped with the power trim/tilt
system which can adjust the outboard
motor angle (trim/tilt angle) while
cruising and mooring. The outboard
motor angle can also be adjusted
while cruising and accelerating to
obtain the maximum speed and
optimum driveability and fuel
economy.
Press either UP or DN (down) of the
power trim/tilt switch and tilt the
outboard motor to the best position in
compliance with the cruising
conditions.
The power trim/tilt system operates
when the switch is pressed, and it
stops when the switch is released.
To trim up slightly, press on UP
momentarily but securely.
To trim down slightly, press on DN
(down) in the same manner.
68°68°
12°
16°16°
0°
0°
- 4°
68°
12°
16°
0°
0°

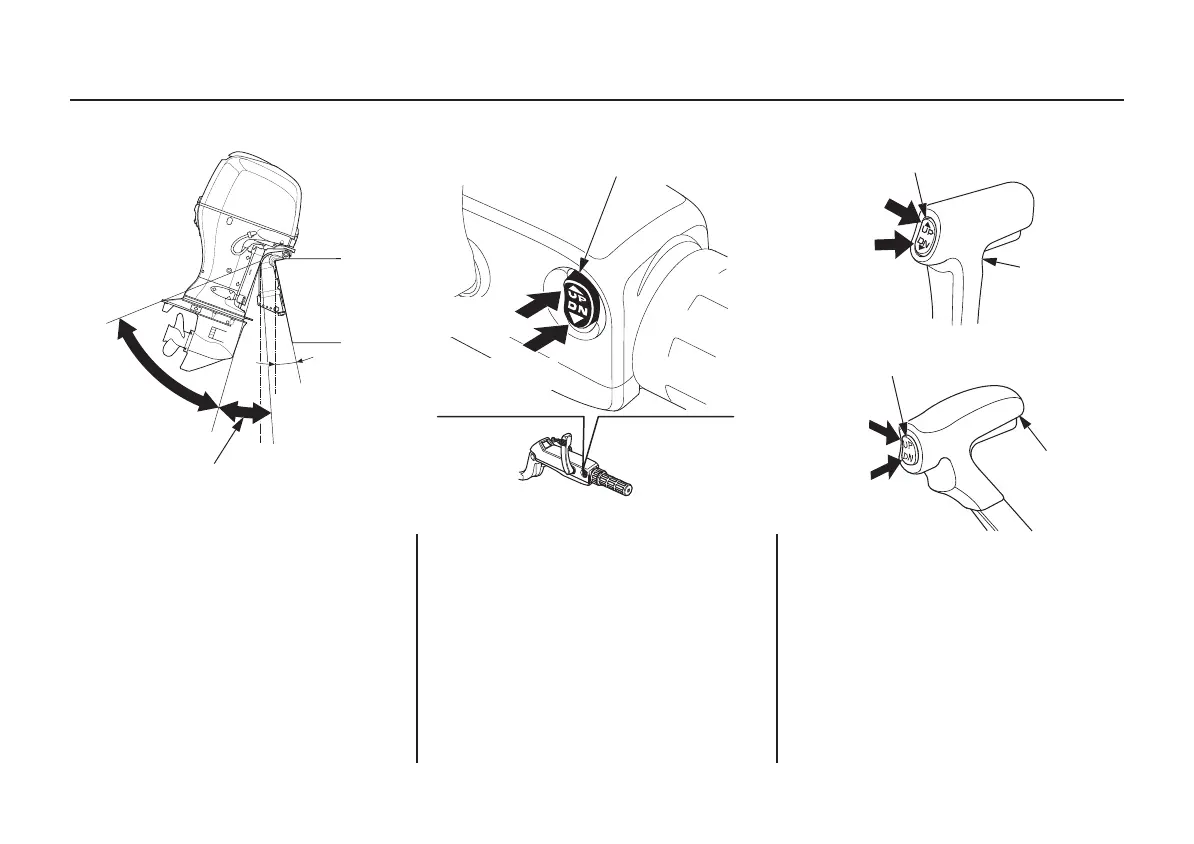

Trimming the Outboard Motor
TILT
ANGLE
TRIM ANGLE (VERTICAL LINE)
(when transom angle is 12°)
(H type)
POWER TRIM/TILT SWITCH
Press DN to
lower bow.
(R1 type)
POWER TRIM/TILT SWITCH
Press UP to
raise bow.
Press DN to
lower bow.
Press UP to
raise bow.
Press DN to
lower bow.
(R2 type)
POWER TRIM/TILT SWITCH
REMOTE
CONTROL
LEVER
REMOTE
CONTROL
LEVER
Press UP to
raise bow.
