Honda BF90D User Manual

105
OPERATION

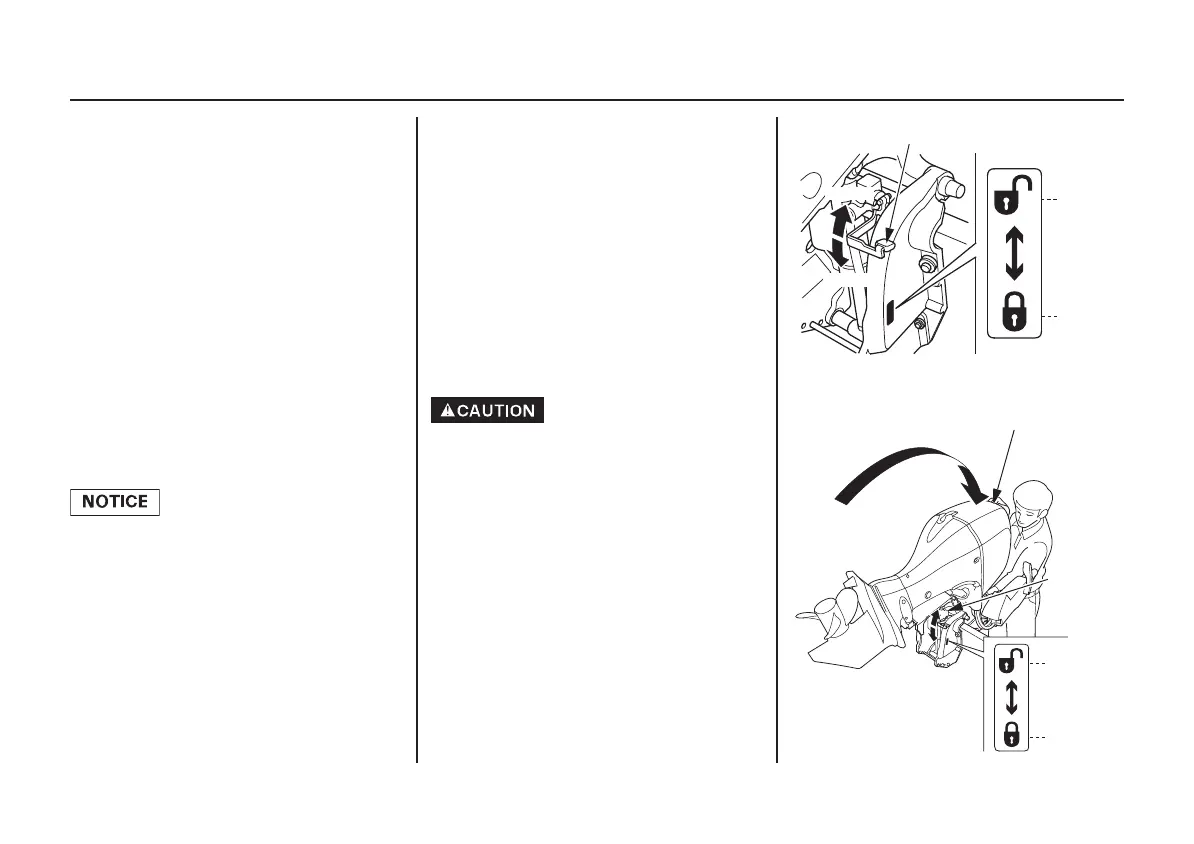

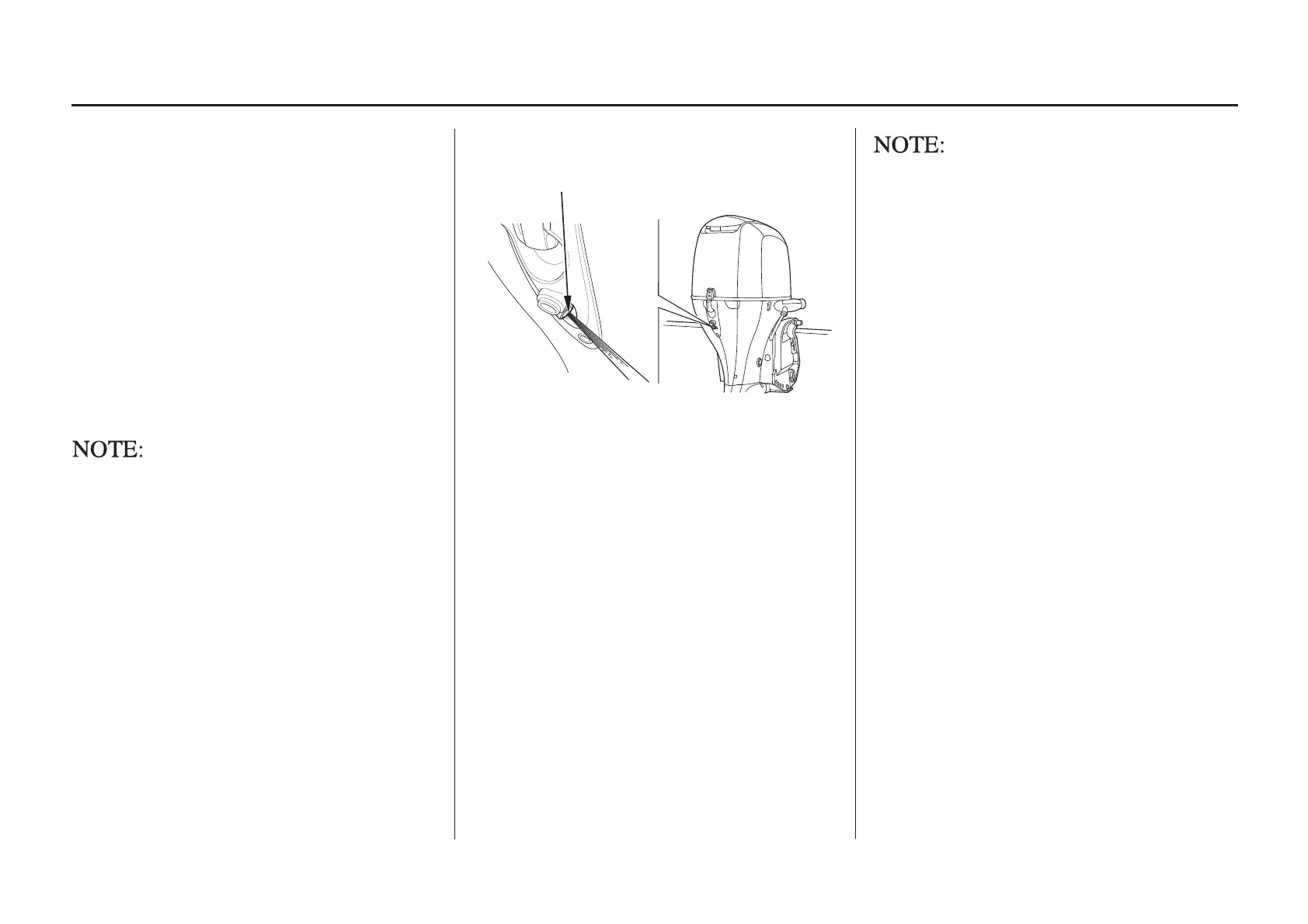

Tilting the Outboard Motor
(G type)
Tilt the outboard motor to prevent the
propeller and gear case from hitting
the bottom when the boat is beached
or stopped in shallow water.
1. Move the shift lever to the
NEUTRAL position and stop the
engine.
2. Move the tilt lever to the FREE
position. Hold the engine cover
grip and raise the outboard motor.
(The outboard motor can be tilted
stagelessly.)
Do not tilt up the outboard motor
using the tiller handle.
3. With the outboard motor tilted up
at the designated position, move
the tilt lever to the LOCK position
to lock the outboard motor in the
position.
4. To return the outboard motor, move
the tilt lever to the FREE position,
tilt up the outboard motor slightly
by holding the engine cover grip,
and lower the engine gently to the
designated position.
Set the tilt lever in the FREE/
LOCK positions securely.
FREE
LOCK
FREE
LOCK
ENGINE COVER GRIP
FREE
LOCK
TILT
LEVER
TILT LEVER
<;DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝㧤ᣣޓ㊄ᦐᣣޓඦᓟ㧞ᤨ㧟㧟ಽ

Honda BF90D Specifications

General

Bore & Stroke	73 mm x 89.4 mm
Horsepower	90 HP
Cooling System	Water Cooled
Starting System	Electric
Gear Ratio	2.33:1
Trim Range	-4° to +16°
Tilt Range	70°
Dry Weight	163 kg (359 lbs)
Lubrication	Wet Sump
Recommended Fuel	Unleaded Gasoline (86 Octane or higher)
Gear Shift	F-N-R
Steering	Remote
Trim Method	Power Trim and Tilt
Displacement	1496 cc
Exhaust	Through propeller
Alternator Output	44 Amps
Recommended Engine Oil	10W-30 FC-W
Shaft Length	20" or 25"
Engine Type	4-Stroke SOHC, 4 Cylinders
Fuel Delivery	Programmed Fuel Injection
