CONTROLS AND FEATURES (R type)
<Fast Idle Button> 
(R3 type)
Use the fast idle button and the
remote control lever to adjust the
engine speed without gearshift when
warming up the engine.
Pushing the fast idle button, turn the
remote control lever forward. Keep
turning the lever forward. The throttle
opens and the engine speed increases
after the lever passed the shift point.
Note that the gearshift mechanism
does not function when the fast idle
button is pushed once and then
released after the remote control lever
is moved.
Emergency Stop Switch
(R1 type)
(R2, R3 types)
Press the emergency stop switch to
stop the engine.
Emergency Stop Switch Lanyard/
Clip
The emergency stop switch lanyard is
provided to stop the engine
immediately in the event the operator
should fall overboard or away from
the controls.
The emergency stop switch clip must
be engaged with the emergency stop
switch or the engine will not start.
When the emergency stop switch clip
becomes disengaged with the
emergency stop switch the engine
will stop immediately.

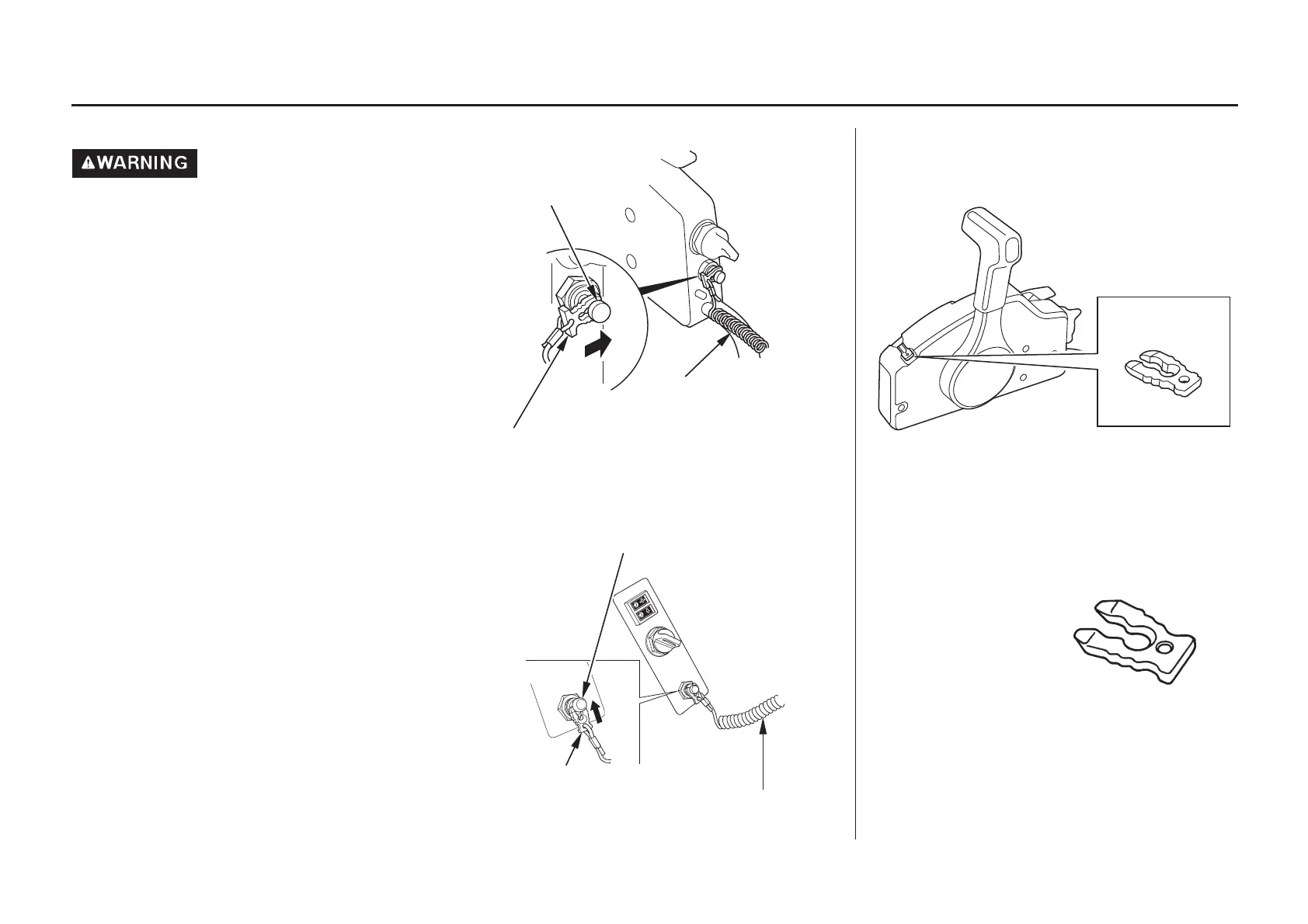

FAST IDLE BUTTON
NEUTRAL
FORWARD
REVERSE
Push
REMOTE
CONTROL
LEVER
STOP
EMERGENCY STOP SWITCH
EMERGENCY STOP
SWITCH
STOP
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP SWITCH CLIP
<;DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝㧤ᣣޓ㊄ᦐᣣޓඦᓟ㧞ᤨ㧟㧟ಽ

Honda BF90D Specifications

General

Bore & Stroke	73 mm x 89.4 mm
Horsepower	90 HP
Cooling System	Water Cooled
Starting System	Electric
Gear Ratio	2.33:1
Trim Range	-4° to +16°
Tilt Range	70°
Dry Weight	163 kg (359 lbs)
Lubrication	Wet Sump
Recommended Fuel	Unleaded Gasoline (86 Octane or higher)
Gear Shift	F-N-R
Steering	Remote
Trim Method	Power Trim and Tilt
Displacement	1496 cc
Exhaust	Through propeller
Alternator Output	44 Amps
Recommended Engine Oil	10W-30 FC-W
Shaft Length	20" or 25"
Engine Type	4-Stroke SOHC, 4 Cylinders
Fuel Delivery	Programmed Fuel Injection
