Honda BF90D User Manual

35

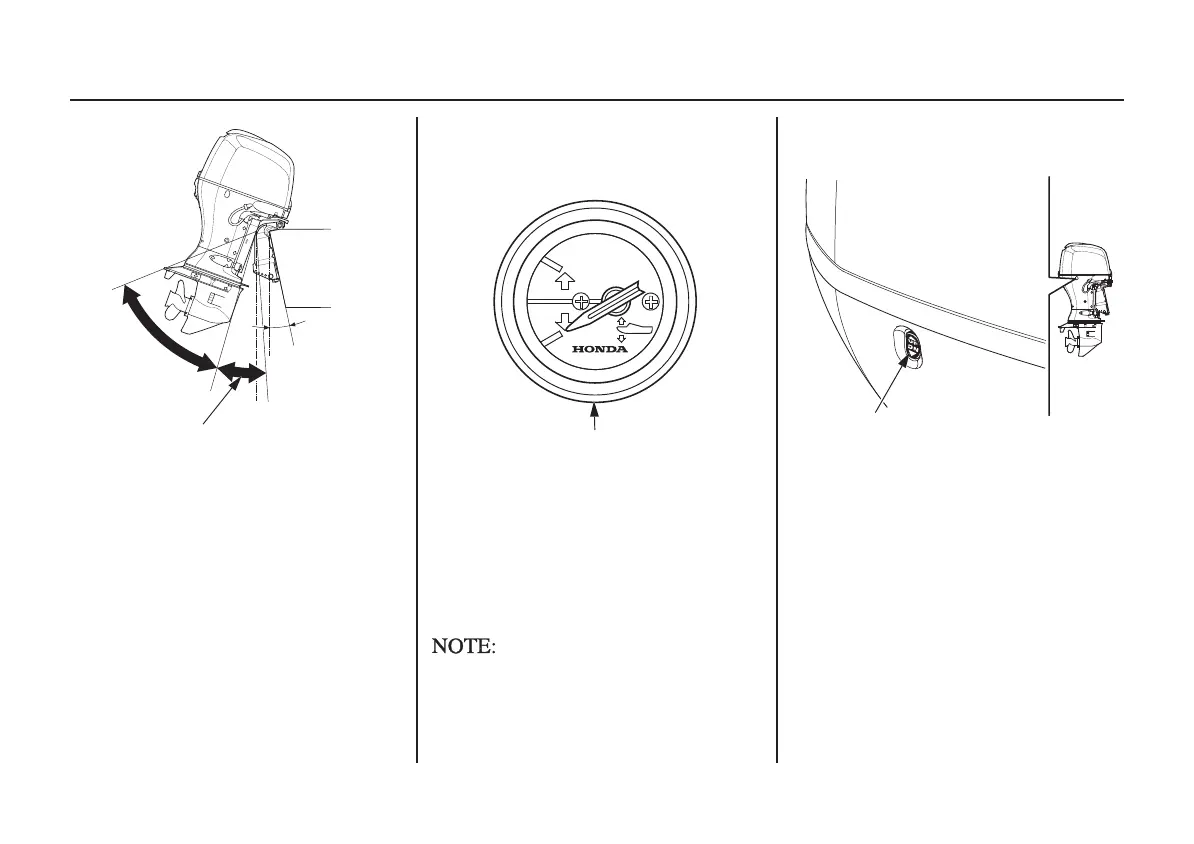

CONTROLS AND FEATURES (T type)

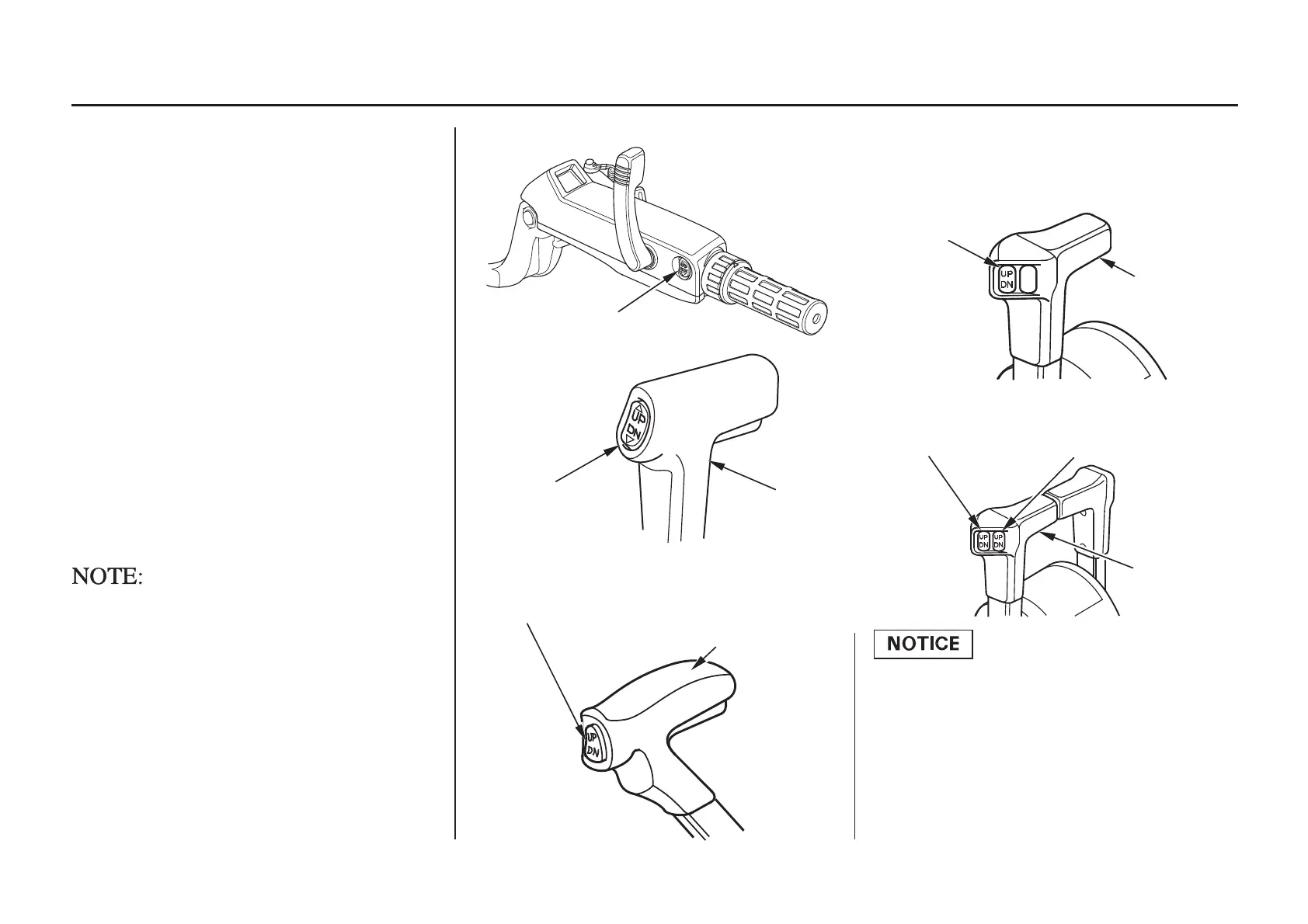

Power Tilt
Press the power trim/tilt switch to
adjust the outboard motor tilt angle 
of 16° to 68°.
By using the power trim/tilt switch
the operator can change the tilt angle
of the outboard motor for shallow
water operation, beaching, launching
from a trailer, or mooring.
Please tilt up simultaneously, when
you mount the dual type outboard
motor.
Trim Meter 
(equipped type or optional
equipment)
The trim meter has a range of
– 4° to
16° and indicates the trim angle of the
outboard motor. Refer to the trim
meter when using the power trim/tilt
switch to achieve proper boat
performance.
The outboard motor trim angle 
of
– 4° to 16° is the angle when the
outboard motor is installed on the
boat at 12°.
Power Tilt Switch 
(outboard motor pan)
The power tilt switch located on the
outboard motor pan is a convenience
switch for tilting the outboard motor
for trailering, or performing outboard
maintenance. This power tilt switch
should only be operated with the boat
being stopped and engine off.
TRIM ANGLE
68°
12°
0°
- 4°
TILT
ANGLE
16°
(when transom angle is 12°)
0° 
(VERTICAL LINE)
TRIM METER
POWER TILT SWITCH
<;DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝㧤ᣣޓ㊄ᦐᣣޓඦᓟ㧞ᤨ㧟㧟ಽ

Honda BF90D Specifications

General

Bore & Stroke	73 mm x 89.4 mm
Horsepower	90 HP
Cooling System	Water Cooled
Starting System	Electric
Gear Ratio	2.33:1
Trim Range	-4° to +16°
Tilt Range	70°
Dry Weight	163 kg (359 lbs)
Lubrication	Wet Sump
Recommended Fuel	Unleaded Gasoline (86 Octane or higher)
Gear Shift	F-N-R
Steering	Remote
Trim Method	Power Trim and Tilt
Displacement	1496 cc
Exhaust	Through propeller
Alternator Output	44 Amps
Recommended Engine Oil	10W-30 FC-W
Shaft Length	20" or 25"
Engine Type	4-Stroke SOHC, 4 Cylinders
Fuel Delivery	Programmed Fuel Injection
