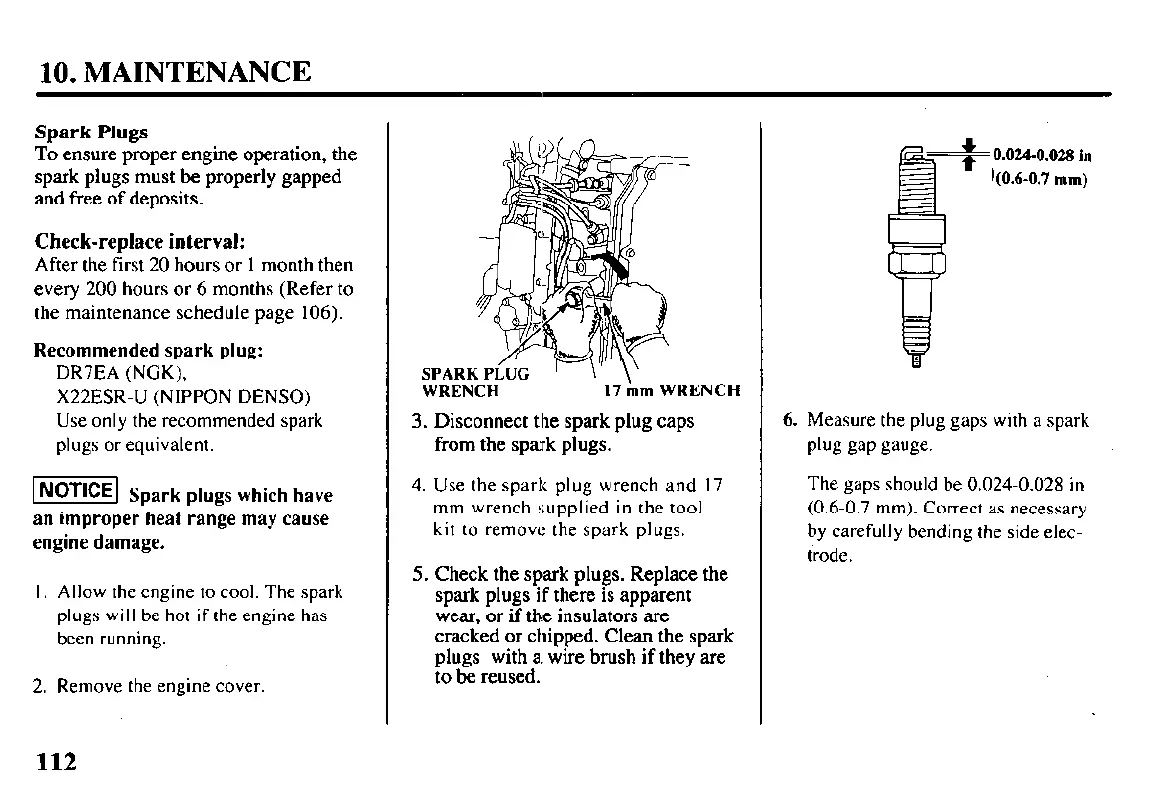

10. MAINTENANCE
Spark Plugs
To ensure proper engine operation, the
spark plugs must be properly gapped
and free of deposits.
Check-replace interval:
After the first 20 hours or I month then
every 200 hours or 6 months (Refer to
the maintenance schedule page 106).
Recommended spark plug:
DR7EA (NGK),
X22ESR-U (NIPPON DENSO)
Use only the recommended spark
plugs or equivalent.
[ Spark plugs which have
an improper heat range may cause
engine damage.
I. Allow the engine to cool. The spark
plugs will be hot if the engine has
been running.
2. Remove the engine cover.
SPARK PiUG ’ \ \ ’
WRENCH
17 mm WRENCH
3. Disconnect the spark plug caps
from the spark plugs.
4. Use the spark plug wrench and I7
mm wrench supplied in the tool
kit to remove the spark plugs.
5. Check the spark plugs. Replace the
spark plugs if there is apparent
wear, or if the insulators are
cracked or chipped. Clean the spark
plugs with a. wire brush if they are
to be reused.
0.024-0.028
in
((0.6-0.7
mm)
6. Measure the plug gaps with a spark
plug gap gauge.
The gaps should be 0.024-0.028 in
(0.6-0.7 mm). Correct as necessary
by carefully bending the side elec-
trode.
112
