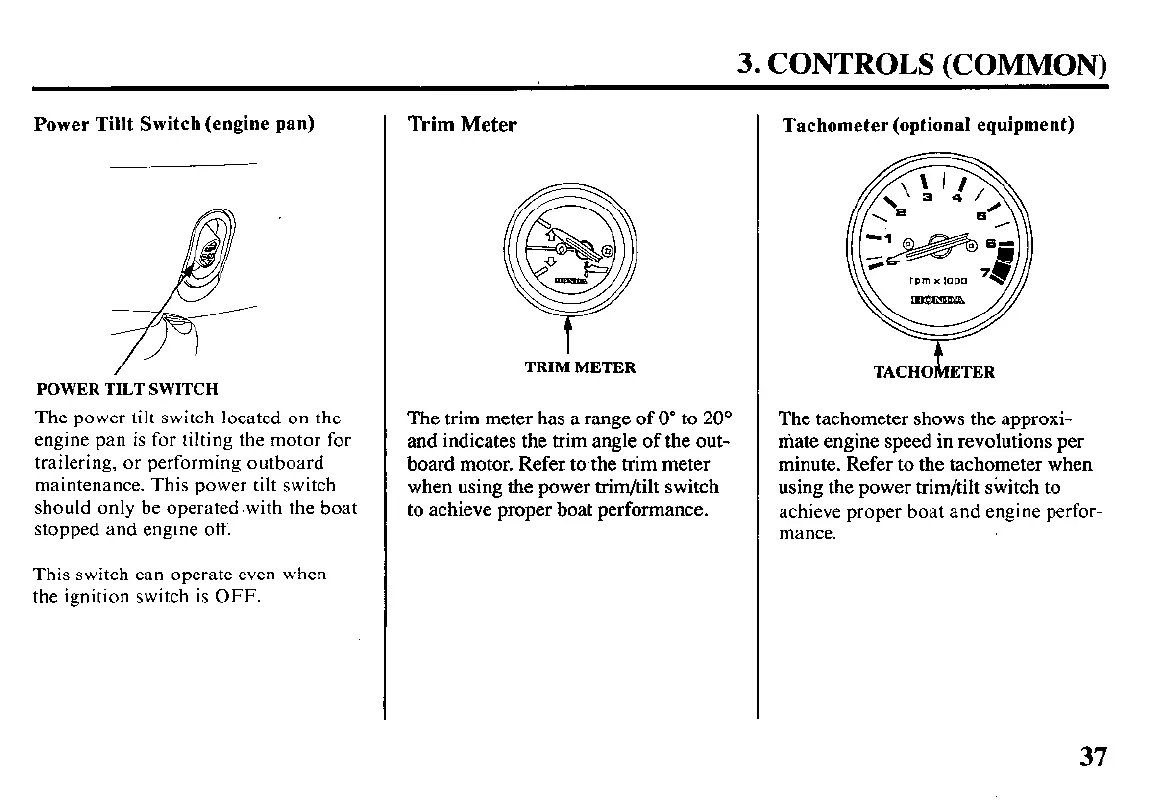

3. CONTROLS (COMMON)
Power Tillt Switch (engine pan)
POWER TILT SWITCH
The power tilt switch located on the
engine pan is for tilting the motor for
trailering, or performing outboard
maintenance. This power tilt switch
should only be operated.with the boat
stopped and engine off.
This switch can operate even when
the ignition switch is OFF.
Trim Meter
TRIM METER
The trim meter has a range of 0” to 20”
and indicates the trim angle of the out-
board motor. Refer to-the trim meter
when using the power trim/tilt switch
to achieve proper boat performance.
Tachometer (optional equipment)
t TACHO ETER
The tachometer shows the approxi-
niate engine speed in revolutions per
minute. Refer to the tachometer when
using the power trim/tilt &itch to
achieve proper boat and engine perfor-
mance.
