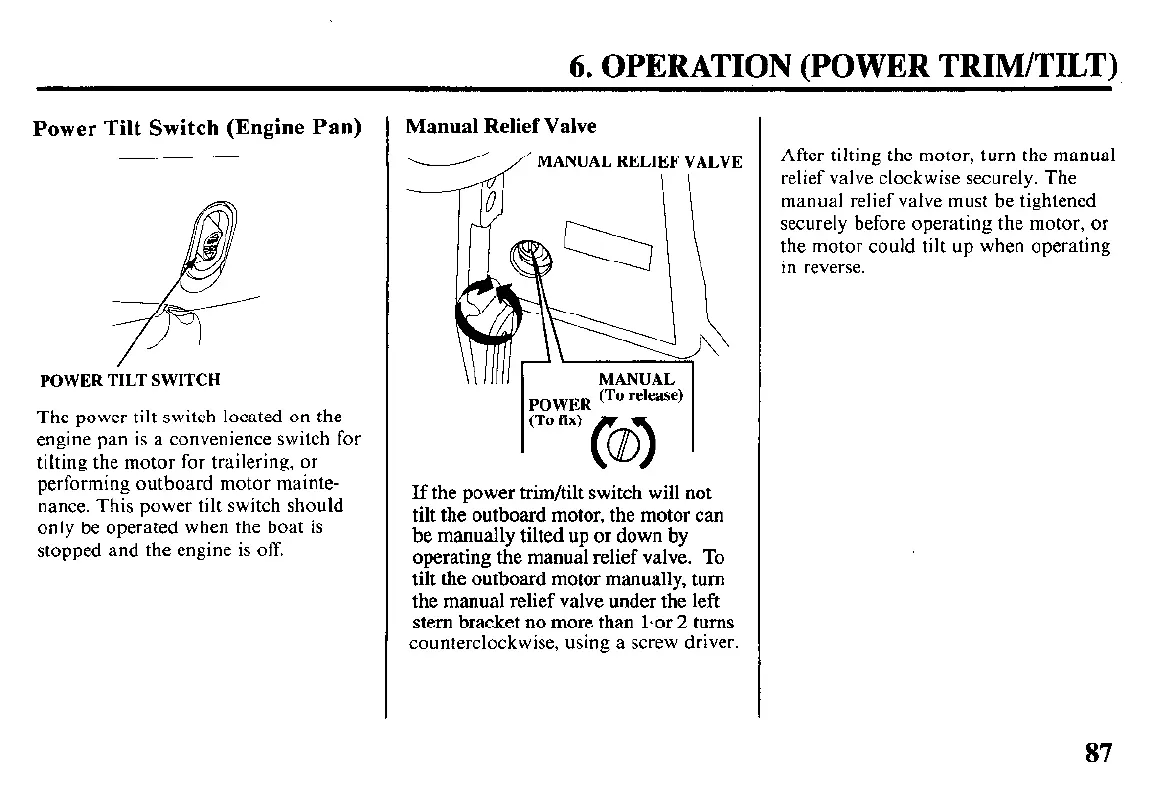

6. OPERATION (POWER TRIM/TILT)
Power Tilt Switch (Engine Pan)
POWER TILT SWITCH
The power tilt switch located on the
engine pan is a convenience switch for
tilting the motor for trailering, or
performing outboard motor mainte-
nance. This power tilt switch should
only be operated when the boat is
stopped and the engine is off.
Manual Relief Valve
MANUAL RELI
E
\\ 11111
MANUAL
POWER (To
release)
(To fix)
If the power trim/tilt switch will not
tilt the outboard motor, the motor can
be manually tilted up or down by
operating the manual relief valve. To
tilt the outboard motor manually, turn
the manual relief valve under the left
stem bracket no more than l-or 2 turns
counterclockwise, using a screw driver.
After tilting the motor, turn the manual
relief valve clockwise securely. The
manual relief valve must be tightened
securely before operating the motor, or
the motor could tilt up when operating
in reverse.
