10. MAINTENANCE
Replacement
1. Stop the engine.
2. Remove the engine cover.
3. Pull the blown fuse out of the clip.
4. Push a new fuse into the clip.
Spare fuses are located in each
fuse holder. If the spare fuse is not
available, the motor will need to be
started with the pull starter rope
(refer to the emergency start procedure
page 69).

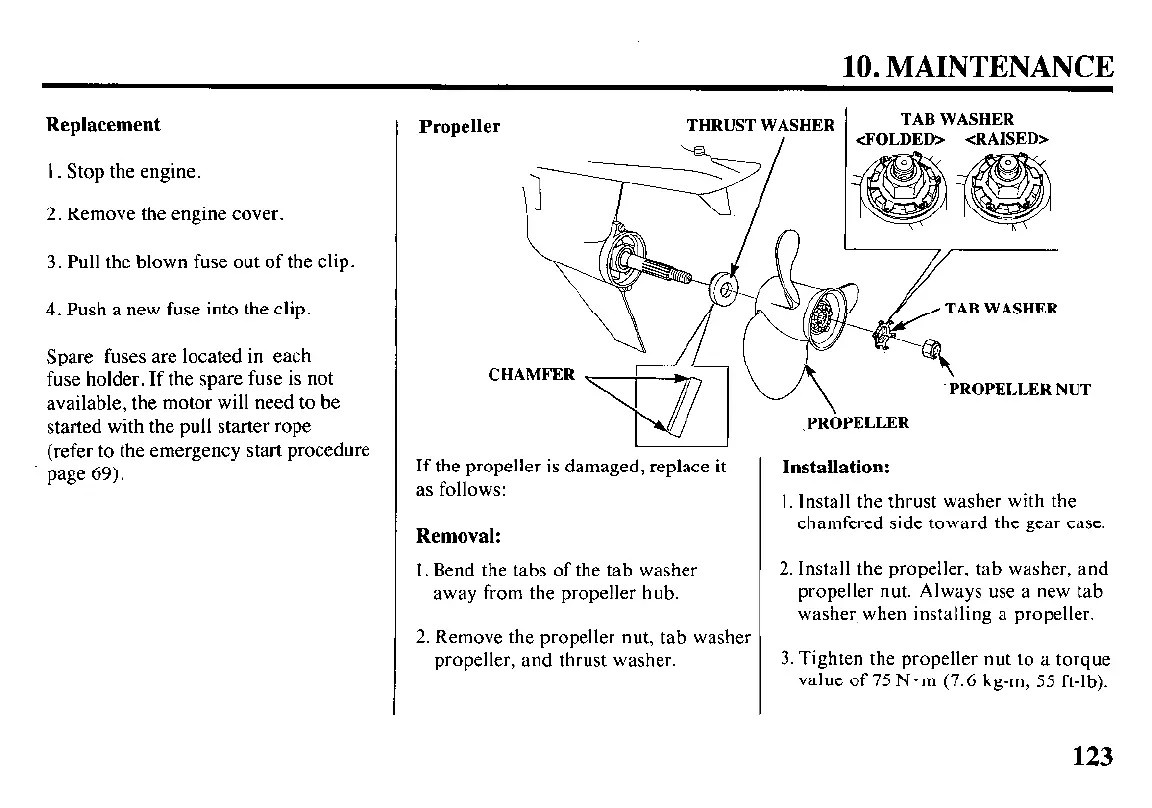

Propeller
THRUST WASHER
TAB WASHER
I
(FOLDED> <RAISED>
TAB WASHER
PROPELLER NUT
1
I
If the propeller is damaged, replace it
as follows:
Removal:
I. Bend the tabs of the tab washer
away from the propeller hub.
2. Remove the propeller nut, tab washer
propeller, and thrust washer.
,PRbPELLER
Installation:
I. Install the thrust washer with the
chamfered side toward the gear case.
2. Install the propeller, tab washer, and
propeller nut. Always use a new tab
washer when installing a propeller.
3. Tighten the propeller nut to a torque
value of 75 N-m (7.6 kg-m, 55 ft-lb).
123
