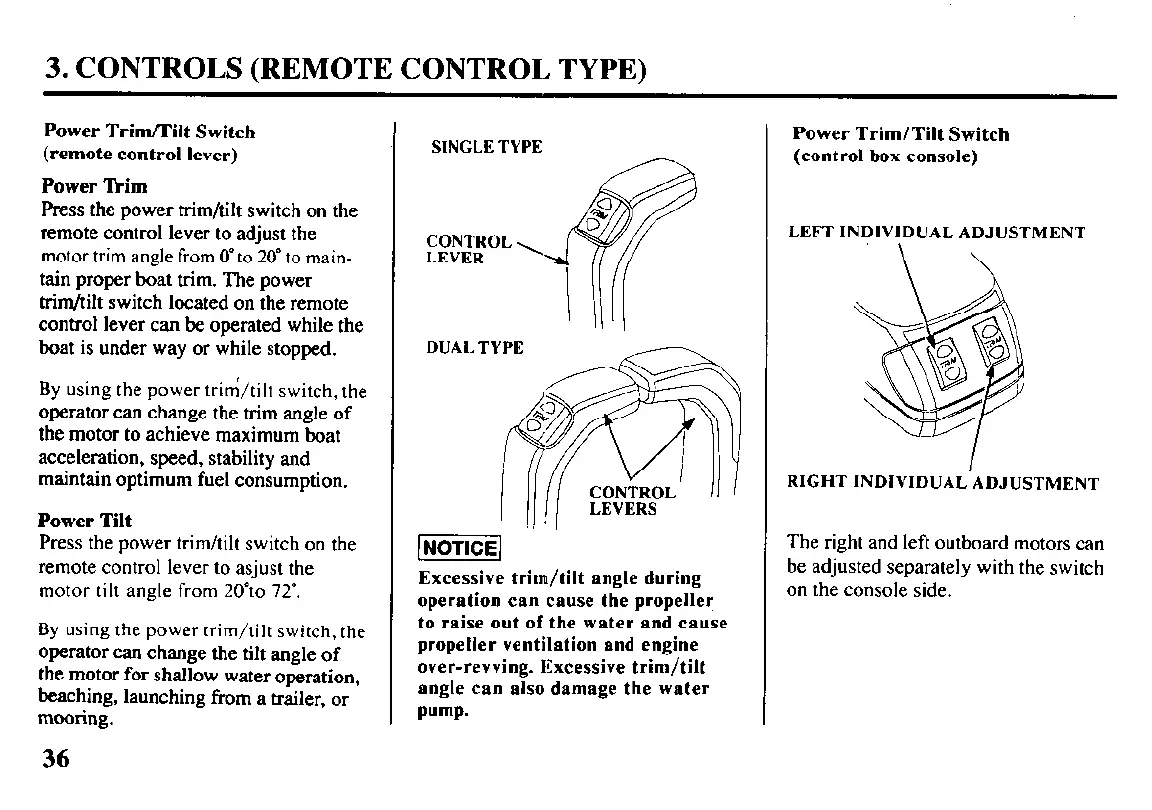

3. CONTROLS (REMOTE CONTROL TYPE)
Power Trim/Tilt Switch
(remote control lever)
Power Dim
Press the power trim/tilt switch on the
remote control lever to adjust the
motor trim angle from 0” to 20” to main-
tain proper boat trim. The power
trim/tilt switch located on the remote
control lever can be operated while the
boat is under way or while stopped.
By
using the power tri&tilt switch, the
operator can change the trim angle of
the motor to achieve maximum boat
acceleration, speed, stability and
maintain optimum fuel consumption.
Power Tilt
Press the power trim/tilt
switch on the
remote
control lever to asjust the
motor tilt angle from 2030 72”.
By using the power trim/tilt switch, the
operator can change the tilt angle of
the motor for shallow water operation,
beaching, launching from
a
trailer,
or
mooring.
36
SINGLE TYPE
CONTROL
LEVER
DUAL TYPE
1 NOTICE]
Excessive trim/tilt angle during
operation can cause the propeller
to raise out of the water and cause
propeller ventilation and engine
over-revving. Kxcessive trim/tilt
angle can also damage the water
pump.
Power Trim/Tilt Switch
(control box console)
LEFT INDIVIDUAL ADJUSTMENT
RIGHT INDIVIDUAL’ADJUSTMENT
The right and
left outboard motors can
be adjusted separately with the switch
on the console side.
