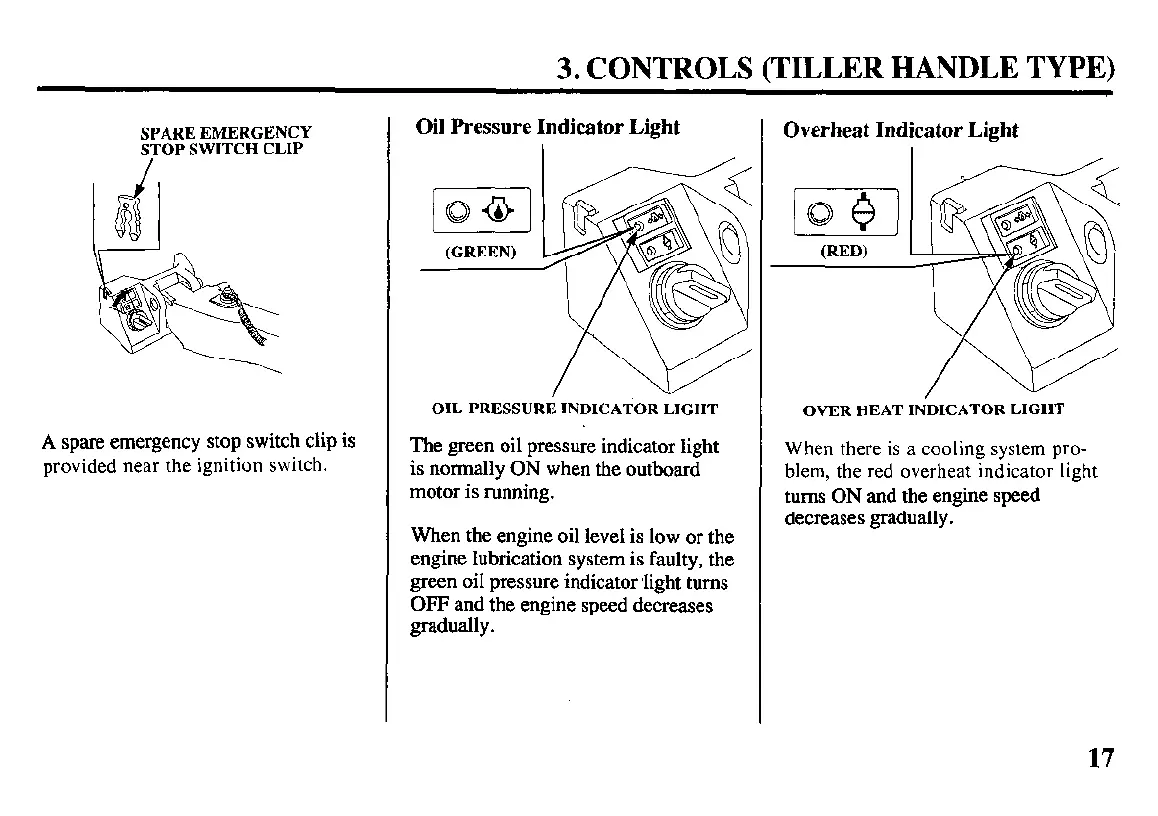

3. CONTROLS (TILLER HANDLE TYPE)
SPARE EMERGENCY
STOP SWITCH CLIP
A spare emergency stop switch clip is
provided near the ignition switch.
Oil Pressure Indicator Light
(GREEN)
OIL PRESSURE INDICATOR LIGHT
The green oil pressure indicator light
is normally ON when the outboard
motor is running.
When the engine oil level is low or the
engine lubrication system is faulty, the
green oil pressure indicator #light turns
OFF and the engine speed decreases
gradually.
Overheat Indicator Light
[-G-J
(RED)
OVER HEAT INDICATOR LIGHT
When there is a cooling system pro-
blem, the red overheat indicator light
turns ON and the engine speed
decreases gradually.
17
