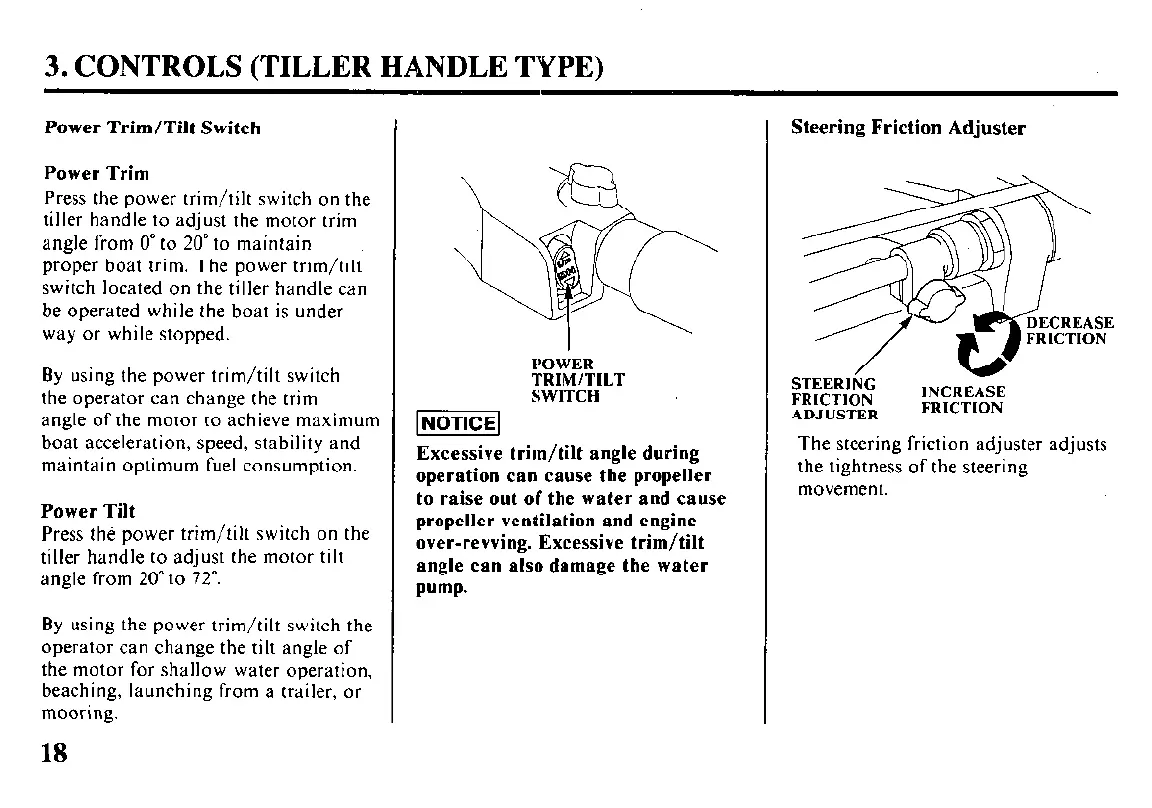

3. CONTROLS (TILLER HANDLE TYPE)
Power Trim/Tilt Switch
Power Trim
Press the power trim/tilt switch on the
tiller handle to adjust the motor trim
angle from 0” to 20” to maintain
proper boat trim. The power trim/tilt
switch located on the tiller handle can
be operated while the boat is under
way or while stopped.
By using the power trim/tilt switch
the operator can change the trim
angle of the motor to achieve maximum
boat acceleration, speed, stability and
maintain optimum fuel consumption.
Power Tilt
Press the power trim/tilt switch on the
tiller handle to adjust the motor tilt
angle from 20” to 72”.
By using the power trim/tilt switch the
operator can change the tilt angle of
the motor for shallow water operation,
beaching, launching from a trailer, or
mooring.
18
POWER
TRIM/TILT
SWITCH
Excessive trim/tilt angle during
operation can cause the propeller
to raise out of the water and cause
propeller ventilation and engine
over-revving. Excessive trim/tilt
angle can also damage the water
pump-
Steering Friction Adjuster
The steering friction adjuster adjusts
the tightness of the steering
movement.
