XNX Universal Transmitter
Installation and Operation
83
Once the values for Path Length have been set, use the switch
to highlight the ‘ü’ on the right side of the display. Use the
✓
to
accept the changes.

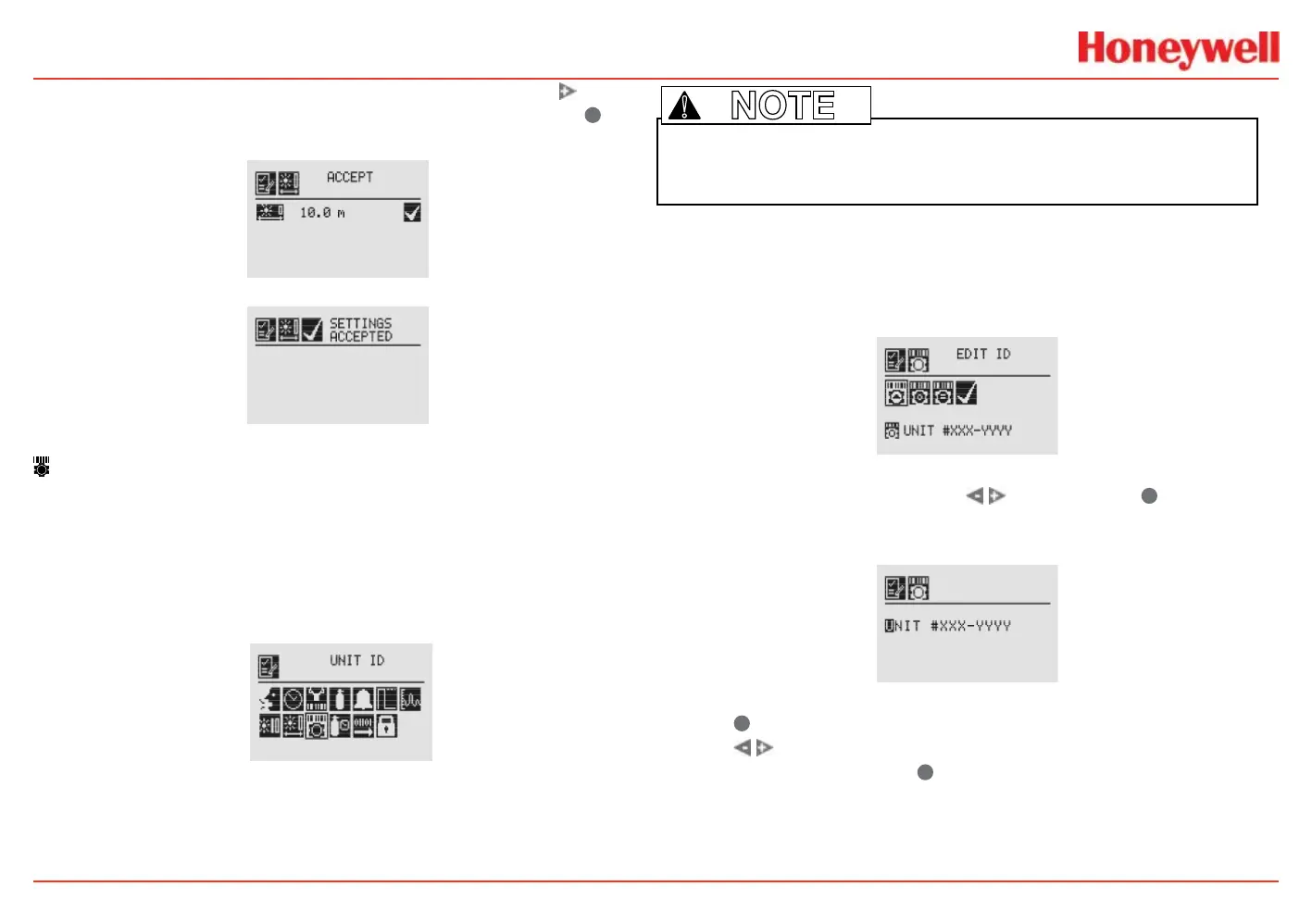

Figure 121. Accepting Path Length Changes
Figure 122. Path Length Changes Accepted screen
Unit ID
The Unit ID option allows a unique unit ID of up to 18 characters
to be set for each transmitter. This character string can be
broadcast over any of the supported communication options,
providing a means to create a unique identication for each
transmitter for accurate reporting. Available characters are A-Z,
a-z, 0-9 and special characters ? ! * % ( ) : & / , # + -
Figure 123. Unit ID menu
Note: The XNX Unit ID is not the same as the HART tag in XNX applications using
HART protocol.
Edit ID
Each transmitter is assigned a default Unit ID at the factory. The
Edit ID menu allows the assigned ID to be modied.
Figure 124. Edit Unit ID screen
From the Edit ID Screen, use the switches and
✓
to select
Edit ID. The current Unit ID is displayed. When editing an existing
ID, the list of available characters begins at the value displayed.
Figure 125. Editing the Unit ID
Use the
✓
switch to highlight the rst character to be changed.
Use the switches to decrease or increase the value until the
desired value appears. Use
✓
to accept the new value and move
to the next character. Repeat for each character to be changed.
The Unit ID can be up to18 characters long.
