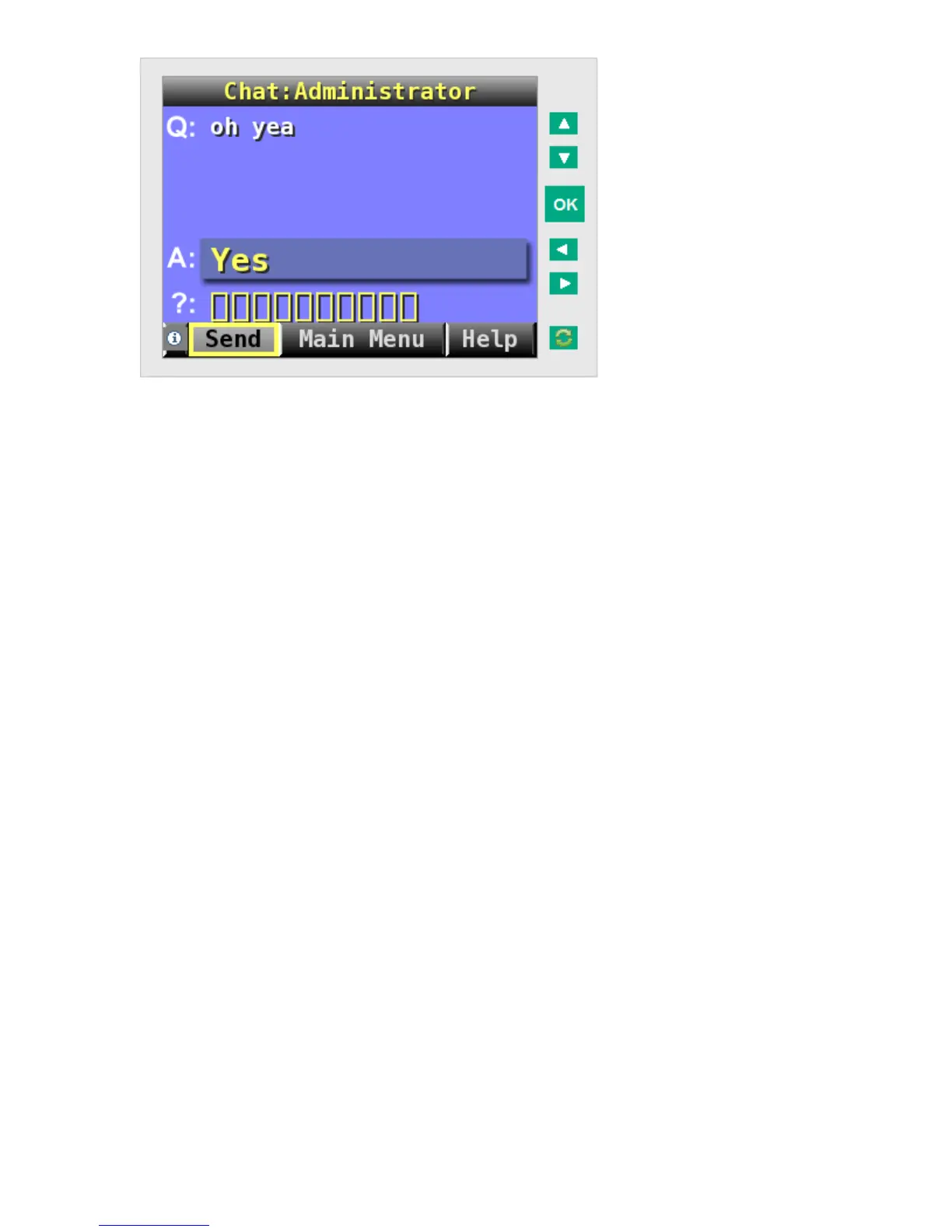

Insight Display errors
The enclosure installation is successful when all errors are corrected. The errors in the following sections
are specific to installation and initial configuration of the enclosure.
The following types of errors can occur when installing and configuring the enclosure:
• Power errors
• Cooling errors
• Location errors
• Configuration errors
• Device failure errors
When the enclosure UID LED is off, the Insight Display is illuminated amber when any error condition
exists. The navigation bar displays the following selections when an error condition exists:
• Health summary icon—Displays the Health Summary screen
• Fix This—Suggests corrective action to clear the current error
• Next Alert—Displays the next alert, or if none exist, displays the Health Summary screen
• Previous Alert—Displays the previous alert
Power errors
Power errors can occur because of insufficient power to bring up an enclosure. Power errors can occur on
server blades or interconnect modules.
To correct a power error, do the following:
Procedure
1. Use the arrow buttons to navigate to Fix This, and then press OK.
2. Review and complete the corrective action suggested by the Insight Display. Use the OA tools for
additional troubleshooting.
Cooling errors
Cooling errors occur when fans are missing from the enclosure, or when the existing fans are not installed
in an effective configuration. Cooling errors can occur on server blades, interconnect modules, XFMs, and
OAs.
Insight Display errors 119
