• To record new values, click Save.
• To execute the Deployment Settings package on the server, click Deploy.
• To go back to the previous page, click Manage.
• To exit Deployment Settings screens, click Exit.
The following sections define the available Deployment Settings categories.

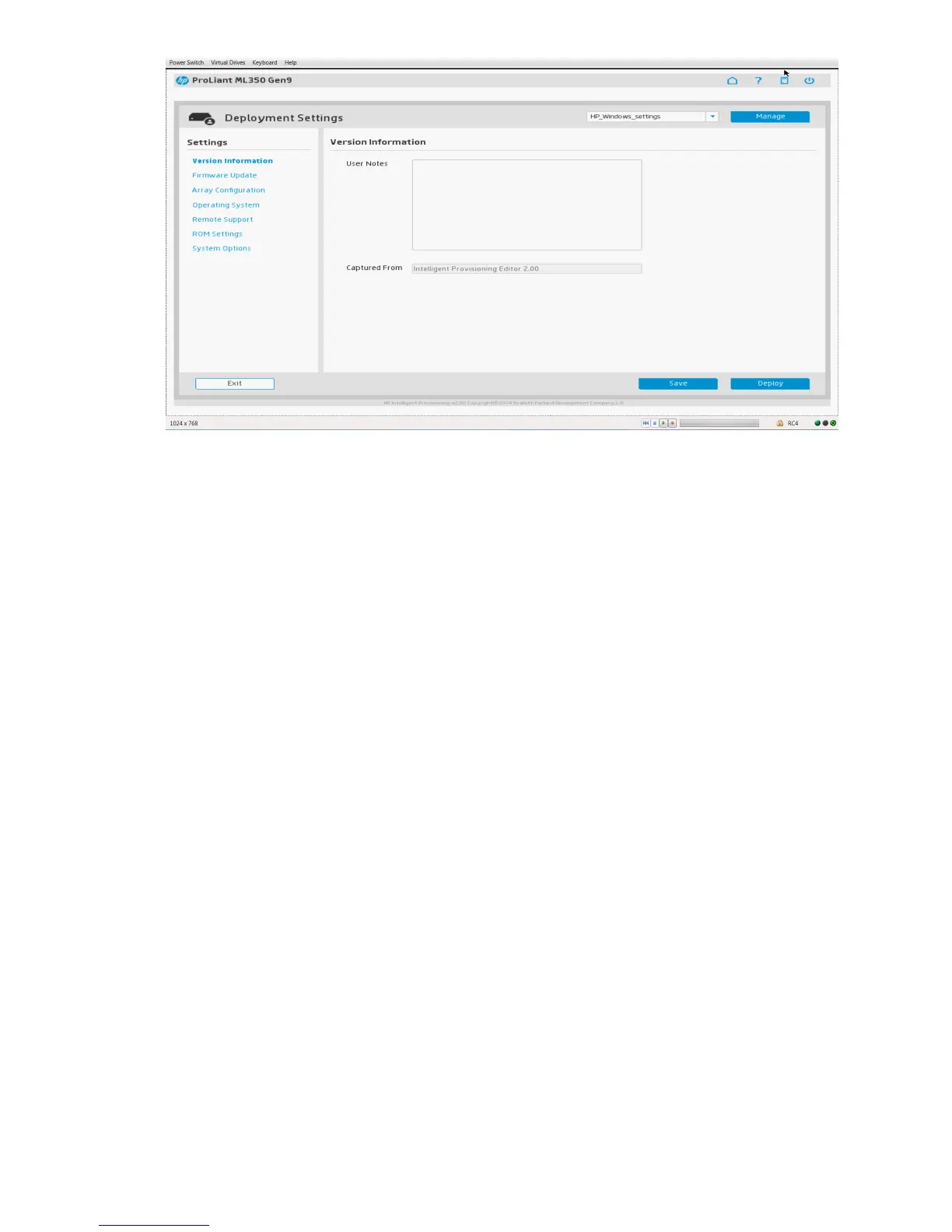

Entering version information
Use the Version Information screen to enter any type of user-defined identifying information that
you want to assign to the deployment.
Entering firmware update settings
Use the Firmware Update screen to enter information about performing firmware updates as part
of the deployment installation process.
Options include:
• No Update—System firmware is not updated during the deployment installation process.
• hp.com—During the deployment installation process, the system uses the server's Internet
connections to obtain the latest firmware from the HP website and install it on the server.
• Local Repository—The URL of the local repository where the firmware has previously been
uploaded.
Entering array configuration settings
Use the Array Configuration screen to enter RAID settings.
1. Select a RAID Level.
2. Select a Stripe Size.
3. Select Read and Write Cache ratios. Make sure that these values total 100%.
Entering operating system information
Use the Operating System screens to enter OS information and installation settings. The included
fields are the same as those in the Recommended installation method.
Not all source media types are supported for every OS.
Using Deployment Settings 41
