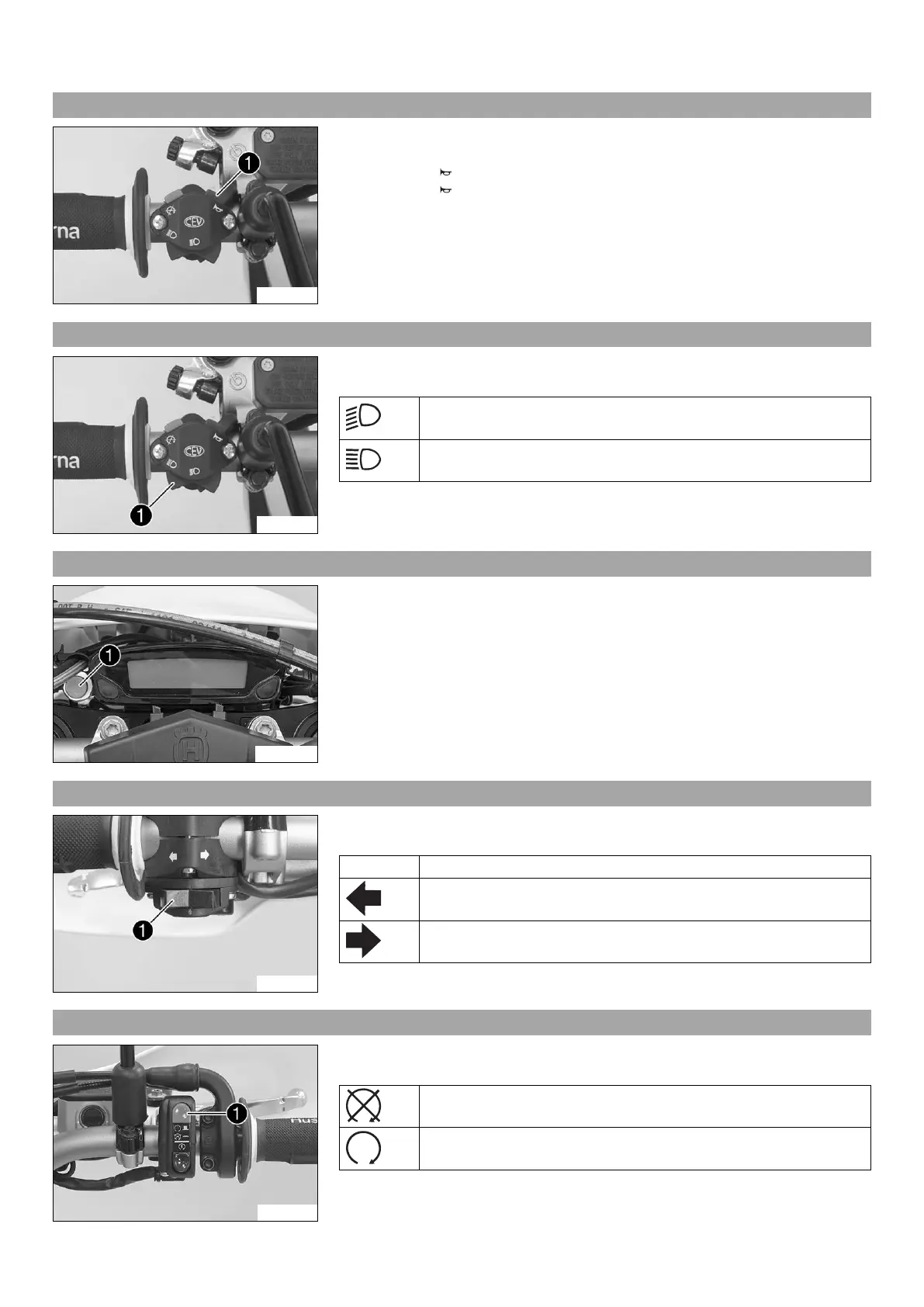

6 CONTROLS 15
6.6 Horn button (FE EU/AU)
H00168-11
The horn button
is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – the horn is actuated in this position.
6.7 Light switch (FE EU/AU)
H00168-12
Light switch
is fitted on the left side of the handlebar.
Possible states
Low beam – Light switch is in the central position. In this position, the
low beam and tail light are switched on.
High beam – Light switch is turned to the left. In this position, the high
beam and the tail light are switched on.
6.8 Light switch (FE US)
M00355-10
Light switch
is located to the left of the speedometer.
Possible states
• Light off – Light switch is pressed in up to the stop. In this position, the light is
switched off.
• Light on – Light switch is pulled out to the stop. In this position, the low beam
and tail light are switched on.
6.9 Turn signal switch (FE EU/AU)
H00169-10
Turn signal switch
is fitted on the left side of the handlebar.
Possible states
Turn signal light off – Turn signal switch is in the central position.
Turn signal light, left, on – Turn signal switch is turned to the left.
Turn signal light, right, on – Turn signal switch is turned to the right.
6.10 Emergency OFF switch (FE AU)
S00891-10
The emergency OFF switch
is fitted on the right side of the handlebar.
Possible states
Ignition off – the ignition circuit is open in this position, the engine
goes out if it was running, or does not start if it was off.
Ignition on – the ignition circuit is closed in this position and the
engine can be started.
