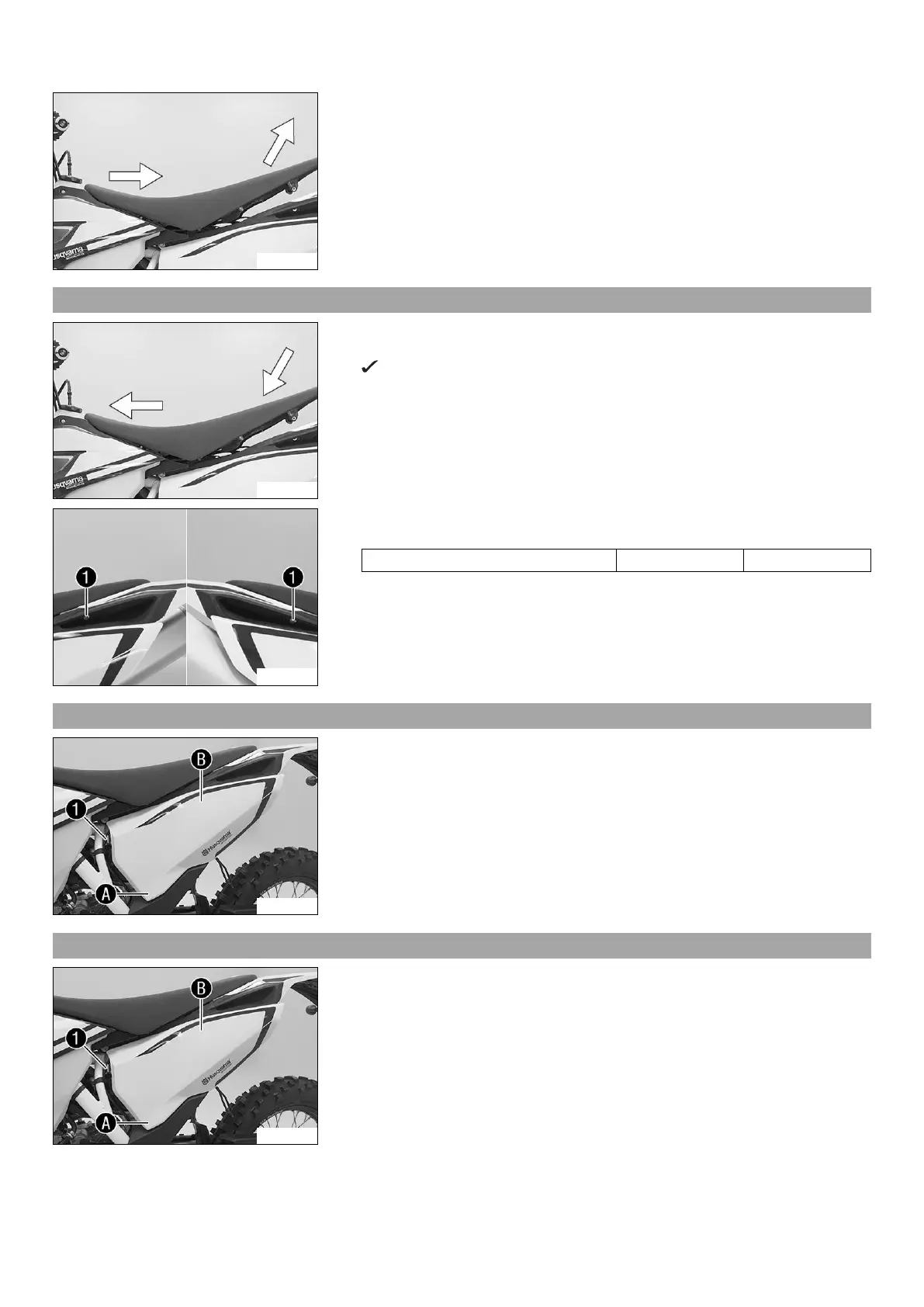

12 SERVICE WORK ON THE CHASSIS 50
H00183-11
– Raise the rear of the seat, push the seat back, and lift it off.
12.19 Mounting the seat
H00183-10
– Mount the front of the seat on the collar bushing of the fuel tank, lower the seat at
the rear, and simultaneously push the seat forward.
The seat is correctly engaged.
H00182-10
–
Mount and tighten the seat fixing screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
12.20 Removing the air filter box lid
H00213-10
–
Release catch
, pull off the air filter box lid sideways in areas
and
and
remove toward the rear.
12.21 Installing the air filter box lid
H00213-10
–
Position the air filter box lid and tab
. Engage the air filter box lid in areas
and
.
–
Engage tab
.
